360Degree Beam Round Shaped Silicone neon LED Flex tube 15W/m
1500LM/M max 20Meters/piece
The IP68 360° Beam 3D Bending Round Neon LED Flex Tube Strip Light
offers unparalleled flexibility and durability with its innovative
design. Featuring a round shape and 360° beam angle, it delivers
uniform, high-quality illumination at 15W/m and a brightness of
1500 lm/m. Its 3D bendable structure (minimum bending diameter:
120mm) allows for intricate designs, while the IP68 waterproof
rating ensures reliability in underwater, outdoor, and demanding
environments. Perfect for architectural accents, pool lighting, and
creative installations, this neon LED strip combines performance,
efficiency, and style.
360Degree Beam Round Neon LED Flex tube Features:
- 360° Beam Angle: Provides uniform illumination in all directions, ideal for
versatile lighting applications.
- 3D Bendable Design: Flexible with a minimum bending diameter of 120mm, enabling
intricate and creative installations.
- High Brightness: Delivers up to 1500 lm/m with energy-efficient performance at 15W/m.
- Durable Round Silicone Housing: Ensures long-lasting flexibility and impact resistance.
- Waterproof Rating: IP68-certified, suitable for underwater, outdoor, and harsh environments.
- Customizable Cutting Units: Adjustable at 100mm (24 LEDs) intervals for tailored lengths.
- Multiple Light Options:
- CCT range: 2200K to 6500K (Warm to Cool White)
- Single colors: Red, Blue, Green
- Extended Lengths or max length per run :
- Single-end feed: Up to 10 meters
- Double-end feed: Up to 20 meters
- Compatibility: Supports PWM, DALI, 0-10V, TRIAC, and DMX512 dimming protocols for advanced control.
- Operating Temperature: Functions reliably between -40°C to 55°C for diverse environments.
Benefits:
- Design Flexibility: Easily adapts to complex layouts, curves, and creative lighting
projects.
- Seamless Illumination: 360° beam eliminates dark spots, enhancing lighting quality and
aesthetics.
- Energy Efficiency: Low power consumption with high brightness output reduces energy
costs.
- Weatherproof Performance: Reliable in wet, submerged, or outdoor installations, including
pools and fountains.
- Customizable Installation: Tailored cutting units and mounting accessories simplify setup
and integration.
- Long Lifespan: Up to 70,000 hours (L70), reducing maintenance and replacement costs.
- Safe and Reliable: Low-voltage operation (24V DC) ensures user safety and stability.
- Versatile Applications: Perfect for architectural highlights, signage, decorative
lighting, and underwater illumination.
By combining cutting-edge technology with robust design, this neon
LED flex tube delivers superior performance for both functional and
decorative lighting needs.
Round Neon LED Flex Rope Light Technical Parameters:
| Item Number: | SF-24-2835-XX (XX stands for different color or CCT) |
| Input voltage | 24VDC |
| Power Consumption | 15W/Meter |
| Luminous Flux(LM/meter) | 1500LM/Meter (@5700K) |
| LED Type | SMD 2835 LED |
| CRI | Ra>80, Ra>90 |
| LED Quantity | 240LEDs/m |
| Cutting unit | 24LEDs |
| Light Color or CCT(K) | 2200~6500K, Red, Blue, Green |
| Cutting unit length | 100mm |
| Minimum bend diameter | Min. Dia. 120mm , and 3D bending |
| Max Run length | Single feed: 10meters
double feed: 20meters |
| Beam angle | 360degree |
| IP Rate | IP68 waterproof |
| Customized Made Length | Customized Made Length for Round shaped neon LED flex rope light is
available |
| Lumen maintenance | 70,000 Hours L70 @ 25°C
50,000 Hours L70 @ 50°C |
| Operating temperature | -40°C to 55°C |
| Warranty | 5 Years, or 2Years when underwater use |
| Certificates | CE, RoHS |
IP68 Mould Injection Connectors:
 |  |  |

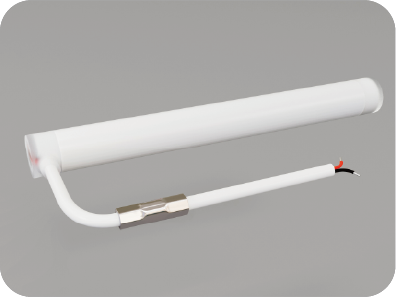

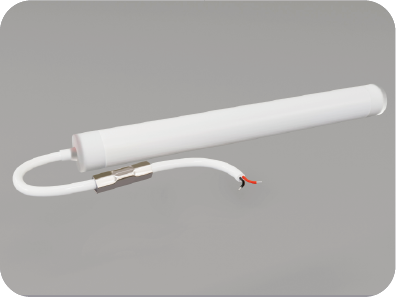

| Direct End Entry Connector | Side Entry Connector | End cap |
IP67 DIY Assemble Connectors
| DIY Snap Front Connector (Solder Free)
Item Number: DIY-SN-FR-24-A
Cable Length: 0.3m
Detailed Items:- 1pc front connector,
- 1pc rubber gasket,
- 1pc aluminum clip
- 2pcs screws
|
 | DIY End Cap Connector (Solder Free)
Item Number: DIY-SN-END-24
Detailed Items:- 1pc rubber gasket,
- 1pc aluminum End cap,
- 2pcs screws
|
Optional Mounting Accessories:
Aluminum Alloy Base Mounting Accesories Kit:
| Item No.: SF24-AAB-TLR
Material: aluminum alloy
Detailed Items:- 1pc aluminum alloy base,
- 1pc telescopic lifting rod,
- 2pcs plastic anchor,
- 1pcs plastic clips(3cm),
- 4pcs screws and etc. accessories
|
Metal Base Mounting Accessories Kit:
| Item No.: SF24-MB-TLR
Detailed Items:- 1pc metal base,
- 1pc telescopic lifting rod,
- 2pcs plastic anchor,
- 1pcs plastic clips(3cm),
- 4pcs screws and etc accessories
|
Transparent Plastic Mounting Channel:
| Item No.: PC24S01-T-100
Material: PC
Length: 1m
Type: Clear
Hole: 2 |

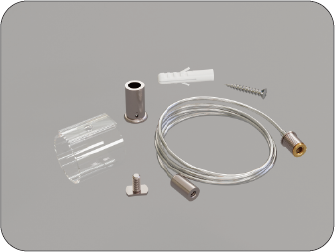

Pendant Accessories:
| Item No.: SF24-PA
Detailed Items:- 1set pendant wire rope,
- 1pcs plastic anchor,
- 1pcs plastic clips(3cm),
- 1pcs screws and etc accessories
|
Mounting Plastic clip
| Item No.: PC24S01-T-03
Material: PC
Length: 3cm
Color: Clear
Hole: 1 |
Mounting Connective plastic clip
| Item No.: PC24S02-T-05
Material: PC
Length: 5cm
Color: Clear
Hole: 3
Screw:3pcs |
FAQ – 360° Beam Round Shaped Silicone LED Neon Flex Tube Light
1. What makes this round shaped LED neon flex tube unique?
This neon flex tube features a 360° beam angle for uniform lighting in all directions and a round silicone design that ensures flexibility, durability, and resistance to harsh
environments. Its IP68 rating makes it suitable for underwater and outdoor use.
2. How flexible is the neon LED tube, and can it bend in all
directions?
The tube is 3D bendable with a minimum bending diameter of 120mm, allowing it to curve and twist freely to suit intricate designs
and layouts.
3. What is the power consumption and brightness of this 360degree
beam angle round neon LED strip light?
The flex tube consumes 15W per meter and delivers an impressive brightness of 1500 lumens per meter for vibrant illumination.
4. What colors and color temperatures are available for 360degree
beam 3D round neon LED rope light?
- CCT Range: 2200K to 6500K (Warm White to Cool White)
- Single Colors: Red, Blue, Green
5. How long can a single run be powered for round neon LED tube
strip?
- Single-End Feed: Up to 10 meters
- Double-End Feed: Up to 20 meters
6. Is this round shaped neon LED strip light waterproof?
Yes, it has an IP68 waterproof rating, making it ideal for underwater and wet-area applications like
pools, fountains, and outdoor lighting.
7. Can I cut the silicone neon flex tube to custom lengths?
Yes, the silicone neon LED flex tube can be cut at 100mm (24 LED) intervals, allowing customization for various project
requirements.
8. What dimming options are supported?
The round type neon LED flex tube is compatible with multiple
dimming systems, including PWM, DALI, 0-10V, TRIAC, and DMX512, enabling precise control of brightness and effects.
9. How durable is the round neon LED flexible tube lamp, and what
is its lifespan?
Constructed from high-quality silicone, the tube is
impact-resistant and long-lasting, with a lifespan of up to 70,000 hours (L70) at 25°C.
10. What are the typical applications for this neon LED flex tube ?
This neon LED flex tube is suitable for:
- Underwater lighting (pools, fountains)
- Architectural accents
- Landscape lighting
- Decorative and signage illumination
11. What accessories are available for installation?
A variety of mounting and connection accessories are offered,
including:
- IP68 direct and side-entry power cables
- DIY IP67 connectors
- Mounting clips for ceiling, wall, or pendant installations
- Waterproof interrupter for power cables
12. What operating conditions does it support?
The flex tube operates reliably in a temperature range of -40°C to 55°C, making it suitable for diverse environments and climates.
13. Is it easy to install?
Yes, the round neon LED tube flex strip comes with customizable
cutting units, flexible mounting accessories, and waterproof
connectors, ensuring a seamless installation process.
14. Is it energy-efficient?
Yes, with 15W per meter and a brightness of 1500 lm/m, it provides high energy efficiency without compromising on
performance.
15. Can the length be customized made to meet differenet lengths
requirements in my projects?
Yes, this round shaped neon LED flex strip rope light can be
customized made in length. please inquire us separately.
For further questions or technical support, please contact our
team!
