Features and Benefits:
▪ Small size: W16.5*H16.5mm, length can be customized made.
▪ Opal white diffuser with uniform and soft light output and dot free.
▪ Materials: standard PVC, optional silicone.
▪ Top view and vertical bending design and min dia. 120mm bending.
▪ High brightness output up to 550LM/meter.
▪ Seamless connection support.
▪ Optional Light color: Single color, tunable white, RGB, RGBW
▪ Control method for options: PWM, DMX, SPI, pixel chasing & addressable support.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Snap or screws connector and IP68 Injection moulded connector.
▪ Single end or dual ends power feed cable for neon LED flex.
▪ Cable entry ways for options:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.
▪ Provides various smart accessories for installation to meet various applications.
▪ Max continuous length per run:8~30meters per run.
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2 meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.
Technical Specifications for Single color and Tunable white IP68 F16 Neon LED Strip Lights:
| Model Number (Color Type) | Working Mode | OptionalLight Color | Working Voltage | Power (W/M) | Luminous Flux (LM/meter) | LED Type | LED Q'ty (pcs/M) | CRI (Ra) | Beam Angle | Min Cutting Unit | Max Continuous Length |
| one End Power Feed | Dual End Power Feed |
| F16-24V-3528-144-XX (Single Color) | CV, ON/OFF, Dimming | 2200~6500K, RD, BL,GN, AM, PK, OR | 24VDC | 10W/M | 380~530LM | 3528 | 144LEDs/M | Ra≥80 | 120° | 8.33cm (3.28inch) (12LEDs) | 10Meters (32.8ft) | 20Meters (65.6ft) |
| F16-24V-3528-120-XX (Single Color) | CV, ON/OFF, Dimming | 2200~6500K, RD, BL,GN, AM, PK, OR | 24VDC | 9W/M | 300~470LM | 3528 | 120LEDs/M | Ra≥80 | 120° | 10cm (3.93in) (12LEDs) | 10Meters (32.8ft) | 20Meters (65.6ft) |
| F16-24V-2835-120-XX (Single Color) | CV, ON/OFF, Dimming | 2200~6500K, RD, BL,GN, AM | 24VDC | 10W/M | 450~550LM | 2835 | 120LEDs/M | Ra≥80 | 120° | 10cm (3.93in) (12LEDs) | 10Meters (32.8ft) | 20Meters (65.6ft) |
| F16-24V-2835-120-CC-XX (Single Color) | CC, ON/OFF, Dimming | 2200~6500K, BL,GN, LY,PK | 24VDC | 10W/M | 450~550LM | 2835 | 120LEDs/M | Ra≥80 | 120° | 5cm (1.97in) (6LEDs) | 15Meters (49.2ft) | 30Meters (98.4ft) |
| F16-24V-2835-120-TW (Tunable White color) | CV, ON/OFF, Dimming | 2200k+5000K, 3000K+5000K, or Customized | 24VDC | 15W/M | 372LM+410LM | 2835 | 120LEDs/m | Ra≥80 | 120° | 10cm (3.93in) (12LEDs) | 10Meters (32.8ft) | 20Meters (65.6ft) |
Notes:
1.About light color:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.

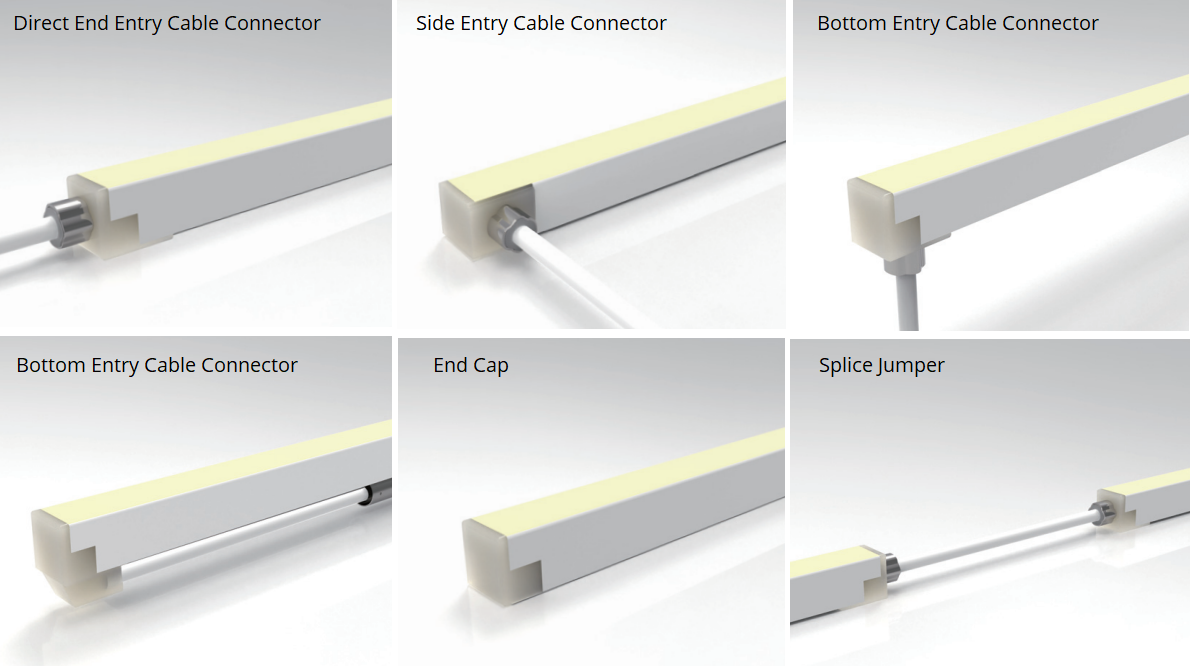

IP68 Injection moulded Connector for Neon LED flex:
Notes:
(1) Factory assembly ONLY;
(2)When the neon LED flex is underwater use, it is strongly advised to select injection moulded type connectors.
IP67 DIY Snap type or Screws Type Connector for Neon LED Strip:
Mounting Accessories for LED Neon Strip Light:
(1) Aluminum mounting channel and flex Aluminum mounting channel/profile/Clip;
(2) Transparent PC channel/profile or clip;
(3) 316 Stainless Steel mounting clip, stainless steel mounting channel.
