Features and Benefits:
▪ Mini size: W10*H10mm, length can be customized made.
▪ Opal white diffuser and Side view light enables uniform,soft and dot free light output.
▪ Horizontable bending design and min dia. 150mm bending.
▪ High brightness output up to 500LM/meter.
▪ Ideal seamless connection solution for linear lighting.
▪ Single color: 2200-6500K, red, green, blue.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Injection moulded connector:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.

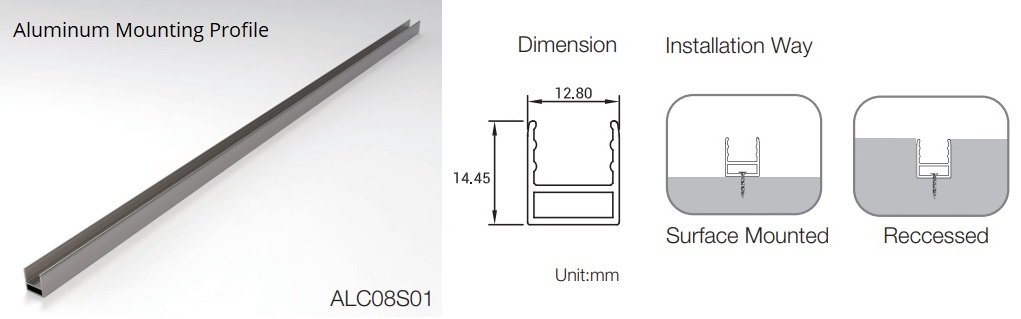

▪ Provides various smart accessories for mounting and installation.
▪ Max continuous length per run:
(1) One end Power feed: 5meters, or
(2) Double ends power feed: 10meters.
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.

Technical Parameters:
