Low Voltage 12V/24V AC/DC Recessed Underwater Luminaires 9W 18W 30W
For Concrete Pool And Vinyl Liner Pool
Introducing our premium 12/24V AC/DC LED Underwater Light,
meticulously engineered for superior performance and durability in
aquatic environments. Constructed with high-grade SUS316 stainless
steel, this light is designed to withstand harsh water conditions,
making it ideal for both saltwater and freshwater installations.
Key Features:
1. Robust Build & Premium Materials:
This underwater Light Crafted with SUS316 stainless steel, the
housing offers exceptional corrosion resistance and longevity,
ensuring reliable performance even in the most challenging
underwater settings.
2. Flexible Voltage & LED Options:
(1) This underwater pond light Operates on both 12V & 24V AC/DC
power systems, providing versatility for various electrical setups.
(2) Choose between 9pcs or 12pcs high-efficiency LED chips to suit
your specific brightness and energy requirements.
3. Customizable Lighting Modes:
The underwater lamp Available in single color for a consistent,
elegant glow, or opt for dynamic RGB and RGBW options to create
captivating color-changing effects. The RGBW variant adds an extra
white channel for enhanced brightness and refined color balance.
4. Versatile Mounting Solutions:
Designed with adaptability in mind, this light comes with your
choice of mounting sleeves:
(1) ABS Plastic Mounting Sleeve: Lightweight, easy to install, and perfect for standard
applications.
(2) Stainless Steel Mounting Sleeve: Offers increased durability and a sleek aesthetic, ideal for
high-end installations.
These mounting options ensure secure placement in a variety of pool
types like concrete pool and vinyl liner pool.
5. Wide Applications Compatibility:
Suitable for a diverse range of pools including concrete, vinyl
liner, swimming, plastic film, water, and landscape pools. Whether
enhancing a residential backyard oasis or a commercial water
feature, this LED underwater light delivers both functional
illumination and stunning visual appeal.
6. Enhance Your Aquatic Ambiance:
Elevate the atmosphere of any pool or water feature with a lighting
solution that combines efficiency, aesthetic flexibility, and
rugged construction. Perfect for creating serene nighttime vistas
or vibrant, dynamic displays, our LED underwater light transforms
ordinary water elements into mesmerizing focal points.
Experience the perfect blend of technology and design with our
SUS316 stainless steel LED underwater light—a reliable, stylish,
and energy-efficient choice for any aquatic environment.
Material Specifications
| Front cover&Housing | Molding shaped sus 316 (or 304) stainless steel housing |
| Gasket | EPDM gasket |
| Window glass | Step tempered glass. T=10mm |
| Cable gland | IP-68 PG-11 copper with nickel -coated |
| PCB | Excellent heat conductivity aluminum, coefficient of heat
conductivity≥2.0w/mk |
| Driver | Constant current output
▪ Single color LED=2-circuit output
▪ RGB 3in1 LED=6-circuit output |
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Electrical connection | ▪ 1x cable 3meters H05RN-F 3x1.0mm² to open wires |
| Mounting Sleeve | Stainless steel or ABS plastic mounting sleeve (included) |
| Control Support | ON/OFF, 0-10V, DMX512, RGB Controller |
Technical Specification of 12/24V AC/DC single/RGB/RGBW LED
Underwater Luminaires:
Part Number | Light Source | Light Color | Selected Lens
Degree (Θ1/2) | Input Voltage
(Vdc) | Power
(W) | Typical
Luminance(lm) | |
04R195-109 | 9×1W Osram
or Cree LED | Single | 15° ,30°, 45° 60° | 12/24V AC/DC, 50/60Hz | 9W | Cool white=729
Warm white=620 | 08 |
04R195-309 | 9×1W RGB 3-in-1 LED | RGB | | 12/24V AC/DC, 50/60Hz | 9W | 432 | 08 |
| 04R195-409 | 9×1W RGB 4-in-1 LED | RGBW | 15° ,30°, 45° 60° | 12/24V AC/DC, 50/60Hz | 9W | 505 | 08 |
04R195-112 | 12×1W LED | Single | 15° ,30°, 45° 60° | 12/24V AC/DC, 50/60Hz | 12W | Cool white=1386
Warm white=1180 | 08 |
| 04R195-412 | 12×1W RGB 3-IN-1 LED | RGB | 15° ,30°, 45° 60° | 12/24V AC/DC, 50/60Hz | 12W | 756 | 08 |
| 04R195-112 | 12×4W LED | Single | 15° ,30°, 45° 60° | 12/24V AC/DC, 50/60Hz | 30W | Cool white=2220
Warm white=1887 | 08 |
| 04R195-312 | 12×4W LED | RGB | 15° ,30°, 45° 60° | 12/24V AC/DC, 50/60Hz | 30W | 1260 | 08 |
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green,
Blue and etc.) ,RGB and RGBW
2. Specifications are subjected to change without notice.

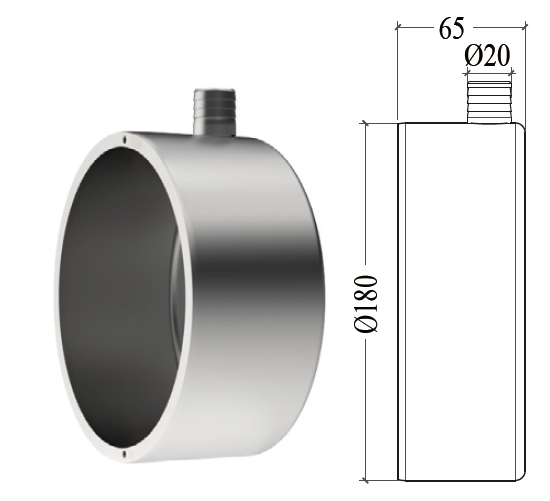

ABS Plastic and Stainless Steel Mounting Sleeve (also named as
"Niche") for Option:
Offers increased durability and a sleek aesthetic, ideal for
high-end installations.
These mounting options ensure secure placement in a variety of pool
types like concrete pool and vinyl liner pool.
| Plastic Niche For Concrete Pool | Stainless Steel Niche For Concrete Pool | Plastic Niche For Vinyl Liner Pool | Stainless Steel Niche For Vinyl Liner Pool |
 |  |  |  |
