70W/80W/90W Adjustable Beam LED Inground Light IP67 Waterproof,
High-Temperature Resistant for Middle East Climates
Professional-grade LED underground lights with horizontal/vertical
beam adjustment, designed for extreme temperatures (-25°C to
+70°C). Ideal for Middle Eastern climates, offering ultra-durable
aviation aluminum housing, stainless steel trim, and advanced
thermal management. Choose from 70W/80W single-color or 90W RGBW
options with DMX512/DALI control.
Features:
1. LED Underground luminaire with Beam Direction adjustable
function on Horizontale and Vertical axis.
2. LED Inground luminarie is suitable for high temperature
environment like -25°C to +55°C even -25°C to +70°C(please inquire
us separately) especially suitable for the environments in Middle
East Countries.
3. Ultra small beam angle LED Inground Luminaries and other spot or
flood beam angle underground luminaires: 2.5°, 4.5°, 6°, 8°, 12°,
20°, 30°, 45°, 60°, 10x70°, 5x20°,15x60°, 20x30° and others.
4. Power available:70W or 80W for single color, 90W for RGBW 4-in-1
LEDs.
5. IP Rate:IP67.
6. Control Mode:ON/OFF, DALI, DMX512, 0-10V dimming support and
etc.
7. Material:
(1) Die-casting aluminum housing, stainless steel trim, and
imported silicone sealing ring which can withstand temperature
changes of 250°C; Adopt ultra-white tempered glass, the light
transmittance is as high as 92%; the surface is double-layer
fluorocarbon spraying with excellent weather resistance.
(2) Heat dissapation: Compared with the traditional ABS recessed
parts with a thermal conductivity of 0.25W/(m.k), the recessed
parts of this product are made of aviation aluminum alloy with a
thermal conductivity of 230W/(m.k), and the heat of the housing can
be quickly diffused to the circumference; The products are widely
used in the Middle East, the ground temperature in summer is as
high as 70 degrees, and the lamps still work normally.
8. Water-proof: The waterproof structure of the lamp is to weld
nuts under the lamp panel, and then use stainless steel screws to
fasten the housing and the trim upside down, which will not loosen
after long-term use. It avoids the traditional lamps to directly
lock the trim on the aluminum housing.
Technical Parameters of Beam Diection adjustable IP67 LED Unground
lights:
| Item Number | 02TFR-X-109 | 02TFR-X-109 | 02TFR-X-409 | 02TFR-X-136 | 02TFR-X-481 |
| Light Color | Single | Single | RGBW 4-in-1 | Single | RGBW (20R/20G/20B/21W) |
| Control Mode | ON/OFF, DALI, 0-10V | ON/OFF, DALI, 0-10V, DMX512 | DMX512 | ON/OFF, DALI, 0-10V | ON/OFF, DMX512 |
| Power | 70W | 80W | 90W | 80W | 90W |

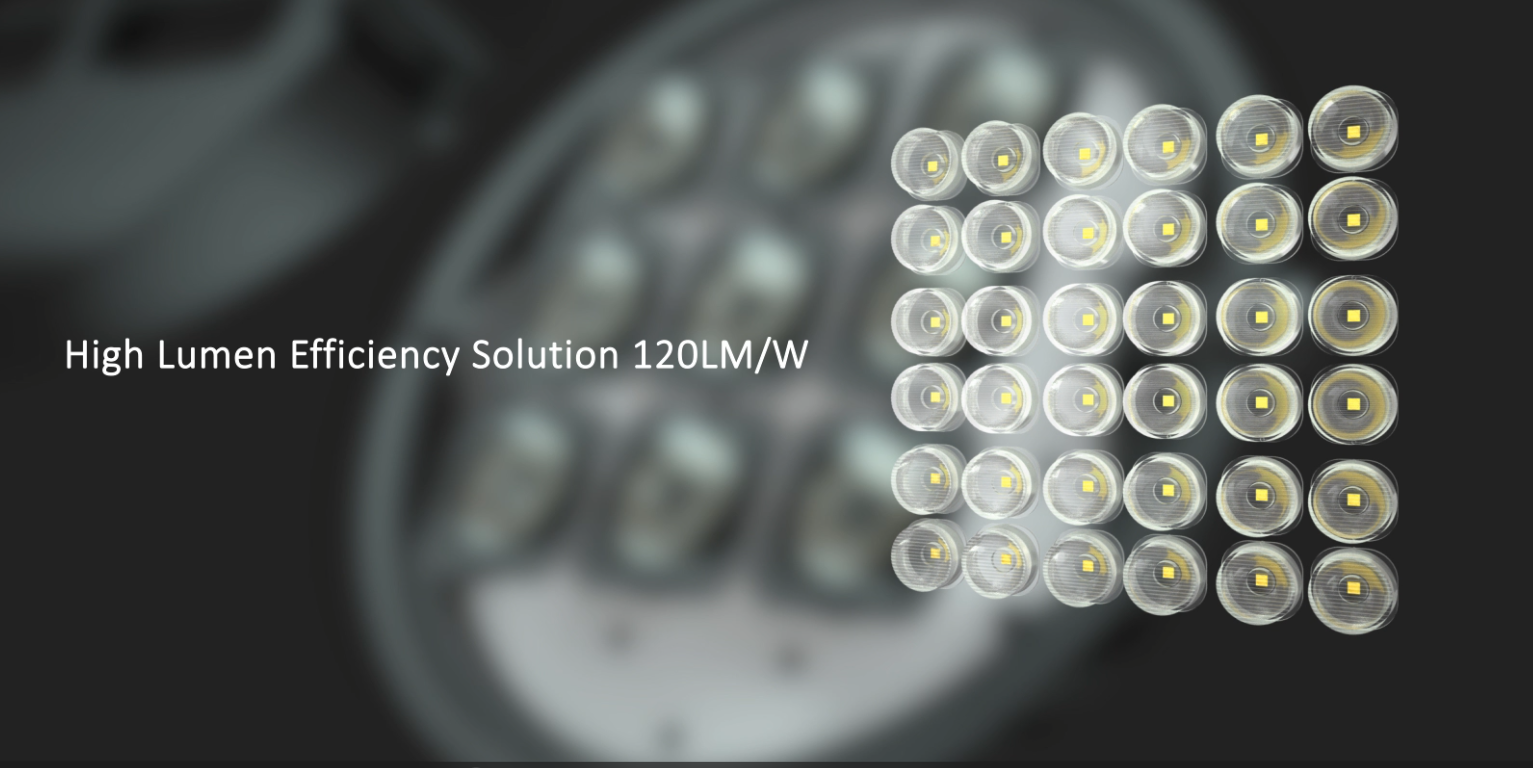

| Light Source | 9pcs*8W CREE or Osram LED | 9pcs*9W CREE or Osram LED | 9pcs*10W CREE or Osram LED | 36pcs*2.5W CREE or Osram LED | 81pcs*1.5W CREE or Osram LED |
| Beam Angle | 2.5° | 4.5°, 8°, 12°, 20°, 30°, 45°, 60°, 10x70°, 5x20° | 6°, 8°, 15°, 20°, 30°, 15x60° | 8°, 12.5°, 20°, 30°,15x30°, 10x60° | 12°, 15°, 24°, 20x30° |
| Lifespan | 80,000 Hours | 80,000 Hours | 80,000 Hours | 80,000 Hours | 80,000 Hours |
| IP Rate | IP67 | IP67 | IP67 | IP67 | IP67 |
| Ambient Temperature | -25°C to +55°C (even -25°C to +70°C, please inquire us separately) |
| Humidity | 10%~90% |
| Connected in series Quantity | max 14pcs | max 14pcs | max 14pcs | max 14pcs | max 14pcs |
| Materials | SUS 316 stainless steel front cover, die-casting aluminum, aluminum
recessed box |
| Warranty | 2 Years ( or others) |
Directional LED inground light family series products high
temperature resistant
Directional LED square inground light family series products high
temperature resistant,
RGBWCLA 7-in-1 LED Square Inground Lights available:
