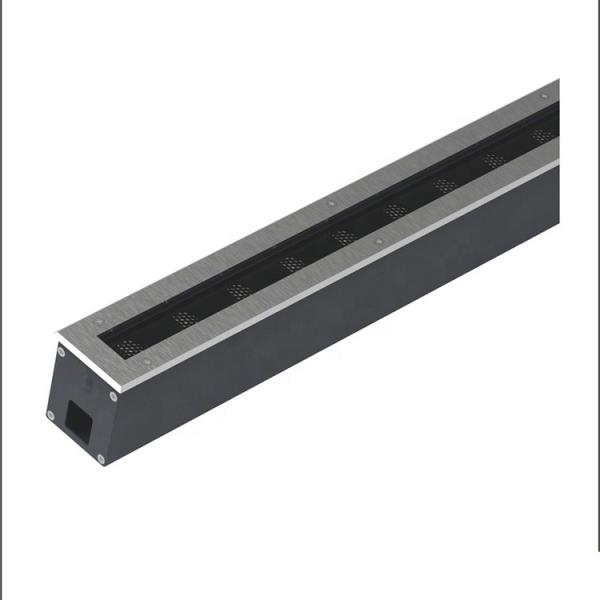

SS316 RGBW Linear LED Inground Light 500mm Length Outdoor

Ask Lasest Price
Brand Name :	COMI LANDSCAPE LIGHTING
Model Number :	B2RLC
Certification :	CE, ROHS
Payment Terms :	T/T, Western Union, L/C, MoneyGram
Supply Ability :	10000pcs/month
Delivery Time :	3-20days

Add to Cart

Product Details
Company Profile

SS316 RGBW Linear LED Inground Light 500mm Length Outdoor

Features and benefits:
▪ Different lengths are available: 300mm, 500mm and 1000mm
▪ Light source: 18 or 24pcs (1000mm), 12pcs(500mm) and 6pcs (300mm)
▪ 24VDC, or 110-240Vac 50/60Hz input.
▪ CRI(Ra)>80 (for 2200-6500K only).
▪ Colour: 2200-6500K, Red, Green, Blue, Yellow and RGB 3-IN-1.
▪ SUS316 stainless steel front cover and aluminium housing.
▪ Standard is non-dimmable by PWM, DALI, 0/1-10V.
Optional dimmable DALI, 0/1-10V support.
▪ Easy Vertical wall recessed install by mounting sleeve.
▪ Aluminium mounting sleeve included.
▪ IP classification: IP67.
▪ 2 Years warranty.

Material Specifications:

Housing	Extruded aluminium, power coated
Front Cover	SUS316L# Stainless steel
Light Window	Tempered glass
Lens	Optical lens,efficiency≥85%
Cable Gland	IP68 PG-9 copper with nickel coated
Gasket	Glass and housing silicone sealed
Operating Temperature	-20˚C~40˚C
Power Cable	▪ 1x cable 0.5meters H05RN-F 2X1.0mm² to open wires (Low voltage) ▪ 1x cable 0.5meters H05RN-F 3X0.75mm² to open wires(High voltage) ▪ 1x cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB)
Mounting sleeve(Included)	Aluminium

Technical Specifications:

Part Number	Length (MM)	Light Source	Color	Beam Angle	Input Voltage(V)	Typical Operating Current(mA)	Typical Power Consumption(W)	Typical Luminance(lm)	IK rate
B2RLC0657	300	6x2W LED	Single Color	30°	24VDC 120/240V	24V=500mA 120=110mA 240V=60mA	24V=12W 110=12.2W 240V=12.3W	Cool white=910 Warm white=891	10
B2RLC1257	500	12x2W LED	Single Color	30°	24VDC 120/240V	24V=1042mA 120=220mA 240V=110mA	24V=25W 110=24.1W 240V=24.2W	Cool white=1900 Warm white=1780	10
B2RLC1859	1000	18x3W LED	Single Color	30°	24VDC 120/240V	24V=2000mA 120=455mA 240V=227mA	24V=48W 110=50W 240V=50W	Cool white=3264 Warm white=2970	10
B2RLC2457	1000	24x2W LED	Single Color	30°	24VDC 120/240V	24V=2000mA 120=455mA 240V=227mA	24V=48W 110=51W 240V=52W	Cool white=3340 Warm white=3002	10
B2RLC0618	300	6x3W RGB 3-in-1 LED	RGB	30°	24VDC	R=150 G=188 B=188	13	407	10
B2RLC1218	500	12x3W RGB 3-in-1 LED	RGB	30°	24VDC	R=300 G=375 B=375	25.6W	801	10
B2RLA2418	1000	24x3W RGB 3-in-1 LED	RGB	30°	24VDC	R=537 G=606 B=602	58.6	1830	10

Note: Specifications are subjected to change without notice.
