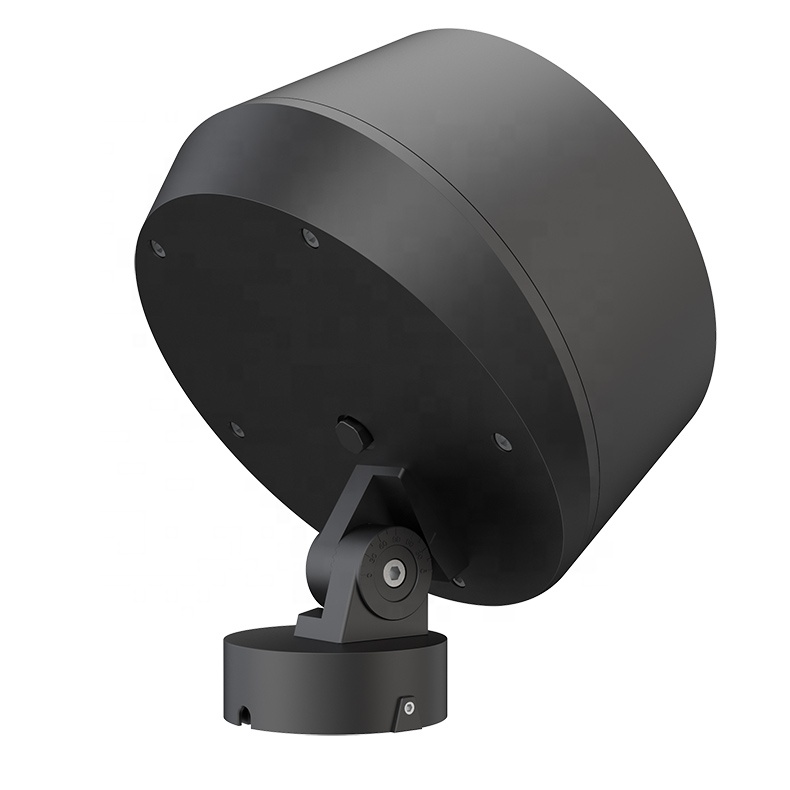

36x2W 24Vdc DMX LED Architectural Flood Light IP66 Outdoor 120LM/W

Ask Lasest Price
Brand Name :	COMI LANDSCAPE LIGHTING
Model Number :	B3QHM3658 B3QHM3618
Certification :	CE, ROHS
Payment Terms :	MoneyGram, T/T, L/C, Western Union
Supply Ability :	10000pcs/month
Delivery Time :	3-18days

Add to Cart

Product Details
Company Profile

36x2W 24Vdc DMX LED Architectural Flood Light IP66 Outdoor 120LM/W

Features and benefits:
▪ 36pcs*2W(Mono or tunable white), 3W(RGB) or 4W(RGBW) Cree LED as its light source.
▪ 70-80LM/W (high light efficiency 100-120LM/W is available upon request).
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with round base, also provides extensive mounting accessories for options:
(1) Spike for ground mounted;
(2) Screw fixed pole mounting Bracket;
(3) Mounting Bracket with stainless steel tree strap;
(4) Extended pole(300/500/800mm) with round base (fixed by screws) or ground spike.
▪ Mono color, tunable white color, RGB, RGBW are availble.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).

36X3W CREE LED DMX512 Architectural Flood Wall Washer

COMI Landscape lighting's B3Q is a an ideal LED architectural and landscape lighting for large buildings and objects. The round and conically-shaped luminaire housing which provides outstanding visual confort with good shielding properties. With various lens types and lens angle for options, the family of luminaires consists of several sizes with diverse light distributions-ranging from narrow spot, and wide flood to homogenous wallwashing. Its circular design means the luminaire can be flexibly used in highly different room situations, architectural styles and other landscape objects. The pan-and-tilt mounting plate enables the luminaires to be precisely aligned for projection angle. Optional PWM, 0-10V, DALI, DMX512 dimming or control support upon request. IP65 rated and weather-proof housing design. B3Q features extensive mounting accessories the luminaire is also easy to install in a wide variety of outdoor applications.

Features and benefits:
▪ 36pcs*2W(Mono or tunable white), 3W(RGB) or 4W(RGBW) Cree LED as its light source.
▪ 70-80LM/W (high light efficiency 100-120LM/W is available upon request).
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with round base, also provides extensive mounting accessories for options:
(1) Spike for ground mounted;
(2) Screw fixed pole mounting Bracket;
(3) Mounting Bracket with stainless steel tree strap;
(4) Extended pole(300/500/800mm) with round base (fixed by screws) or ground spike.
▪ Mono color, tunable white color, RGB, RGBW are availble.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).

Description
Download
Inquire

Material Specifications:

Housing	12 Die-casting grey or black powder coated aluminum. T=50-55μm . Adhesion of ISO class 1/ASTM class 4B
Light Window	Clear Temper glass.
Lens	Optical lens, efficiency≥90%
LED	CREE, OSRAM, EPISTAR and etc LED
PCB	Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
LED Driver	Integrated LED driver with Constant current output
Operating Temperature	-20℃~+40℃
Round Base (included)	Aluminum
Support	DALI, 0~10V,PWM, DMX512 control support upon request.

Technical Specifications:

Item Number	Control Method	Light Source	CRI	Optional Beam Angle(°)	Input Voltage	Typical Power	Typical Luminous Flux(lm)	IK Rate
B3QHM3658	ON/OFF	36×3W CREE LED Single Color	Ra>80	6°, 12°, 25°,40°, 60°	24VDC 110-120VAC 220-240VAC	24V=66 110V=66 240V=66	Cool White=4950 Warm White=4208	IK10
B3QHM3618	PWM	36×3W RGB 3-in-1 Full Color	/	6°, 12°, 25°,40°, 60°	24VDC	98	1886	IK10
B3QHM3618DMX	DMX	36×3W RGB 3-in-1 Full Color	/	6°, 12°, 25°,40°, 60°	24VDC	98	1886	IK10
B3QHM3620	PWM	36×4W RGBW 4-in-1 Full Color	/	6°, 12°, 25°,40°, 60°	24VDC	100	2421	IK10
B3QHM3620DMX	DMX	36×4W RGBW 4-in-1 Full Color	/	6°, 12°, 25°,40°, 60°	24VDC	100	2421	IK10

Notes:
1. Optional color or Color Temperature for single color: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.

Optional Various Optical Accessories for 0/1-10V, DALI,TRIAC,PWM dimming or DMX512 control Mono/ RGB/ RGBW LED Architectural and Landscape Flood / Spotlights:

36x2W 24Vdc DMX LED Architectural Flood Light IP66 Outdoor 120LM/W

Note:
These lighting accessories enables the luminaire with soft light or anti-glare light output.

Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:

36x2W 24Vdc DMX LED Architectural Flood Light IP66 Outdoor 120LM/W
