    1800LM/M IP68 SS316 LED Underwater Linear Lights

    Ask Lasest Price
    Brand Name : COMI LANDSCAPE LIGHTING
    Model Number : B5SC0957 (500mm), B5SC1857 (1000mm)
    Certification : CE,RoHS,EMC,LVD, FCC,CCC
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100,000pcs/month
    Delivery Time : 3-20days
    • Product Details
    • Company Profile

    1800LM/M IP68 SS316 LED Underwater Linear Lights

    B5SC-series is an 24Vdc working IP68 LED linear underwater light available in length 500mm or 1000mm which is made of 316Ti stainless steel, aluminum and PMMA. It adpots 18pcs Cree high power LED or 48pcs Cree SMD LED per meter as its light source, available in single color in white color ( 2700-6500K), or RGB or RGBW color. The product features itself made of 316Ti stainless steel for end caps &bracket with resistant to corrosion and aluminum lamp body for excellent heat dissipation, and optical round type thickness 5mm PMMA tube for lamp cover. The product is easy to be installed by angle adjustable bracket. IP68 rated design enables it widely used for lighting for Landscape, Swimming Pool, Fountain, Garden, Underwater, especially for waterfalls lighting.


    Material Specifications:

    Materials

    316Ti stainless steel for End caps and bracket;

    Aluminum Alloy 6063 as heat sink for lamp housing

    Optical PMMA round tube cover

    GasketEPDM Gasket
    LensOptical PMMA round cover, T=5mm, efficiency>90%
    Cable GlandIP68 Copper with nickel coated
    PCBExcellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk
    DriverConstant current output
    ▪ Single color LED=2-circuit output
    ▪ RGB LED=3-circuit output
    ▪ RGBW LED=4-circuit output
    Application environment

    Temperature of water between -20℃~50℃;

    underwater less than 1 meter depth.

    Electrical connection

    The two ends of lighting fixture comes with power cable.

    ▪ 2x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single color)
    ▪ 2x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB)
    ▪ 2x cable 3meters H05RN-F 5x0.75mm² to open wires (for RGBW)

    Bracket (included)316Ti stainless steel, angle adjustable
    Control SupportDimming or controllable with external PWM, 0/1-10V, DALI, DMX 512

    Technical Specifications:

    Item Number

    Length

    (mm)

    Light SourceBeam Angle

    Working

    Voltage

    PowerLight Efficiency

    IP

    Rate

    N.W.

    (KG)

    B5SC0957500

    9pcs×1W

    Cree LED

    10°,30°24VDC9W

    75LM/W(3000K)

    85LM/W(4000K)

    90-100LM/W(6000K)

    IP680.9
    B5SC2401500

    24pcs×

    Cree LED

    120°24VDC6W

    75LM/W(3000K)

    85LM/W(4000K)

    90-100LM/W(6000K)

    IP680.9
    B5SC18571000

    18pcs×1W

    Cree LED

    10°,30°24VDC18W

    75LM/W(3000K)

    85LM/W(4000K)

    90-100LM/W(6000K)

    IP681.8
    B5SC4801100048pcs× Cree
    SMD LED
    120°24VDC12W

    75LM/W(3000K)

    85LM/W(4000K)

    90-100LM/W(6000K)

    IP681.8

    Notes:

    1. Color available: 2200-6500K, RGB, RGBW;

    2. Specifications are subjected to change without notice.

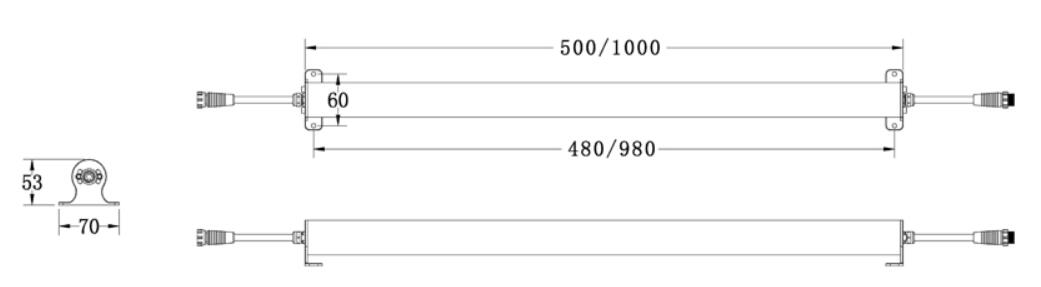

    Dimensions(Units: mm):

    dimensions for 24Vdc 500mm 1000mm IP68 316 Stainless Steel LED Linear Underwater Lights With Adjustable Bracket for waterfall lighting

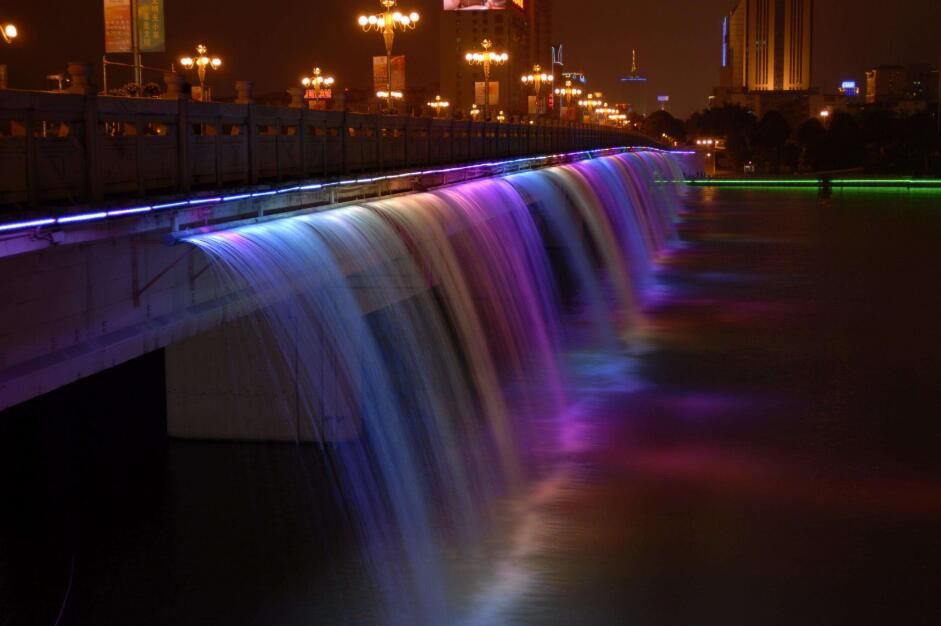

    Applications:

    IP68 underwater Lighting for Landscape, Swimming Pool, Fountain, Garden, Underwater, especially for waterfalls lighting.

    DMX512 LED underwater pool lighting

    IP68 LED underwater Linear Light for waterfall lighting
