24VDC 12x3W CREE IP65 LED Landscape Spot Lights With Spike

Ask Lasest Price
Brand Name :	COMI LANDSCAPE LIGHTING
Model Number :	B3QFB1258, B3QFB1218, B3QFB0130
Certification :	CE, ROHS
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100,000PCS/Month
Delivery Time :	5~18days

Add to Cart

Product Details
Company Profile

24VDC 12x3W CREE IP65 LED Landscape Spot Lights With Spike

24VDC or 110~120VAC, or 220~240Vac 12x3W single color, RGB or 12*4W RGBW or 1*30W CREE COB LED Hidden Power Cable type New Architectural / Landscape/ Garden Spot Light with Round Base, DALI, 0/1-10V, TRIAC, PWM, DMX512 Control support

Features:
1.Independent intellectual property design and the products are full senses of elegance, fashion, art.
2. 24VDC, 110~120VAC, or 220~240Vac input voltage for options.
3. 12*3W single color or RGB, or 12*4W RGBW, or 1*30W CREE LED with high lumen output and excellent color consistency;
4. CRI>80Ra (>90Ra is available)
5. Body color: Silver grey and Black for options
6. Various optional accessories: multidirectional base , ABS ground spike, tree strap and 6063 power coated aluminum pole and etc. enables the product can be with different installation modes to meet outdoor project requirements.
7.Ultra clear and highly strengthen 4mm tempered glass cover and with 90-95% high luminous efficacy.
8.Environmental friendly highly strengthen ADC 12# die-casting aluminum housing with Tiger powder coated spraying process,reach over 1000 hours in salt spray test .
9.Use top quality and world-well known brand driver to guarantee the stability of the product.
10. Support DMX512, 1-10V, DALI, TRIAC or PWM dimming control.

Materials Specifications:

Housing	12 Die-casting powder coated aluminum, T=50-55μm. Adhesion of ISO class 1/ASTM class 4B
Front Cover	12 Die-casting powder coated aluminum, T=50-55μm. Adhesion of ISO class 1/ASTM class 4B
Lens	Optical lens, efficiency≥90%
Gasket	Molding shaped silicone double seal
LED	High power LED or COB LED, Osram/CREE LED
PCB	Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
Driver	Constant current output Single color LED=1-circuit output RGB 3in1 LED =3-circuit output RGBW 4-in-1=4 -circuit output
Operating temperature	-20℃~40℃
Power cable	H05RN-F 2X1.0mm^2, L=2m (low voltage) H05RN-F 3X1.0mm^2, L=2m (high voltage) H05RN-F 4X0.75mm^2, L=2m (for RGB) H05RN-F 5X0.5mm^2, L=2m (for RGBW)
Mounting base(included)	Powder coated die-casting aluminum
Spike(optional)	ABS
Tree Strap (optional)	stainless steel strap
Extensive pole (optional)	Aluminum

Technical Specifications:

Item Number	Control Mode	Light Source	Light Color	Input Voltage	Beam Angle	Power	Luminous Flux(LM)	IK Rate
B3QFB1258	ON/OFF	12×3W CREE XP-E2 LED	Single color	24VDC	6°, 12°, 25°,40°, 60°	36W	2700	IK06
B3QFB1258	ON/OFF	12×3W CREE XP-E2 LED	Single color	220/240VAC	6°, 12°, 25°,40°, 60°	36W	2700	IK06
B3QFB1218	PWM	12×3W RGB LED	RGB 3-in-1	24VDC	15°, 30°, 45°, 60°	18W	1421	IK06
B3QFB1218DMX	DMX512	12×3W RGB LED	RGB 3-in-1	24VDC	15°, 30°, 45°, 60°	18W	1421	IK06
B3QFB1220DMX	DMX512	12×4W RGBW LED	RGBW 4-in-1	24VDC	15°, 30°, 45°, 60°	24W	1868	IK06
B3QFB0130	ON/OFF	1×30W CREE COB LED	Single color	24VDC	18°,24°, 38°, 60°	18.2W	2813	IK06
B3QFB0130	ON/OFF	1×30W CREE COB LED	Single color	220/240VAC	18°,24°, 38°, 60°	18.6W	2813	IK06

Notes:
1. 110-120VAC is avaibale.
2. Specifications are subjected to change without notice.

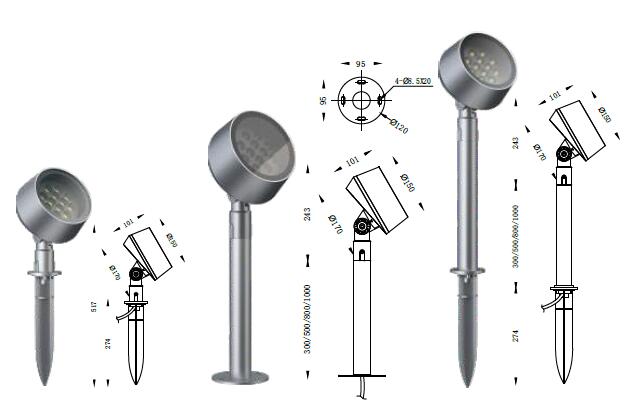

Various optional extensive accessories(Round base, ground spike, tree strap, Extensive pole)

Installation Demo for Architectural and Landscape Spot and flood Lights
