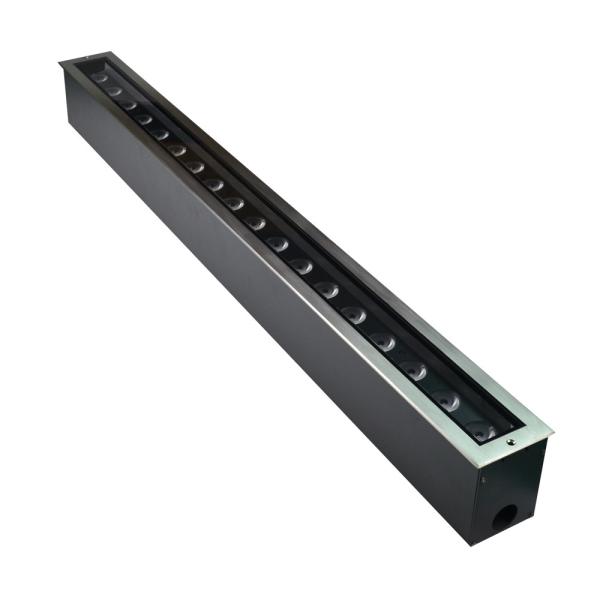

RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve

    Buy cheap RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve from wholesalers

    Buy cheap RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve from wholesalers
    • Buy cheap RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve from wholesalers
    • Buy cheap RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve from wholesalers
    • Buy cheap RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve from wholesalers
    • Buy cheap RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve from wholesalers

    RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve

    Ask Lasest Price
    Brand Name : COMI Landscape Lighting
    Model Number : B2RLC-Series
    Certification : CE, ROHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000 pcs/month
    Delivery Time : 3-18days depends on order quantity
    • Product Details
    • Company Profile

    RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve

    RGB 90mm Width 48W Recessed LED Inground Light With Aluminum Mounting Sleeve


    Technical Specifications:

    Part Number
    Length
    (MM)
    Light
    Source
    Color
    Beam Angle
    Input Voltage(V)
    Typical Operating
    Current(mA)
    Typical Power
    Consumption(W)
    Typical
    Luminance(lm)
    IK rate
    B2RLC0657
    337
    6x2W
    LED
    Single Color
    30°
    24VDC
    120/240V
    24V=500mA
    120=110mA
    240V=60mA
    24V=12W
    110=12.2W
    240V=12.3W
    Cool white=910
    Warm white=891
    10
    B2RLC1257
    558
    12x2W
    LED
    Single Color
    30°
    24VDC
    120/240V
    24V=1042mA
    120=220mA
    240V=110mA
    24V=25W
    110=24.1W
    240V=24.2W
    Cool white=1900
    Warm white=1780
    10
    B2RLC1859
    1120
    18x3W
    LED
    Single Color
    30°
    24VDC
    120/240V
    24V=2000mA
    120=455mA
    240V=227mA
    24V=48W
    110=50W
    240V=50W
    Cool white=3264
    Warm white=2970
    10
    B2RLC2457
    1120
    24x2W
    LED
    Single Color
    30°
    24VDC
    120/240V
    24V=2000mA
    120=455mA
    240V=227mA
    24V=48W
    110=51W
    240V=52W
    Cool white=3340
    Warm white=3002
    10
    B2RLC0618
    337
    6x3W
    RGB
    3-in-1 LED
    RGB
    30°
    24VDC
    R=150
    G=188
    B=188
    13
    407
    10
    B2RLC1218
    580
    12x3W
    RGB
    3-in-1 LED
    RGB
    30°
    24VDC
    R=300
    G=375
    B=375
    25.6W
    801
    10
    B2RLA2418
    1120
    24x3W
    RGB
    3-in-1 LED
    RGB
    30°
    24VDC
    R=537
    G=606
    B=602
    58.6
    1830
    10

    Note: Specifications are subjected to change without notice.

    The COMI LANDSCAPE LIGHTING'S asymmetrical Linear INGROUND LIGHT B2R series is designed for inground integration and offers various design possibilities in architectural illumination.


    Features and benefits:
    ▪ Different lengths are available: 337mm, 580mm and 1120mm
    ▪ Light source: 18 or 24pcs (1120mm), 12pcs(580mm) and 6pcs (337mm)
    ▪ 24VDC, or 110-240Vac 50/60Hz input.
    ▪ CRI(Ra)>80 (for 2200-6500K only).
    ▪ Colour: 2200-6500K, Red, Green, Blue, Yellow and RGB 3-IN-1.
    ▪ SUS316 stainless steel front cover and aluminium housing.
    Standard is non-dimmable by PWM, DALI, 0/1-10V.
    Optional dimmable DALI, 0/1-10V support.
    ▪ Easy Vertical wall recessed install by mounting sleeve.
    ▪ Aluminium mounting sleeve included.
    ▪ IP classification: IP67.
    ▪ 2 Years warranty.



    Material Specifications:

    HousingExtruded aluminium, power coated
    Front CoverSUS316L# Stainless steel
    Light WindowTempered glass
    LensOptical lens,efficiency≥85%
    Cable GlandIP68 PG-9 copper with nickel coated
    GasketGlass and housing silicone sealed
    Operating Temperature-20˚C~40˚C
    Power Cable▪ 1x cable 0.5meters H05RN-F 2X1.0mm² to open wires (Low voltage)
    ▪ 1x cable 0.5meters H05RN-F 3X0.75mm² to open wires(High voltage)
    ▪ 1x cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB)
    Mounting sleeve(Included)Aluminium

    Technical Specifications:


    Note: Specifications are subjected to change without notice.
