D2TLC24015 20W IP67 Seamless Connection Linear lights with Aluminum Mounting Profile

COMI LANDSCAPE LIGHTING's D2TLC-series IP67 protected opal encapsulated linear LED luminaire with High quality and homogeneous light over entire emission surface made of PMMA and aluminum for indoor and outdoor in-ground/wall recessed/Ceiling recessed installation or surface mounting. Consisting of LED linear luminaire and mounting aluminum profile. Can be lined up optically and mechanically.Also suitable for installation into roads and parking lots. It can be NOT only used as inground light, but also can be used as ceiling recessed linear light or wall recessed linear light, or surface mounting linear lighting.

Features and Benefits:
▪ High quality and homogeneous light over entire emission surface and dots free.
▪ PMMA one-time extrusion LED profile, length up to 3meters max.
▪ Low voltage 24VDC working voltage.
▪ Color: single color, RGB, or RGBW.
▪ Can be seamless connection: lined up optically and mechanically.
▪ Maximum stand weight: 30kN
▪ The inner strip light or light bar can be customized made, advised max 20W/meter.
▪ Basic CRI80+ (CRI90 or CRI95+ are available).

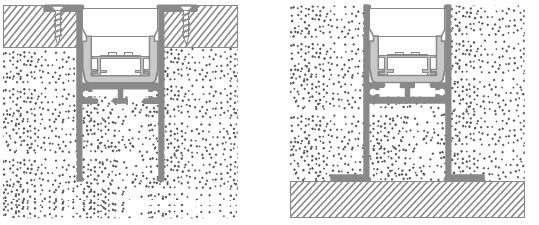

▪ Various installation methods:
(1) Inground/wall/Ceiling recessed installation or surface mounting.
(2) Two directional installation methods:

▪ One end or two ends bottom Output cable( to Open wires, or IP67 connectors)
▪ Fully PWM, 0/1-10V, DALI dimmable support ( DMX control is available upon request).
▪ IP67 suitable for indoor or outdoor.
▪ 2 Years warranty.

Material Specifications

Technical Specificaitons

Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.)
2. RGB, or RGBW or DMX RGB is available upon request.
3. Length can be 300mm, 500mm, 600mm,1000mm,1200mm,1500mm and etc.

4. Specifications are subjected to change without notice.
