B4XC0457 9W PWM Dimming Recessed LED Underwater Pool Lights

    Buy cheap B4XC0457 9W PWM Dimming Recessed LED Underwater Pool Lights from wholesalers

    Buy cheap B4XC0457 9W PWM Dimming Recessed LED Underwater Pool Lights from wholesalers
    • Buy cheap B4XC0457 9W PWM Dimming Recessed LED Underwater Pool Lights from wholesalers
    • Buy cheap B4XC0457 9W PWM Dimming Recessed LED Underwater Pool Lights from wholesalers

    B4XC0457 9W PWM Dimming Recessed LED Underwater Pool Lights

    Ask Lasest Price
    Brand Name : COMI Lighting
    Model Number : B4XC0457 B4XC0418 C4XC0457 ( Asymmetrical)
    Certification : CE,RoHS
    Price : USD30~USD54/piece
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000pcs Per Month
    Delivery Time : 3~20days determined by order quantity
    • Product Details
    • Company Profile

    B4XC0457 9W PWM Dimming Recessed LED Underwater Pool Lights

    COMI Landscape Lighting IP68 LED pool light is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.


    Features and Benefits:
    ▪ Utilizes 4pcs 2W Osram or 3W RGB 3-in-1 LED as light source.
    ▪ 24VDC low voltage input
    ▪ Made of SUS316 stainless steel completely for housing and accessories.
    ▪ Symmetrical light output.
    ▪ Overheat sensor inside(Optional).
    ▪ IP68 waterproof,underwater installation in depth less than 1meter.
    ▪ Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
    Standard non-dimmable.(Optional dimmable support with DALI, 1~10V, PWM. )
    ▪ PVC Mounting sleeve included.
    ▪ 2 Years warranty.


    warning for COMI Landscape lighting's underwater pool lightWarning:
    ▪ Water must be allowed to go inside and outside sleeve freely without leaking from the other side.
    ▪ This IP68 luminaire made of SUS316 stainless steel,so DO NOT operate the lighting fixture out of water for over 15 minutes (cooling).

    Material Specifications

    Front cover & HousingMolding shaped stainless steel SUS316#
    Light WindowStep tempered glass.T=8mm
    GasketEPDM gasket
    Cable GlandIP-68 PG-11 copper with nickel-coated
    LensOptical lens,efficiency≥85%
    PCBExcellent heat conductivity aluminum.
    Coefficient of heat Conductivity≥2.0w/mk
    LED DriverConstant current output
    Single color LED=1-circuit output
    RGB 3in1 LED=3-circuit output
    Power CableH05RN-F 21.0mm2,L=3.0m(for single color)
    H05RN-F 4X0.75mm2, L=3.0m(for RGB)
    Application EnvironmentTemperature of water between -20˚C~40˚C,Underwater less than 1 meter depth.
    Mounting SleevePVC Mounting Sleeve (Included)
    Dimmable Support
    (Optional)
    Optional dimmable function support with DALI, 0~10V, PWM

    Technical Specifications

    Item Number
    Light Source
    CRI
    (White)
    Lens
    Selected Lens
    Degree (Θ1/2)
    Input
    Voltage(V)
    Typical Operating
    Current(mA)
    Typical Power
    Consumption(W)
    Typical
    Luminance(lm)
    B4XC0457
    4x2W
    Osram
    Ra>80
    B33D
    25°
    24Vdc
    371
    8.9
    Cool white=619
    Warm white=500
    08
    B4XC0418
    4x3W
    RGB 3-in-1
    Full Color
    Ra>80
    B34D
    30°
    24Vdc
    R=200
    G=215
    B=215
    15
    180
    08
    C4XC0457
    4x2W
    Osram
    Ra>80
    C8
    45°/3
    24Vdc
    371
    8.9
    Cool white=595
    Warm white=479
    08
    C4XC0418
    4x3W
    RGB 3-in-1
    Full Color
    Ra>80
    C8
    45°/3
    24Vdc
    R=200
    G=215
    B=215
    15
    162
    08

    Note: Specifications are subjected to change without notice.

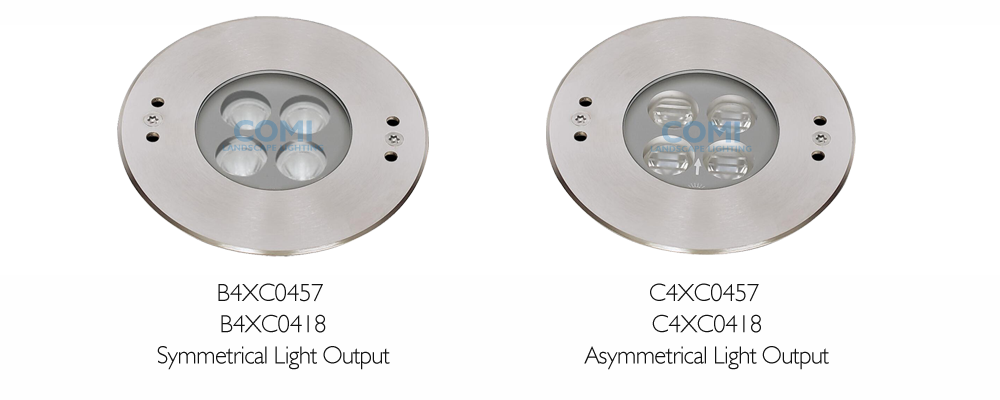

    B4XC0457 (Single color) or B4XC0418 (RGB) Symmetrical 4x2W ( or 3W) LED Swimming Pool Light

    Completely Stainless Steel SUS 316# Housing and Accessory


    C4XC0457, B4XC0457 LED Underwater pool lights


    Dimensional Drawing(Units:mm):

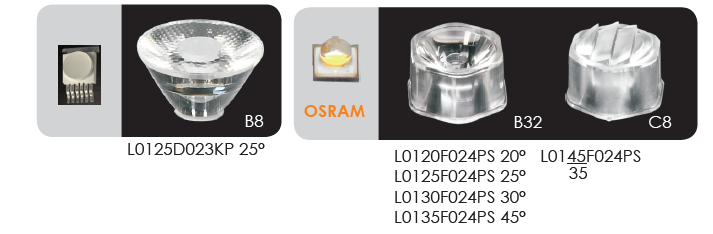

    Lens:


    lens for led pool lights

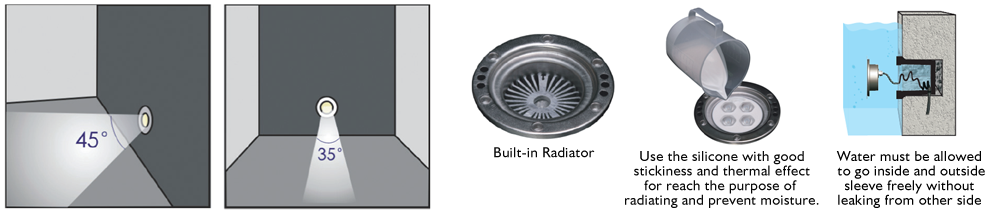

    Asymmetrical Light Output:

    asymmetrical lens 45/35degree for led pool lights

    asymmetrical light output light effect for led pool lights
