IP68 Linear LED Underwater Wall Washer Light 24VDC Working 24W/meter Mono RGB RGBW Color 75~100LM/W

The COMI LANDSCAPE LIGHTING B4RL-series IP68 LED underwater light provides 500mm(actual: 526mm) and 1000mm (actual:1026mm) linear design for option. this IP68 Underwater Linear light features linear aluminum heat sink built-in thicnkess T=5mm transparent PMMA tube, which enables the IP68 LED Linear Underwater lamp with excellent heat disipation. And This IP68 rated linear underwater light is surface mounted by SUS 316Ti stainless steel brackets, which the bracket offer 60degree beam direction adjustable. IP68 rate design is suitable as underwater light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Features and Benefits of High Brightness Output IP68 LED Linear Underwater Luminaire:
▪ 500mm(actual: 526mm) and 1000mm (actual:1026mm) length for options.
▪ Surface mounted on wall or ground by SUS 316Ti stainless steel brackets(included).
▪ Light quantity: 12pcs (500mm) and 24pcs (1000mm).
▪ LED: 24pcs 1W CREE high power LED.
▪ Color: single color(2700K, 3000K, 4000K, 5000K, 6000K and etc.), RGB, RGBW.
▪ Input voltage: 24VDC.
▪ Standard constant voltage 24VDC working, Optional constant current 350mA working.
▪ Beam angle: 10°, 30°, 120°.
▪ Materials: Aluminum alloy heat sing, PMMA tube cover, 316Ti stainless steel bracket.
▪ Beam direction adjustable angle of bracket: 60°.
▪ Support dimming with external remote type DALI, 1-10 V,DMX512 LED driver(NOT incl.)
▪ About Connection for this surface mounted IP68 LED underwater lamp:
(1) Connect the IP68 LED linear lights to power supply in parallel is advised.
(2) Max 5pcs 1meter IP68 LED underwater linear lights connected in series per run.
▪ IP68 waterproof, underwater installation in depth less than 1meter.
▪ CE, RoHS.
▪ 2 Years warranty.

Technical Parameters of IP68 LED Linear Underwater Lights in Single Color, RGB or RGBW:

Notes:
1. Single color: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K, or other color or Kelvin.
2. Customized made in length (with MOQ required), Light color, the length of poewer cable are available.
3. Standard versions are 24VDC constant voltage working, Optional 350mA constant current working.
4. Specifications are subjected to change without notice.

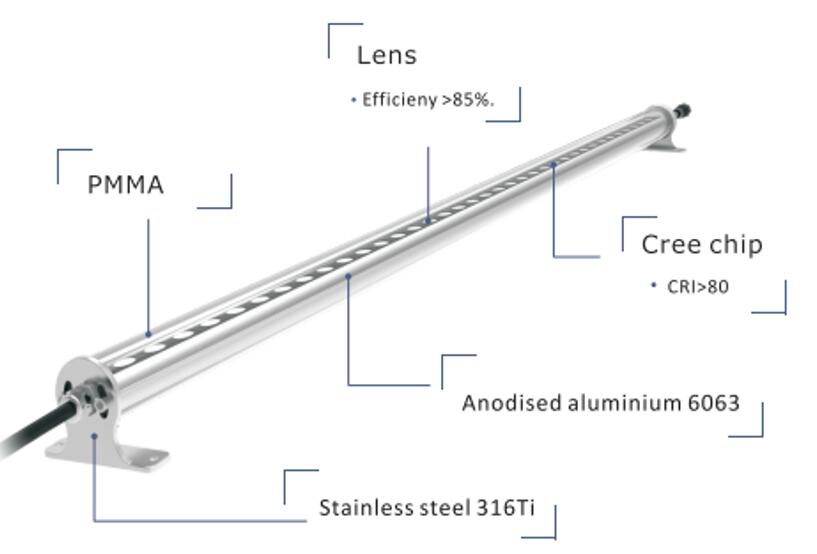

Schematic Diagram of the Product Structure for IP68 LED Underwater Linear Light:

Dimensional Drawing of IP68 Linear LED Underwater Lights (Units: mm):
