Silicone Flexible LED Wall Washer 360 Degree 18W Per Meter IP68 For
Outdoor Lighting
Descriptions:

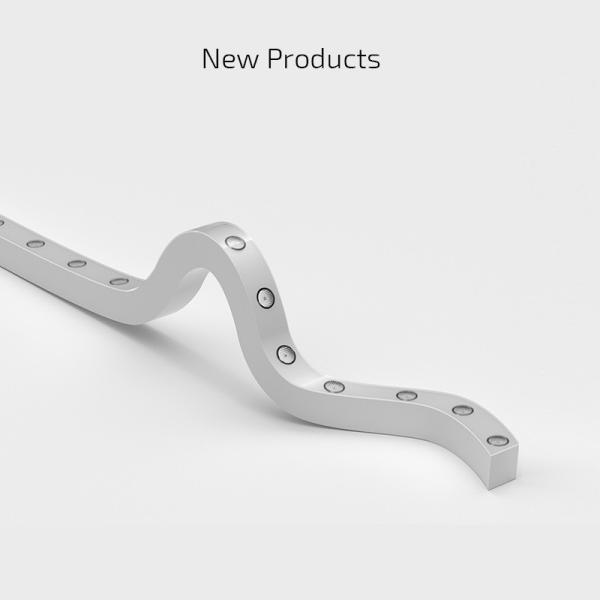

Silicone 3D optic SFW20 is a flexible LED wall washer strip light
and feature of being flexibly bent in both horizontal and vertical
360degree directions. It is well designed and structured with
built-in optical lens which is with different lighting beam angle
for options. With the cross section of 18x18mm and IP68 rated
design which enables SFW20 be widely used for various both indoor
and outdoor lighting applications, especially in lighting on the
curved wall and pillars.
Applications:
With free bending lighting and small/medium/wide beam angle for
options, 360 degree bendable flexible LED wall washer SFW20 is
widely used for both indoor and outdoor curve linear lighitng
application, such as: landscape lighting, cove lighting, mood
lighting, stair lighting, railings,architectural designs, home
decorative, holiday decoration and other customized project
lighting requirements.
Features and Benefits:
▪ Mini size with cross section of 18x18mm;
▪ Can be flexibly bent in both horizontal and vertical directions.
▪ Built-in optical lens with different beam angle:
15°, 20°, 25°,38°, 60°, 20°x 40°.
▪ Light source:CREE or LEDil SMD3535 LED, 24pcs/Meter.
▪ Operation voltage: low voltage 24VDC.
▪ Power consumption: 18W/Meter.
▪ Luminous flux: 500~1200LM/meter.
▪ Light color: 2200K, 2700K, 3000K, 4000K, 5000K, 5700K, Red, Blue,
Green.
▪ Min cutting unit:25cm (6LEDs).
▪ Max length per piece:
(1) Single end power feed: 5meters(16.4');
(2) Double ends power feed: 10meters(32.8').
▪ Entry cable connector type: bottom entry cable connector.
▪ Housing material: environmental friendly silicone.
▪ IP rated: IP68, even can be underwater use.
▪ 3 years or 5 years warranty.
▪ CE, RoHS compliance.
Free-bending structure design flexible silicone wall washer is
perfectly fit the outdoor curved surfaces of various radians to
achieve the wall-washing effect. Adopt one-piece extrusion molding
process, waterproof grade IP68, patented optical structure design,
rich light-emitting angles are optional, meet various installation
spaces, and have good flexibility. It is with small size, light
weight, bendable freely and easy to install, he 360 degree bendable
wall washer is used for replacing traditional hard wall washer or
LED strip.
Technical Parameters for IP68 Horizontal & Vertical Bending
Flexible LED Wall washer:
| Item Number | SFW20-24V-3535-24-XX (Note: XX stands for different CCT or color) |
| Cross Sectional Diemsion | 18x18mm |
| Max Length per piece | 5 meters (single end power feed) , or 10meters (Dual ends power feed) |
| Input voltage | 24VDC |
| Power(W/meter) | 16W/Meter (max 18W/meter) |
| Luminous Flux(LM/M) | 500LM~1300LM per Meter |
| Light Source | CREE or LEDil 3535 SMD LED, 24LEDs/meter |
| CRI(Ra) | Ra>80 (for 2200-6000K only) |
| Light Color or CCT(K) | 2200K, 2700K, 3000K, 4000K, 5000K, 5700K, Red, Blue, Green |
| Optional Beam Angle | 15°, 20°, 25°,38°, 60°, 20°x 40°(standard). |
| Min Cutting Unit | 25cm(6LEDs) |
| Min Bending Diameter | 250mm, Can be Horizontal & Vertical Bending Direction |
| Connector Cable Entry Type | Bottom Entry cable connector |
| Housing Material | Silicone |
| Mounting Way | Mounted by Aluminum profile |
| IP Class | IP68 |
| IK Rate | IK08 |
| Storage Temperature | 0°C to 50°C |
| Operating Temperature | -40°C to +55°C |
| Certificate | CE, RoHS |
| Warranty | 3Years (standard) or 5 years |
Note: Specifications are subjected to be changed without notice
Dimension and Bending of IP68 Mono Color Silicone Flexible LED Wall
Grazer:
Light Distribution Curve of IP68 Single Color Silicone Flexible LED Wall Washer with Optical
Lens:
