100 Watt Led Flood Light outdoor Spot With U-type Brakcet 2.6°,3.5°,6° Ultra-narrow beam

IP66 LED projector, floodlight and wall washer featured with optional extensive mounting accessories, optic lens types and angles, and control methods which enables it to be easy to install in and meet a wide variety of outdoor applications. Ideal for illuminating different kinds of buildings, landscape and objects on accent lighting, architectural lighting, landscape lighting and garden lighting.


Features and Benefits:
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.

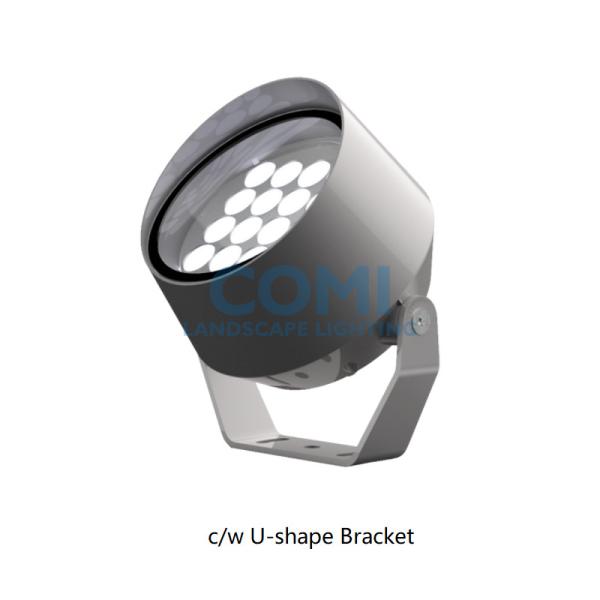

▪ With optional extensive mounting accessories:
(1) Mounting plate(round base); (2) spike; (3)tree strap; (4)U-shape bracket;
(5)pole arm mounting part; (6)Pole mounting hoop, (7)pole mounting screws fixed part.
▪ Various lens types and angles for options for different light distributions:
(1) 2.6°, 3.5°, 5°, 6°,8°,12°, 15°, 20°, 30°, 45°, 60°,15×60°,5×20°,10×70° and etc.
(2) Light distributions: narrow spot, spot, flood, wide flood, or wall wash.
▪ Light Source: CREE or Osram high power LED or COB LED.
▪ Color: 2700-6500K, RGB,RGBW and etc.
▪ High light efficiency(white): 85~110LM/W.
▪ Optional Control support: ON/OFF, 0-10V or DALI Dimming, DMX512.
▪ Degree scale hinge for precisely aligned and adjustable.
▪ 90° tilt, 300° rotation; or 120° tilt, 360° rotation.
▪ Luminaire with visor for anti-glare.
▪ Optional Honeycomb louver and other lighting accessories for anti-glare light output.
▪ Double powder-coated Corrosion-resistant Die-casting aluminum housing.
▪ Finished color: RAL9023 Pearl dark grey.
▪ IP rate: IP66 rated for outdoor use.
▪ Ambient Temperature: -25℃∽+50℃
▪ 3- or 5-years warranty.

Technical Parameters for IP66 Outdoor LED Architectural Flood Light:

Note: "X" in item Number of exterior LED flood lights stands for mount accessories, please view detail in this page.

1. 24VDC and PWM protocol working upon request.
2. Colors: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
3. DMX512, DALI,0/1-10V dimming or controllable support upon request;
4. Specifications are subjected to change without notice.

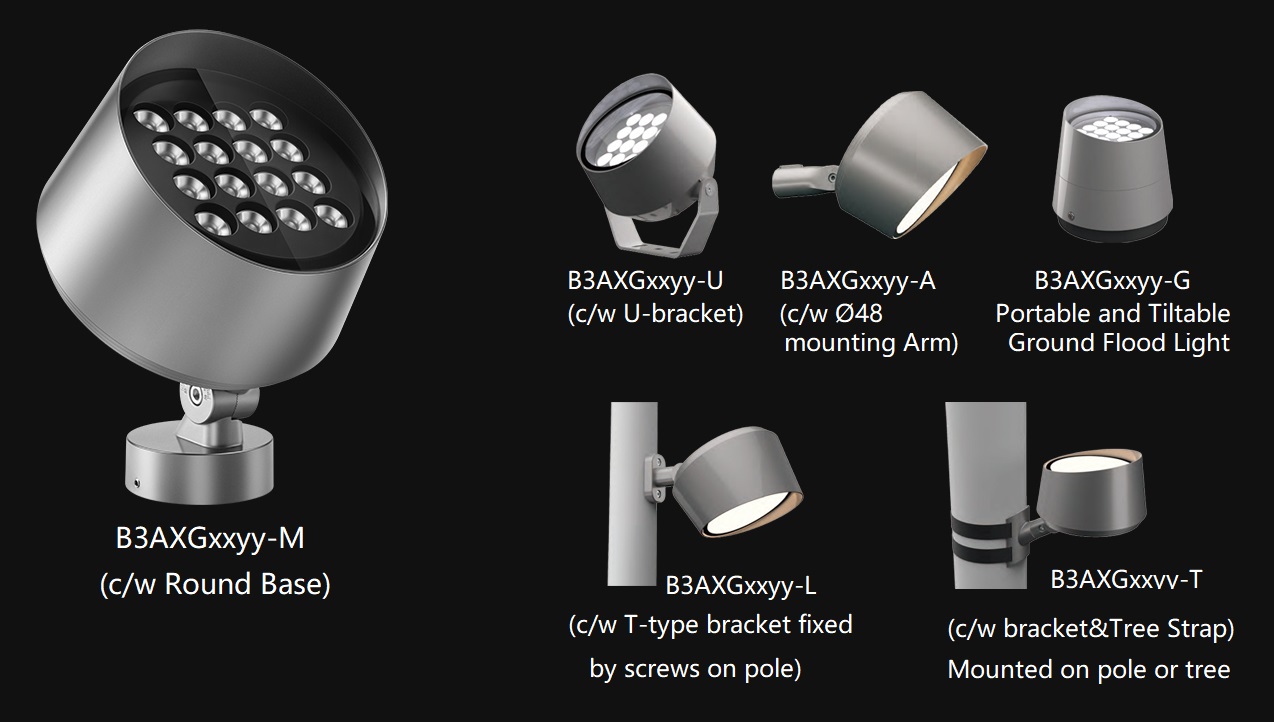

Floodlight with other mounting accessories for options:

Note: "X" in item Number of exterior LED flood lights stands for mount accessories, please view detail below.

Name of Mounting Parts	Round Base (Mounting Plate)	U-shape Bracket	Ø48 pole mounting Arm	Pole mounting hoop	Bracket with tree Strap
Mounting Ways	Surface Mount on ground/wall/ceiling	Surface Mount on ground/wall/ceiling	Pole mount	Mount on pole by Clamping	Mount on tree or pole by tree Strap
Code No. of Mounting Parts (X)	M (or B)	U	A	H ( or C)	T

Optional Accessories:

Note:
Standard products are NOT included these accessories: honeycomb louver, reeded glass(also named as stripe glass, or honeycomb glass), round-meshed grille. Please inform us if you need these optional accessories for the product in your order.

For more detail introduction and light effect of narrow spot, flood and wall washing of our Anole-X series products, please go to this link in our website>> IP66 LED Projectors, Floodlights and Wall washers for Accent lighting, Architectural Lighting, Landscape lighting and Garden lighting
