High Intensity Led Flood Lights With U-Shaped Bracket And
Anti-Glare Visor 85W 120W 150W 200W
IP66 Outdoor Architectural and Landscape Flood lights with
Extensive Optional Mounting Accessories to Meet Various Kinds of
installation for Different lighting Applications (Mounting
Accessories Code "X" in item number B3AXH25120-X):
COMI LANDSCAPE LIGHTING's IP66 LED projector, floodlight and wall
washer featured with optional extensive mounting accessories, optic
lens types and angles, and control methods which enables it to be
easy to install in and meet a wide variety of outdoor applications.
Ideal for illuminating different kinds of buildings, landscape and
objects on accent lighting, architectural lighting, landscape
lighting and garden lighting.
Features and Benefits:
▪ High luminous flux and maximum visual comfort for lighting tasks
in the outdoor area.

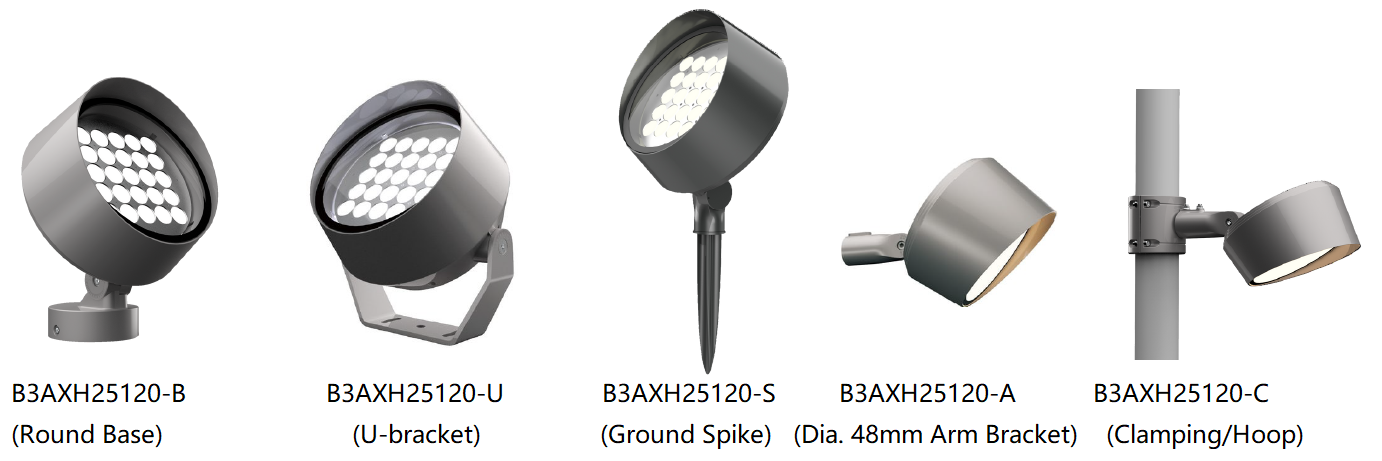

▪ With optional extensive mounting accessories:
(1) Mounting plate(round base); (2) spike; (3)tree strap;
(4)U-shape bracket;
(5)pole arm mounting part; (6)Pole mounting hoop, (7)pole mounting
screws fixed part.
▪ Various lens types and angles for options for different light
distributions:
(1) 2.6°, 3.5°, 5°, 6°,8°,12°, 15°, 20°, 30°, 45°,
60°,15×60°,5×20°,10×70° and etc.
(2) Light distributions: narrow spot, spot, flood, wide flood, or
wall wash.
▪ Light Source: CREE or Osram high power LED or COB LED.
▪ Color: 2700-6500K, RGB,RGBW and etc.
▪ High light efficiency(white): 85~100LM/W.
▪ Optional Control support: ON/OFF, 0-10V or DALI Dimming, DMX512.
▪ Degree scale hinge for precisely aligned and adjustable.
▪ 90° tilt, 300° rotation; or 120° tilt, 360° rotation.
▪ Luminaire with visor (also named as snoot or hood) for
anti-glare.
▪ Optional Honeycomb louver and other lighting accessories for
anti-glare light output.
▪ Double powder-coated Corrosion-resistant Die-casting aluminum
housing.
▪ Finished color: RAL9023 Pearl dark grey.
▪ IP rate: IP66 rated for outdoor use.
▪ Ambient Temperature: -25℃∽+50℃
▪ 3- or 5-years warranty.
Technical Parameters for IP66 LED Flood light with round
base/mounting plate and visor:
| Item Number | Optional Control Method | Light Source | Color | Lens Degree (Θ1/2)(°) | Input Voltage (V) | Rated Power (W) | Typical Luminous Flux (LM)±8% | IK Rate |
| B3AXH25120-X | ON/OFF, DALI, 0-10V | 25×5W CREE LED | Single Color | 2.6°,3.5°,6°, 12°, 20°, 30°, 45°, 60° 10×70°, 5×20° | 100-264VAC, 50/60Hz | 120W | 11520LM | IK08 |
| B3AXH25085-X | ON/OFF, DALI, 0-10V | 25×4W CREE LED | Single Color | 2.6°,3.5°,6°, 12°, 20°, 30°, 45°, 60° 10×70°, 5×20° | 100-264VAC, 50/60Hz | 85W | 7650LM | IK08 |
| B3AXH24200-X | DMX512/ RDM | 24×5W CREE LED | RGBW 4-in-1 Color | 6°, 15°, 20°, 30°, 15×60° | 36VDC, 100-264VAC, 50/60Hz | 200W (150W) | 9400LM | IK08 |
| B3AXH72150-X | DMX512/ RDM | 72×2W CREE LED | RGB (24R/24G/24B) | 5°, 8°, 12.5°, 30°, 10×60° | 36VDC, 100-264VAC, 50/60Hz | 150W | 5750LM | IK08 |
| B3AXH72150-X | DMX512/ RDM | 72×2W CREE LED | RGBW (18R/18G/ 18B/18W) | 5°, 8°, 12.5°, 30°, 10×60° | 36VDC, 100-264VAC, 50/60Hz | 150W | 7050LM | IK08 |
Notes:
1 Colors: Very warm white(2200k), Warm White(2700-3000K)/ Neutral
White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW
and etc.
2. DMX512, DALI,0/1-10V dimming or controllable support upon
request;
3. Specifications are subjected to change without notice.
Optional Accessories:
Note:
Standard products are NOT included these accessories: honeycomb
louver, reeded glass(also named as stripe glass, or honeycomb
glass), round-meshed grille. Please inform us if you need these
optional accessories for the product in your order.
For more detail introduction and light effect of narrow spot, flood
and wall washing of our Anole-X series products, please go to this link in our website>>
IP66 LED Projectors, Floodlights
and Wall washers for Accent lighting, Architectural Lighting,
Landscape lighting and Garden lighting
Applications:
Accent lighting, architectural lighting, landscape lighting and
garden lighting.
