500lm/M Led Neon Rope Light 48V 24V 12V PWM Dimming DMX512 SPI

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	F15
Certification :	CE ROHS
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1,000,000Meters/Month
Delivery Time :	3~20days

Add to Cart

Product Details
Company Profile

500lm/M Led Neon Rope Light 48V 24V 12V PWM Dimming DMX512 SPI

Features and Benefits:
▪ Mini size: W11.5*H21mm, length can be customized made.
▪ Opal white diffuser and Side view light enables uniform,soft and dot free light output.
▪ Horizontable bending design and min dia. 80mm bending.
▪ High brightness output up to 490LM/meter.
▪ Seamless connection support.
▪ Light color available: Single color, tunable white, RGB, RGBW
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Control Mode options: PWM, Dimming, DMX and SPI.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Connector type:
(1) IP67 DIY screws type connector; (2) IP67 Snap type connectors;
(3) IP68 Injection moulded connector.
▪ Entry cable way for neon LED flex:
(1)Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.
▪ Provides various smart accessories for mounting and installation.
▪ Max continuous length per run: 7~30Meters.
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.

Important Notes for neon LED flex when underwater use:
1. Please select injection moulded connector and the depth under water is <2 Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.

Technical Specifications for Single color and Tunable white IP68 F15 Neon LED Strip Lights Horizontal Bending:

Model Number

(Color Type)

Working

Mode

Optional

Color/

Color Type

Working

Voltage

Power

(W/meter)

Luminous Flux (LM/meter)

LED Type

LED Q'ty

(pcs/meter)

CRI

(Ra)

Beam

Angle

Min

Cutting Unit

Max Length Per run (Meters)

One End

Power Feed

Double Ends

Power Feed

F15-24V-5050-60-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

BL,GN,LY, PK

24VDC

12W/M

280~450LM

(White color)

5050

3-IN-1 LED

60LEDs/m

Ra≥80

120°

10cm

(3.93in)

(6LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

F15-24V-5050-60-XX

(Single Color)

CV,

ON/OFF,

Dimming

RD,AM,OR

24VDC

7.2W/M

AM: 57/M;

RD:116LM

OR:22LM

5050

3-IN-1 LED

60LEDs/m

Ra≥80

120°

10cm

(3.93in)

(6LEDs)

15Meters

(49.2ft)

30Meters

(98.4ft)

F15-48V-5050-60-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

BL,GN,LY, PK

48VDC

10W/M

430~480LM

(White color)

5050

3-IN-1 LED

60LEDs/m

Ra≥80

120°

25cm

(9.84in)

(15LEDs)

20Meters

(65.6ft)

40Meters

(131.2ft)

F15-24V-5050-72-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

BL,GN,LY, PK

24VDC

13W/M

270~420LM

(White color)

5050

3-IN-1 LED

72LEDs/m

Ra≥80

120°

8.33cm (3.28in)

(6LED)

8Meters

(26.25ft)

16Meters

(52.5ft)

F15-24V-3528-72-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

RD, BL,GN, AM, PK, OR

24VDC

5W/M

120~160LM

(White color)

3528

72LEDs/m

Ra≥80

120°

16.67cm (6.6in)

(6LED)

15Meters

(49.2ft)

30Meters

(98.4ft)

F15-12V-3528-72-XX

(Single Color)

CV,

ON/OFF,

Dimming

2200~6500K,

RD, BL,GN, AM, PK, OR

12VDC

5W/M

120~150LM

(White color)

3528

72LEDs/m

Ra≥80

120°

8.33cm (3.28in)

(6LED)

7Meters

(22.96ft)

14Meters

(45.9ft)

F15-24V-2835-72-CC-XX

(Constant Current & Single Color)

CC,

ON/OFF,

Dimming

2200~6500K,

BL,GN,LY, PK

24VDC

10W/M

240~300LM

(White color)

2835

72LEDs/m

Ra≥80

120°

16.67cm (6.6in)

(6LED)

15Meters

(49.2ft)

30Meters

(98.4ft)

F15-24V-2835-120-TW

(Tunable White color)

CV,

ON/OFF,

Dimming

2200k+5000K,

3000K+5000K,

or Customized

24VDC

15W/M

220LM+240LM

2835

120LEDs/m

Ra≥80

120°

10cm

(3.93in)

(12LEDs)

10Meters

(32.8ft)

20Meters

(65.6ft)

Notes:
1.About light color for neon LED strip:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.

The above technical parameters are for F15 single color and tunable white (Dual color or Color temperature adjustable) Neon LED flex only, for details about RGB, RGBW, DMX and SPI versions F15 Neon LED Strip, please click below links:
(1) RGB and RGBW F15 Neon LED Strip.
(2) DMX or SPI Dynamic Pixel or Addressable or Programmable F15 LED Neon Flex.

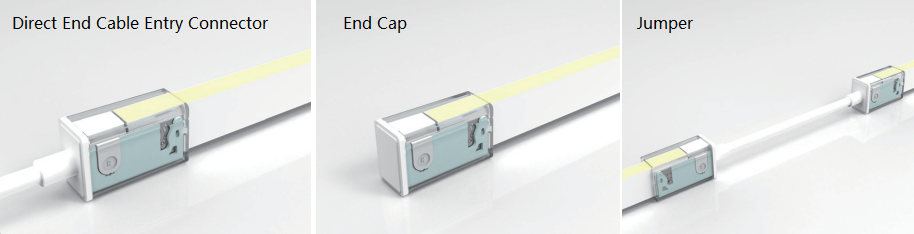

IP68 Injection molded Connector for F15 Neon LED Strip Lights for Both Indoor and Outdoor Applications:

500lm/M Led Neon Rope Light 48V 24V 12V PWM Dimming DMX512 SPI

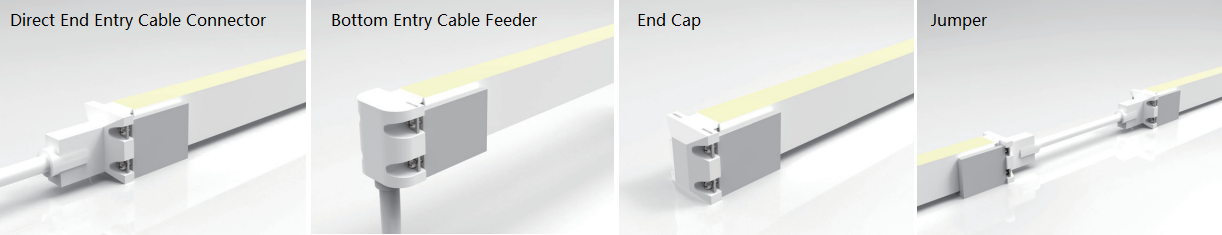

IP67 DIY Snap Connector for F15 Flexible LED Neon Strip:

500lm/M Led Neon Rope Light 48V 24V 12V PWM Dimming DMX512 SPI

IP67 DIY Screws Connector for F15 LED Neon Flex:

500lm/M Led Neon Rope Light 48V 24V 12V PWM Dimming DMX512 SPI

Mounting Profile or Clip for F15 Neon Flexible LED Strip:

500lm/M Led Neon Rope Light 48V 24V 12V PWM Dimming DMX512 SPI
