The HDMI sync box and Ambient Light Kit enables the RGB colorful
changing effect of back lighting LED strip synchronously changes
according to the display color of TV or screen,which brings you a
thoroughly immersive experience on backlighting colorful changing
effect, fabulous vision and sound feast in watching movies or
playing games. It is a great choice for movie, music and games
enthusiasm people.
Features:
▪ Immersive Viewing Experience:HDMI sync control box can
synchronize the backlighting led strip according to color changing
of TV screen,and automatically applies to your TV back lights.
▪ Smart Voice and phone Control:Manage your smart lights with
simple voice commands, via Alexa and Google Assistant, or with the
Tuya app. Enjoy access to more colors and features like Timer, and
Music mode, helping you create the ambiance you need.
▪ Dynamic Light Effects:Sync screen mode and music mode,the full
color changeable and 12kinds of interesting modes:like
Rainbow,breathe effects.
▪ Enhanced Music Mode:The control box of the smart TV LED Lights
strip is equipped with a built-in mic, which enables the LED strip
color changing synchronizely according to music. Choose from 3
modes (Rhythm, Spectrum, Electronic music) and makes your parties
with vibrant dancing colors.
▪ Install Easily and suitable for all size HDMI devices:Tear off
the adhesive and follow the specification to install,and it is
suitable for big size device,like 120inches TV screen.

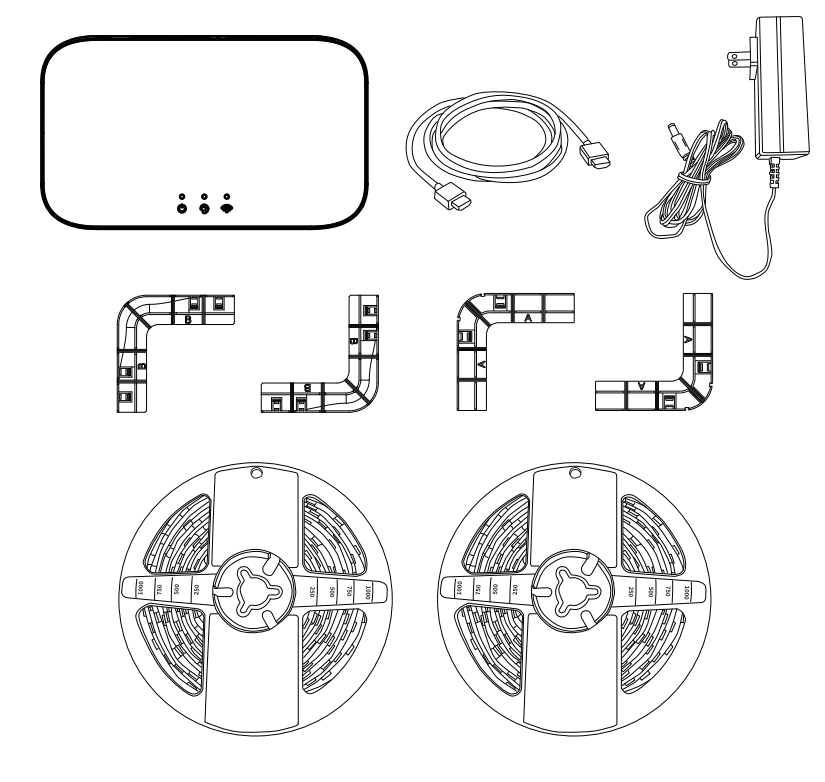

General Specifications:
|
TV Size | Item List*Quantity | Specification |
| For 90-120” TV | Full color RGB led strip*2rolls | ▪ 30leds/M,4M as a roll
▪ DC12V Input
▪ 10mm Black PCB
▪ Free-Lead solder
▪ IP65 PU Glue waterproof
▪ 9448A Black adhesive glue tape
▪ One side outlet-1M length USB connector |
| For 65-90″ TV | Full color RGB led strip*2rolls | ▪ 48leds/M,3.0625M as a roll
▪ DC12V Input
▪ 10mm Black PCB
▪ Free-Lead solder
▪ IP65 PU Glue waterproof
▪ 9448A Black adhesive glue tape
▪ One side outlet-1M length USB connector |
| For < 65" TV | Full color RGB led strip*2rolls | ▪ 60leds/M,2.35M as a roll
▪ DC12V Input
▪ 10mm Black PCB
▪ Free-Lead solder
▪ IP65 PU Glue waterproof
▪ 9448A Black adhesive glue tape
▪ One side outlet-1M length USB connector |
| For 65-120″ TV | Synchronous lighting control box*1pc | ▪ DC12V Input
▪ Input signal:HDMI
▪ Output signal:USB SPI
▪ Size:5.51*3.23*0.39 inch(L*W*H)
▪ Pixel Quantity:150pixels/output,Total 300pixels |
| HDMI Cable*1pc | ▪ 1M length
▪ Rate:4K*2K/60Hz
▪ Audio channel:32 CH
▪ Compatible version:2.0 Version |
| AC Power Adapter*1pc | 12V*4A |
| Fixing Brackets for led strip corner*4pcs | |
| Fixing Brackets for led strip corner*4pcs |

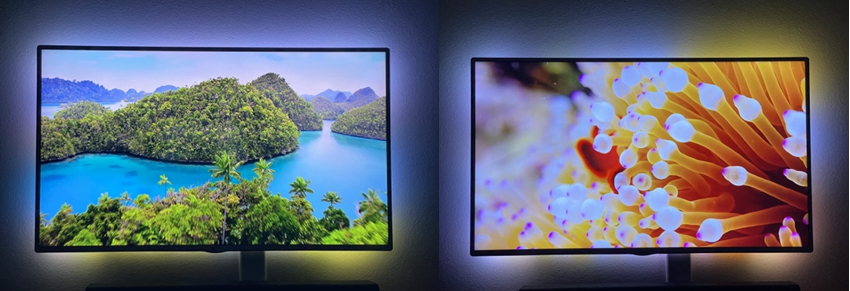

Immersive experience in watching movies or playing games:Living room/Bathroom/Game room
FAQ:
Q: Problem: there is no connection or any response after plugging
in?
A:Please check your sources resolution is within or equal to
4K/30P,if not, it won’t support.
Check the HDMI cable and connection with the input port.
Try resetting the item, there is reset mark on the Sync box.
Please contact us immediately, we’d address it for you.
Q: How to attach the light strip when going to the two corners?
A: Just let it go along the edge, it doesnot matter though it gets
inclined or unstraight.
Q: Problem: The light strips fail to light on or the light is NOT
changing Synchronizely according to the color changing of the
screen.
A: Please check led strips connection to SIDE and BOTTOM USP port
in the L and R type. Meanwhile just contact us, we’d address this
and offer you solutions.
Q: Problem: No indicator on for the sync box when plugging with the
power supply.
A: Go check the power supply cable and plug in with different
plugs. Meanwhile just contact us, we’d address this and offer you
solutions.
