IP67 wateroroof 220-240V AC High voltage flexible LED strip for indoor or outdoor lighting applications

Features:

1.Each cuttable segment with high voltage constant current IC on board to ensure every LEDs are constant current working under the ripple voltage.
2.With bridge rectifier on board design, each segment can work individually, which enable LED strip with lower temperature, higher reliability and stronger anti-surge capability
3.2OZ FPC, the LED strip can be cut at the printed marks;every 10cm (12LEDs/group) cuttable.
4.High luminous efficacy with 2835 SMD LED as its light source.
5.Higher safety performance, all of our such series of products be made by extrusion technology with food grade silicone, no yellowing, no cracking
6. Protection grade: IP67 waterproof.
7.CE certificated, RoHS compliant
8. Warranty:3 years.

Parmaters for High Voltage LED Tape:

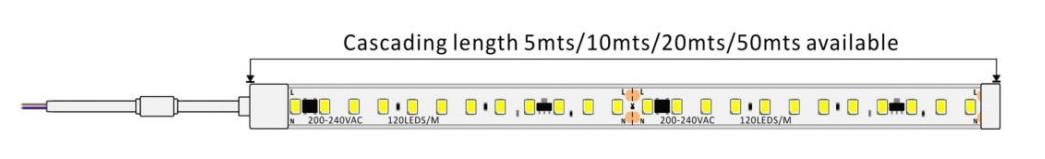

Dimensional Drawing for High Voltage LED Rope Light:

Important Notice for 220-240VAC High Voltage LED Strip light:

1.The installation should be performed by a qualified person.

2.Connect wires exactly according to the diagram.
3.The surface where LED strips will be installed must be clean and smooth for easy sticking of 3M otherwise the strip will drop off.
4.To prevent the strips from damaging or even affecting its lifespan, when installing, the crooked comer ofstrips must not be in the position where there are LEDs or other electronic components.
5.After confirming the LED strip is well-positioned, press the strips with an appropriate force.

6. Do not touch LED strips with a sharp instrument.
