DMX512 Sqaure LED Flood Lights 24VDC With Optional Honeycomb Louver

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	B3TSA16XX, B3TSB24XX,B3TSC36XX,
Certification :	CE, ROHS, EMC,LVD
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100000pcs per month
Delivery Time :	3-20days depends on order quantity

Add to Cart

Product Details
Company Profile

DMX512 Sqaure LED Flood Lights 24VDC With Optional Honeycomb Louver

Sqaure IP65 LED Flood light with Optional Honeycomb Louver 24VDC 110-240VAC ON/OFF DMX512

The lamp body of IP65 Flood lighting fixtures adopts a unique and simplify design concept,the lamp surface self-leveling design enables the surface without matter deposition, to avoid less maintenance and cleaning of lamps. Configured with CREE/OSRAM/ original high-power light source,with excellent lightcolor performance, temperature resistance, high light transmission,flame retardant optics, withlens built-in technology to minimize glare, stray light, optional honeycomb anti-glare grille.

Material specifications:

Housing	Aluminum anodized finishing or powder painting
Lens	Optical lens, efficiency ≥ 85%
Glass	Tempered glass. T=3mm
Cable gland	Copper and nickel coated
Gasket	Tooling shaped seal
LED	TO type power LED for RGB, single color is Osram LED
PCB	Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
Driver	Constant current output
Operating temperature	-20℃~40℃
Power cable	Constant current output Single color LED=1-circuit output RGB 3in1 LED =3-circuit output
Cable	H05RN-F 2X1.0mm², L=0.5m (low voltage) H05RN-F 3X0.75mm², L=0.5m (high voltage) H05RN-F 4X0.75mm², L=0.5m (for RGB)

Technical Specifications for IP65 LED Floodlights for outdoor Landscape lighting, garden lighting, architectural lighting

Product Code	B3TSA1257	B3TSB2457	B3TSC3657
Operating Voltage	24VDC, 110-240VAC	24VDC, 110-240VAC	24VDC, 110-240VAC
Power	16W, 32W	24W, 48W	36W, 72W
Light Color	Single color: 2200-6500K, Red, Blue, Green and etc. (RGB Color is available)
Light Efficiency	90-110LM/W	90-110LM/W	90-110LM/W
LED Brand	CREE, OSRAM	CREE, OSRAM	CREE, OSRAM
LED Quantity	16PCS	24PCS	36PCS
Beam Angle	5/10/15/25/45/60/90°	5/10/15/25/45/60/90°	5/10/15/25/45/60/90°
Control Method	ON/OFF, DMX512	ON/OFF, DMX512	ON/OFF, DMX512
IP grade	IP65	IP65	IP65
LED Driver	Constant current Driver	Constant current Driver	Constant current Driver
Lamp Size	Dia. 140*H160mm	Dia 185*H190MM	Dia. 215*H200MM

Applications:

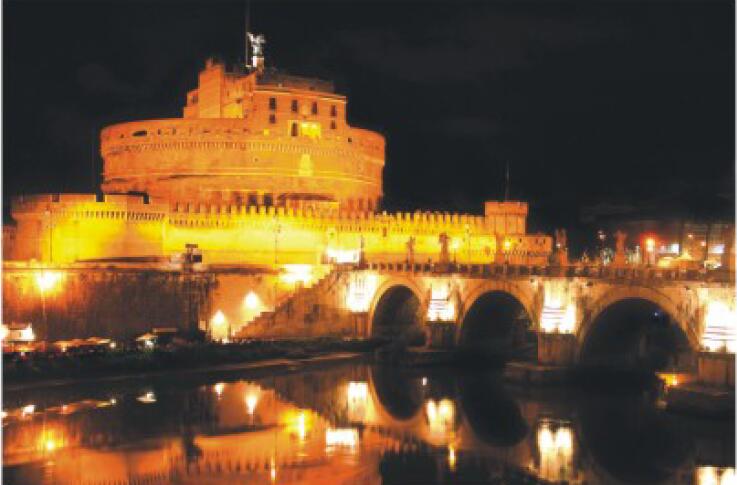

The floodlight is a luminaire that provides more illumination on a given illuminated surface thanthe surrounding environment. It can usually be aimed in any direction and has a constructionthat is not affected by weather conditions.The products are widely used in building silhouettes, stadiums, overpasses,monuments,parks and flowerbeds. Therefore, almost alllarge area lighting fixtures used outdoors can be regarded as floodlights.
