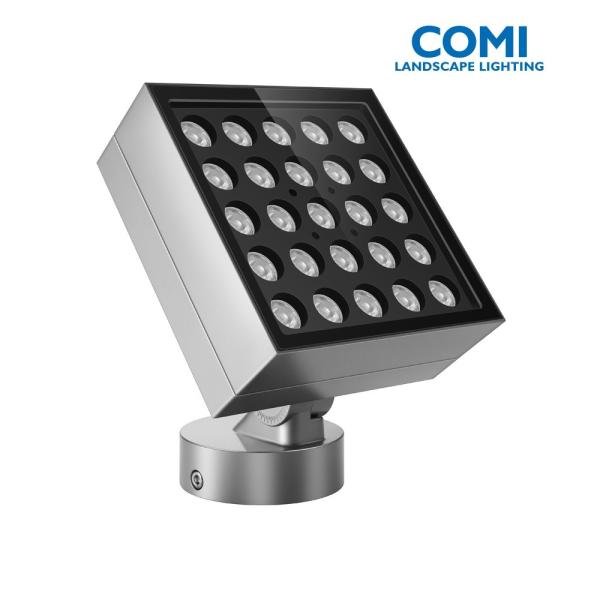

IP66 Exterior LED Floodlights 120W 150W 200W Single Color RGBW DMX With High Brightness For Outdoor Landscape Lighting
Features:
▪ Optional function: lighting beam angle and brightness adjusted by touch screen.
▪ Uniform light spot, no hollow, no edge yellow spots.
▪ Color: single color, RGBW (Tunable white or RGB are available).
▪ High light efficiency: 80~100LM/W.
▪ Ultra narrow beam angle to wide beam angle for options:
2.5°, 4.5°, 6°, 8°, 12°, 20°, 30°, 45°, 60°,10X70°,5X20°,15X60° and etc.
▪ Smart Product parts can be quickly disassembled and exchanged:
(1) to meet different kinds lighting application installation requirement;
(2) It is convenient for long-distance upgrade and maintenance.
▪ Optional smart Product parts:
(1) Round base; (2) Spike (Stake); (3) U-shape Bracket; (4) Pole mounted hoop;
(5) Dia. 48 lamp arm; (6) Bracket with Tree strap; (7) Pole mounted screw Fixed parts.
(8) Optional hood (also named as light shield, light barrier, or Light visor);
(9) Honeycomb louver for anti-glare light output.
▪ Optional ON/OFF(CC), 0-10V, DALI, DMX 512/RDM Control Support.
▪ Protection grade IP66, suitable for outdoor harsh environments.
▪ Ambient Temperature: -25℃∽+50℃
▪ Ambient Humidity: 10%∽90%
▪ 3- or 5-years warranty.
Technical Specifications for Garden flood lights
| Item No. | Control Mode | Color | Light Source | Beam Angle (Θ1/2)(°) | Input Voltage | Rated Power | Luminous Flux (lm)@4000K | IK Rate |
B3ZF25120-X
B3ZF25150-U | CC, DALI, 0-10V | Single Color | 25pcs Cree or Osram LED | 2.5°, 4.5°, 8°, 12°, 20°, 30°, 45°, 60°, 10×70°5×20° | 100-305VAC 50/60Hz | 120W, 150W(U) | 10000~15000LM | IK10 |
B3ZF24150-X
B3ZF24200-X | DMX512/ RDM | RGBW 4-in-1 Full Color | 24pcs Cree 4-in-1 LED | 8°, 15°, 20°,30°, 15×60° | 36VDC, or 100-305VAC 50/60Hz | 150W, 200W | 5000~7000LM | IK10 |
B3ZF24150-X
B3ZF24200-X | DMX512/ RDM | RGBW 4-in-1 Full Color | 24pcs Osram 4-in-1 LED | 3.5° | 24VDC, or 100-305VAC 50/60Hz | 150W, 200W | 5000~7000LM | IK10 |
B3ZF48120-X
B3ZF48150-U | CC, DALI, 0-10V | Single Color | 48pcs Osram LED | 6°, 15°, 20°, 30°, 45°, 20×40°, 15×25° | 36VDC, or 100-305VAC 50/60Hz | 120W, 150W(U) | 10000~15000LM | IK10 |
| B3ZF48120-X | DMX512/ RDM | RGBW 4-in-1 Full Color | 48pcs Osram LED | 6°, 15°, 20°, 30°, 45°, 20×40°, 15×25° | 36VDC, or 100-305VAC 50/60Hz | 120W | 10000~12000LM | IK10 |
| Z3ZF96120-X | Touch Panel/ Screen | Single Color | 96pcs Cree LED | 7～36° Photoelectron zoom | 24VDC, or 100-305VAC 50/60Hz | 120W | 10000~12000LM | IK10 |
| B3ZF04120-X | DMX512/ RDM | Single Color | 4pcs Cree COB LED | 12° , 24° , 36° , 70° | 100-305VAC 50/60Hz | 120W | 10000~12000LM | IK10 |
Notes:
1. (U) in rated power stands for "U-shape bracket model only";
2. Color: single color, tunable white, RGB, RGBW are available upon request.
3. Specifications are subjected to change without notice.
Photoelectron zoom Functional Zoomdim series LED flood lights with pan-and-tilt mounting plate for precisely aligned for projection angle
0-90degree adjustable project angle

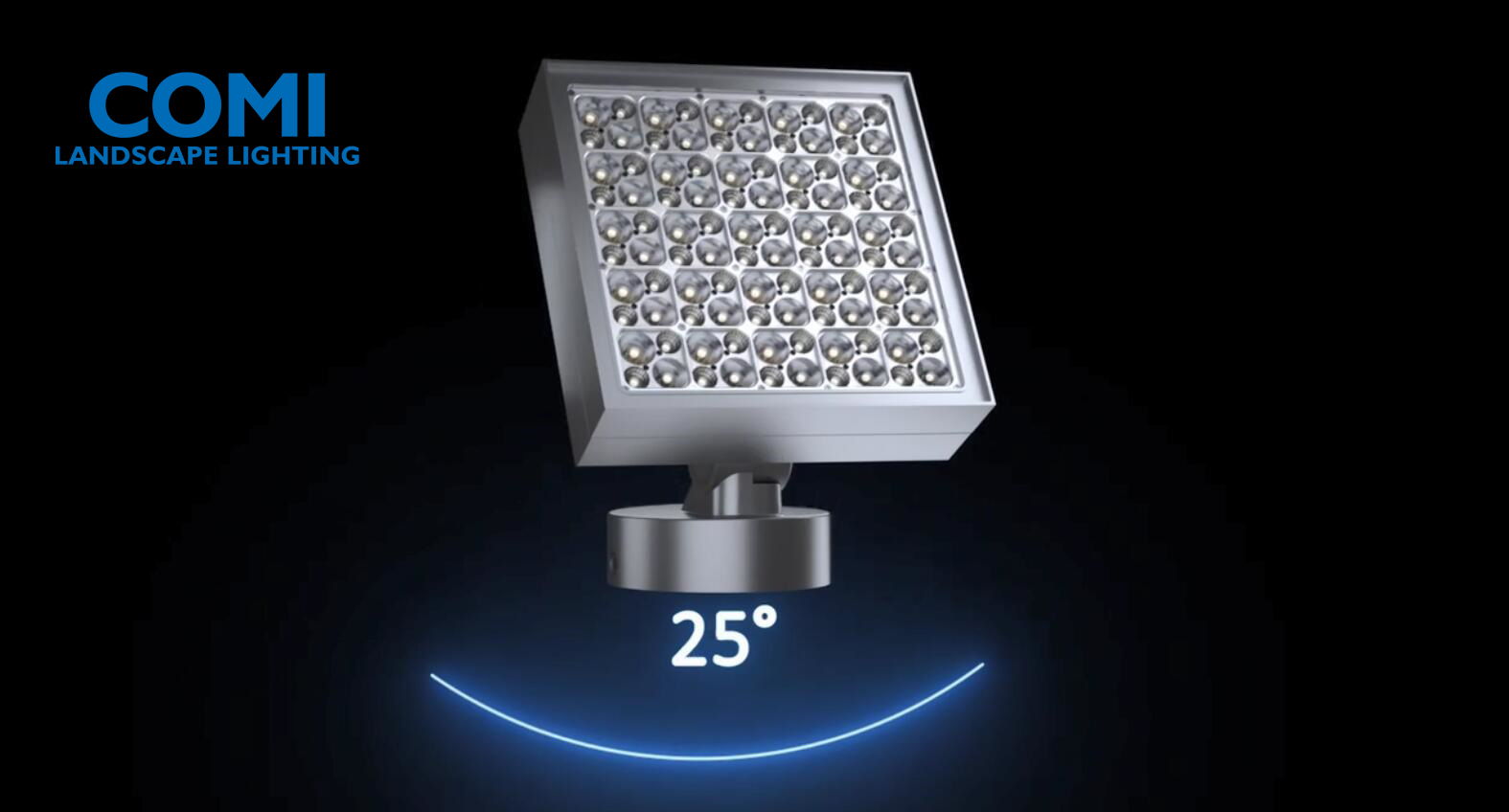

LED Flood Light with horizontal -25degree to +25degree adjustable projection direction angle

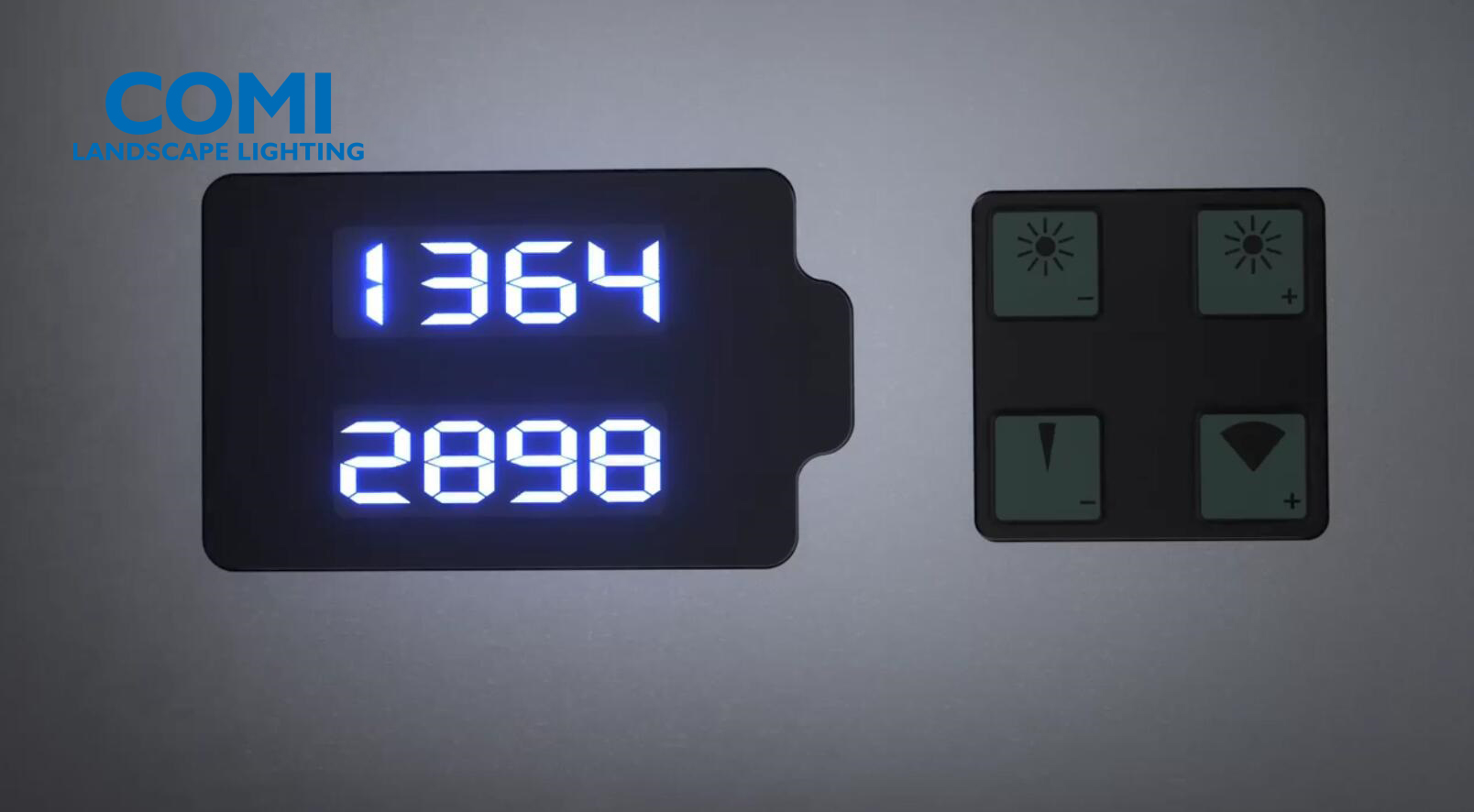

Touch screen panel on back of the zoomdim LED flood lights

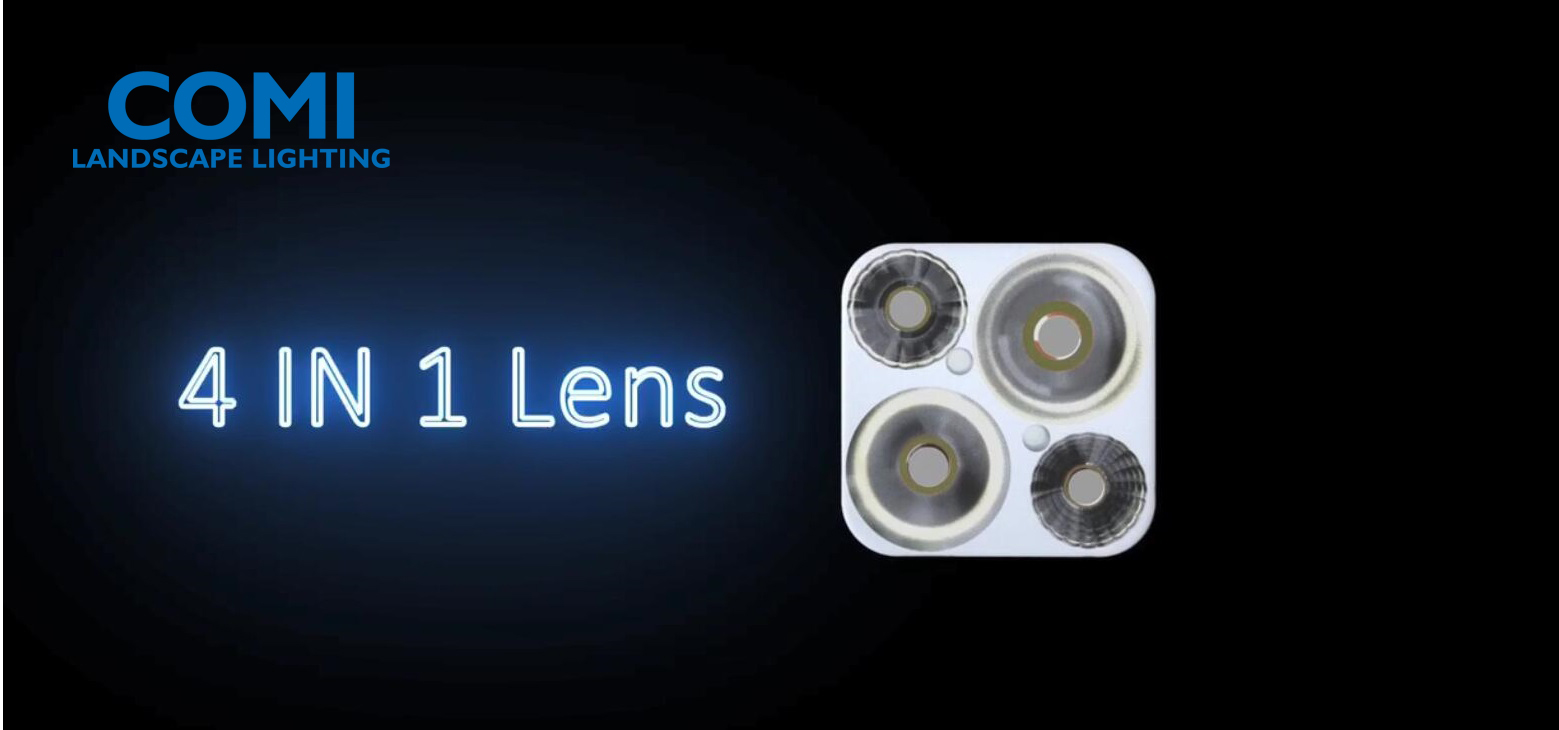

LED flood light with 4-in-1 optical lens module Realizes electronic zoom
LED flood Lamp with password security lock

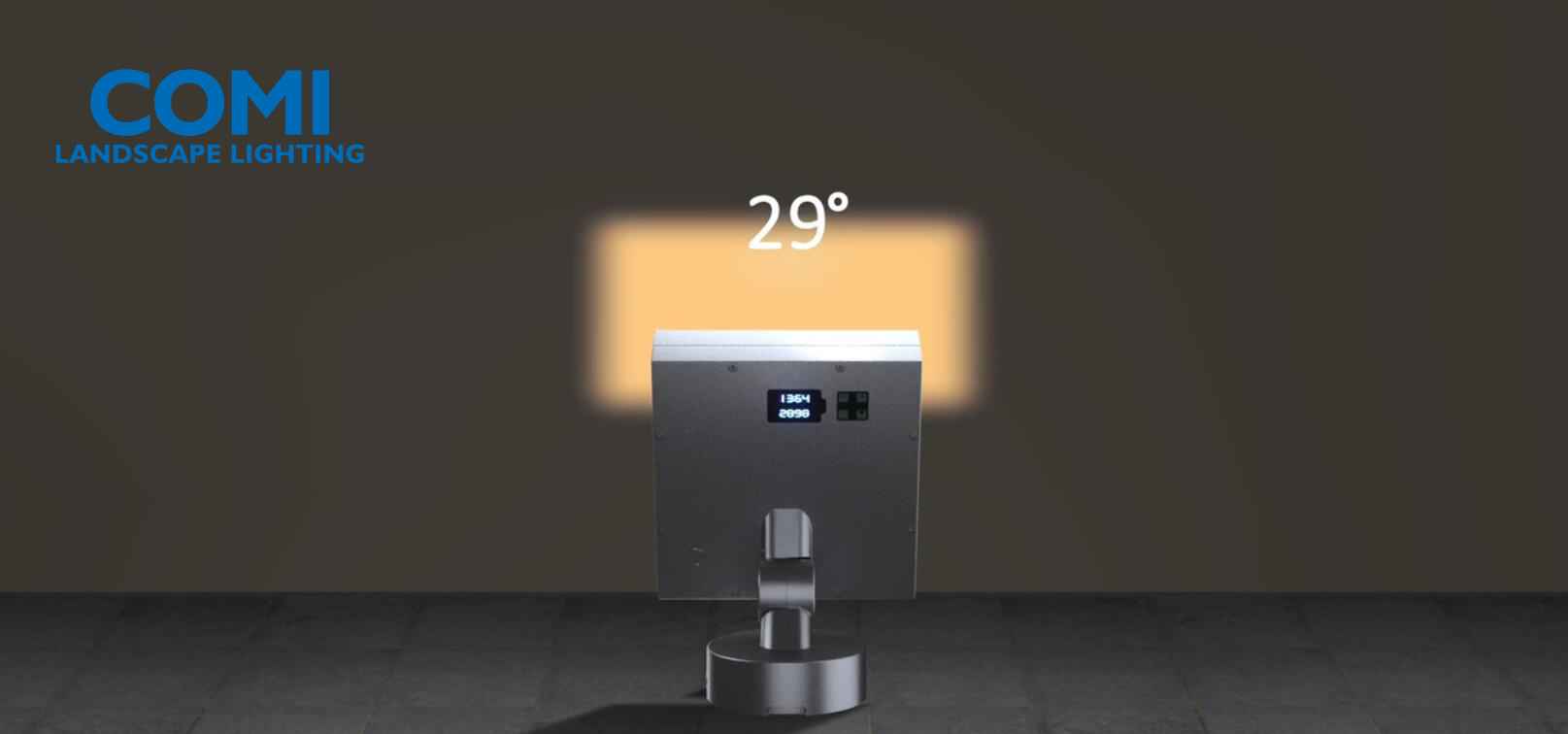

Beam angle 7-36 degree zooming or focusing adjustable LED floodlight
The Beam angle of Zoomdim series LED floodlight can be 10~40x60 degree zooming or focusing adjustable

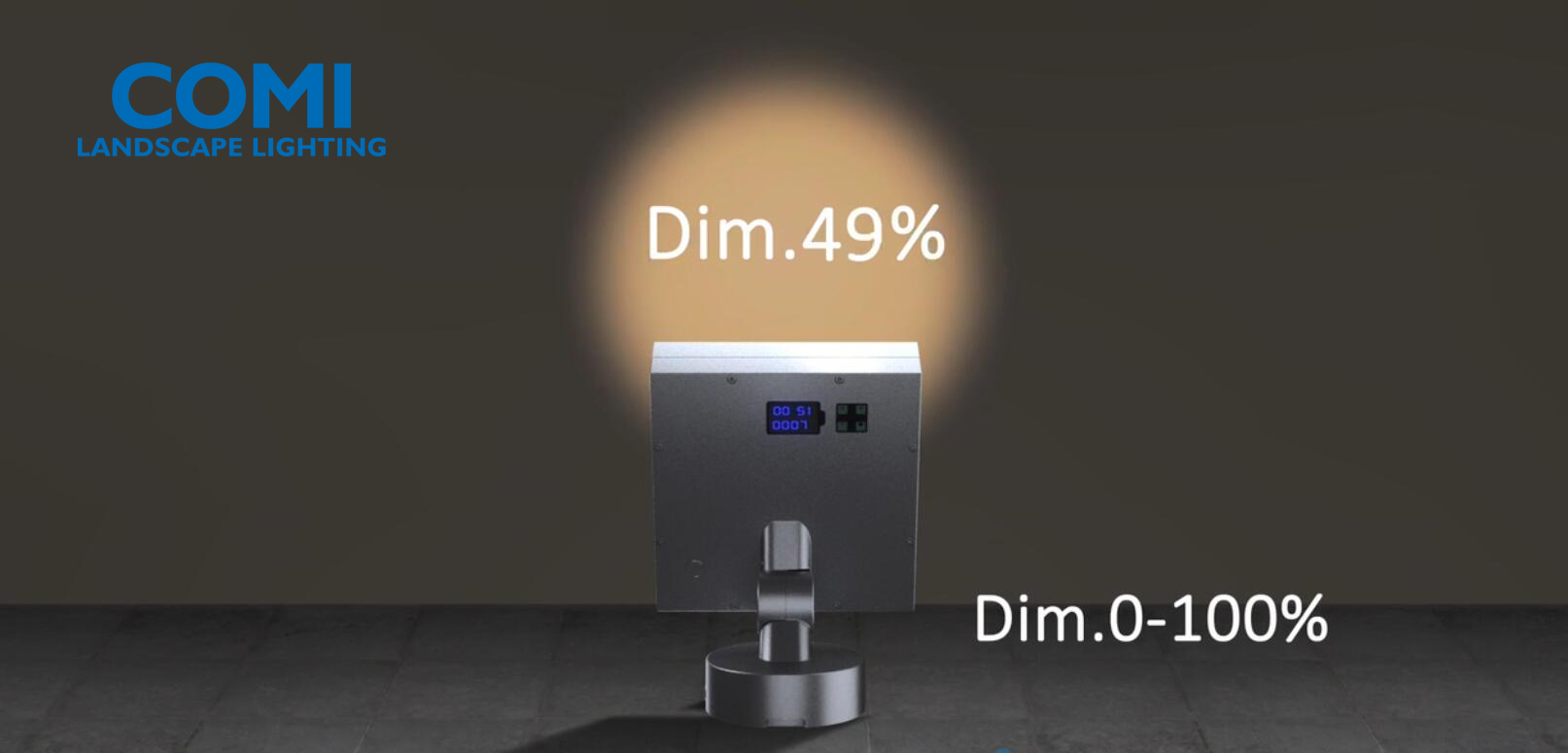

LED flood lights can be 0-100% dimming which is optional 0-10V or DALI or DMX control support
IP66 Outdoor LED Flood light single color or RGB or RGBW Bluetooth control support on smart phone
Zoomneo LED Flood light with various Parts for installation (-X) to meet different appplications:
| Picture |  |  |  |  |  |  |  |
| Name of Parts | Round base | U-shape Bracket | Spike (stake) | Dia. 48mm arm | Pole hoop | Screws fixed type base | Tree strap |
| Installation modes | Surface Mount on the ground, wall or Ceiling | Surface Mount on the ground, wall or Ceiling | On Ground mount by spike (stake) | Installed onto dia. 48mm pole arm | Pole Mount by hoop | Pole mount by screws fixed type base& screws | LED floodlight mount on tree or pole by strap. |
| Code No. for Parts | B | U | S | A | H | L | T |
