    305VAC 75W Led Wall Washer Lights 7500LM Led Architectural Lighting

    Ask Lasest Price
    Brand Name : COMI Landscape Lighting
    Model Number : B3ZE Z3ZE
    Certification : CE, ROHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100,000pcs per month
    Delivery Time : 3-20days
    • Product Details
    • Company Profile

    305VAC 75W Led Wall Washer Lights 7500LM Led Architectural Lighting

    IP66 Square Led Wall Washer Flood Lights For Outdoor Accent Lighting Or Landscape Lighting Or Architectual Lighting


    1. In addition to the traditional control methods, this series of products can use touch screen control, and the internal algorithm realizes electronic focusing;

    2. Achieve electronic zoom narrow, small, medium, and medium-large modular lens;

    3, 4K high-speed feedback chip

    4. Patent appearance design, double-layer fluorocarbon spraying process.

    5.Password security lock for lamps


    Installation: Integrated tilting, surface-mounting base allows easy installation on the ground, wall or ceiling; Max adjustment from the horizontal: -10º to +10º and vertical: -40º to +90º.


    Technical Specifications:

    Item No.Control ModeColorLight Source
    Beam Angle
    (Θ1/2)(°)
    Input Voltage
    Rated
    Power
    Luminous Flux
    (lm)
    IK Rate
    B3ZD16075-X
    B3ZE16100-U
    CC, DALI, 0-10V
    Single Color
    16pcs Cree
    or Osram LED
    2.5°, 4.5°, 8°, 12°,
    20°, 30°, 45°, 60°,
    10×70°, 5×20°
    100-305VAC
    50/60Hz
    75W,
    100W(U)
    6300~10000LMIK10
    B3ZE16100-X
    DMX512/
    RDM
    RGBW
    4-in-1
    Full Color
    16pcs Cree
    4-in-1 LED
    8°, 15°, 20°,30°,
    15×60°
    36VDC, or
    100-305VAC 50/60Hz
    100W
    3500~4000LMIK10
    B3ZE16100-X
    DMX512/
    RDM
    RGBW
    4-in-1
    Full Color
    16pcs Osram
    4-in-1 LED
    3.5°
    24VDC, or
    100-305VAC
    50/60Hz
    100W
    3500~4000LMIK10
    B3ZE32075-X
    B3ZE32100-U
    CC, DALI, 0-10V
    Single Color,
    RGBW 4-in-1
    Full Color
    32pcs
    Osram LED
    6°, 15°, 20°,
    30°, 45°,
    20×40°, 15×25°
    36VDC, or
    100-305VAC
    50/60Hz
    75W,
    100W(U)
    6500~7500LMIK10
    B3ZE32075-X
    DMX512/
    RDM
    RGBW
    4-in-1
    Full Color
    32pcs
    Osram LED
    6°, 15°, 20°,
    30°, 45°,
    20×40°, 15×25°
    36VDC, or
    100-305VAC
    50/60Hz
    75W2500~2800LMIK10
    Z3ZE64075-X
    Touch Panel/
    Screen
    Single Color
    64pcs
    Cree LED
    7~36°
    Photoelectron
    zoom
    24VDC, or
    100-305VAC
    50/60Hz
    75W6500~7500LMIK10
    B3ZE0475-X
    DMX512/
    RDM
    Single Color
    4pcs
    Cree COB LED
    12° , 24° , 36° , 70°
    100-305VAC
    50/60Hz
    75W6500~7500LMIK10

    Notes:

    1. (U) in rated power stands for "U-shape bracket model only";
    2. Color: single color, tunable white, RGB, RGBW are available upon request.
    3. Specifications are subjected to change without notice.


    Item Number named method for best outdoor flood lights:

    B3ZF2575-X
    Lens Type:
    B-Symmetrical Lens
    Z: 4-in-1 modular lens
    for Photoelectron zoom
    Series-3:

    LED Architecture and
    Landscape lights

    Zoomdim SeriesCode No. for
    lamp housing
    LED QuantityPower of lighting fixtureInstallation Mode/ Part
    (please view below)

    Zoomdim LED Flood light with various Optional Parts for installation (-X) to meet different applications:

    PictureFlood lights with round baseLED flood light with U-shape bracketled flood light with spike or stakeLED flood light with dia 48mm arm for Pole arm mountled flood light with pole hoopflood light with screws fixed type baseled flood light with tree strap
    Name of PartsRound baseU-shape BracketSpike (stake)Dia. 48mm armPole hoopScrews fixed type baseTree strap
    Installation modesSurface Mount on the ground, wall or CeilingSurface Mount on the ground, wall or CeilingOn Ground mount by spike (stake)Installed onto dia. 48mm pole armPole Mount by hoopPole mount by screws fixed type base& screwsLED floodlight mount on tree or pole by strap.
    Code No. for PartsBUSAHLT

    Applications:

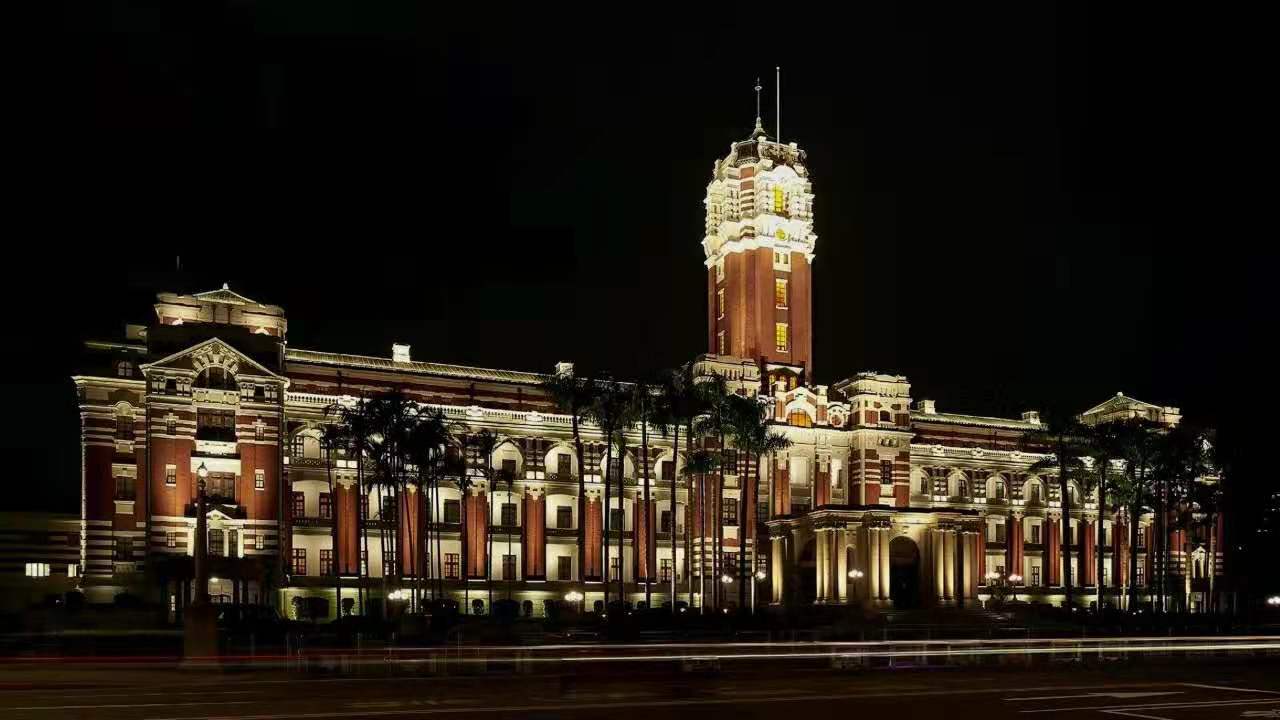

    The LED flood lighting fixture is designed and suitable for outdoor lighting for park, hotel, villa, plaza, museum, stadium, sculpture, monument, tree, temple, church, mountain and etc.

    The LED flood lighting fixture is designed and suitable for outdoor lighting for park, hotel, villa, plaza, museum, stadium, sculpture, monument, tree, temple, church, mountain and etc.
