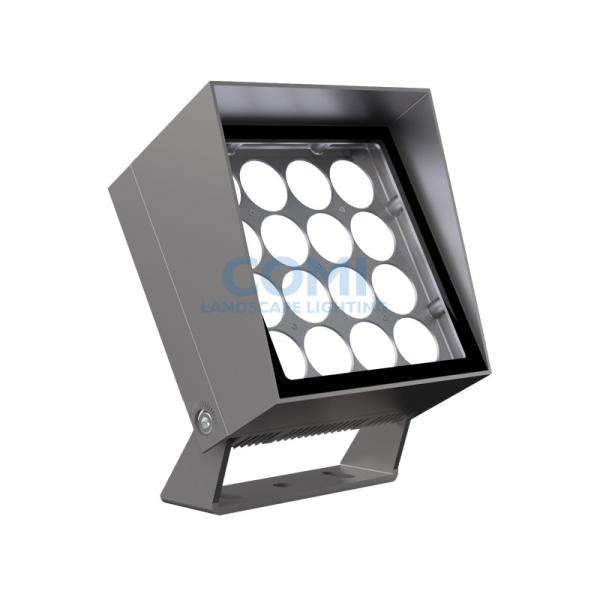

IP66 Rating Outdoor Flood Lights Single Or RGBW Color 75W 100W For Landscape Lighting Design

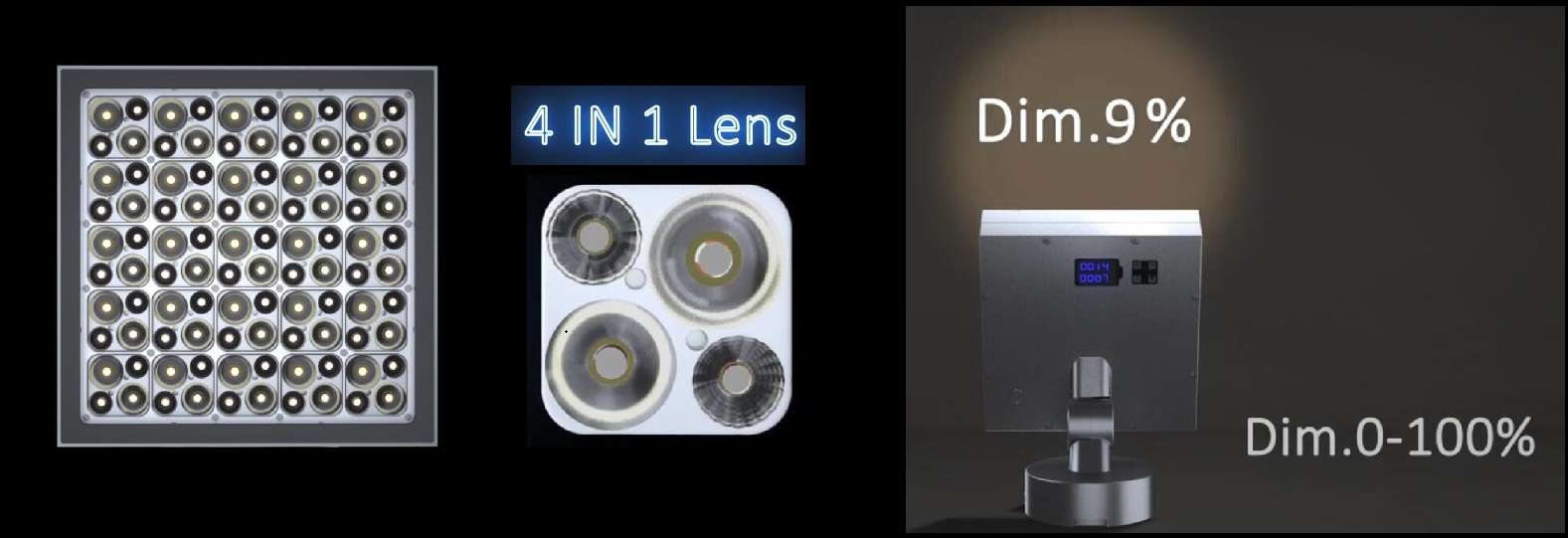

The original design of our product: an optical combined lens module realizes electronic zoom. The lens module is integrated on a square structure by four different angle lenses. A circuit board is designed with a high-speed computing feedback chip that can realize electronic zoom. The user can trigger a preset algorithm inside the lamp body through the touch screen switch on the back to switch the lens module with a combined angle to realize the adjustment of the lighting angle and brightness.

Features:
1. Flood light with hood (also named as light shield, light barrier, or Light visor);
2. Optional function: lighting beam angle and brightness adjusted by touch screen(Note: Only this model Z3ZE64075H-X with ithis function).
3. Uniform light spot, no hollow, no edge yellow spots.
4. Color: single color, RGBW (Tunable white or RGB are available).

5. Ultra narrow beam angle to wide beam angle for options: 2.5°, 4.5°, 6°, 8°, 12°, 20°, 30°, 45°, 60°,10X70°,5X20°,15X60° and etc.

6. Standard product is with U-Shape bracket for Surface mount on the ground, wall or ceiling.

Optional parts to replace U-Shape bracket: (1) Round base; (2) Spike (Stake); (3)Pole mounted hoop; (4) Dia. 48 lamp arm; (5) Bracket with Tree strap; (6) Pole mounted screw Fixed parts.

7. Honeycomb louver for anti-glare light output.

8. IP66 Protection grade for outdoor environment.
9. Product parts can be quickly disassembled and exchanged, which is convenient for long-distance upgrade and maintenance.
10. The product made of aluminum alloy combined with fluorocarbon spraying surface treatment, and the floodlight is isolated the dual cavity independent heat dissipation structure.
11. The exterior design follows the “less is more” concept German Bauhaus, which combines modern architecture with lamps.
112. In addition to the traditional control methods, this series of products can be operated by touch screen control on back of fixture, and the lighting fixture can be electronic focusing via internal algorithm.

Technical Specifications:

Notes:

1. (U) in rated power stands for "U-shape bracket model only";
2. Color: single color, tunable white, RGB, RGBW are available upon request.
3. Specifications are subjected to change without notice.

About Photoelectron zoom functional Zoomdim series LED Flood light with 4-in-1 modular lens and touch panel&screen, please view details in this link:>> Zoomdim Series LED Flood Lights with Photoelectron zoom function
