24VDC 125LM/W Linear LED Wall Washer Light RGB DMX For Outdoor

Ask Lasest Price
Brand Name :	COMI Landscape
Model Number :	6FP LED wall washer module
Certification :	CE, ROHS

Add to Cart

Product Details
Company Profile

24VDC 125LM/W Linear LED Wall Washer Light RGB DMX For Outdoor

Features:
▪ Working voltage and Power: 24VDC 3.2W per module.
▪ Light Source: 7pcs Nichia LED per Module.
▪ Color: single color, tunable white(2700K+6500K), RGB.
▪ Control method: ON/OFF, PWM, DMX.
▪ Sealed with fully transparent and waterproof materials.
▪ Symmetric optic lens: 20°, 30°.
▪ Max 100W per continous run.
▪ Wall washer module String comes with IP67 male&female connector.
▪ Dimensions: L197 x W23 x H11mm /Module.
▪ IP Rate: IP67 Waterproof.
▪ Installation: Surface mount, screws fixed.
▪ Application: suit for commercial lighting,wall washing illumination
▪ Working Temperature: -40~+45 ℃
▪ 3 years warranty.

Technical Parameters:

Part Number	Control Method	Color or CCT(K)	CRI	Input Voltage	Power (W/module)	Luminous Flux (lm/Module) @3000K	Pixel Quantity	IP Rate
B6FP0703M-XX	ON/OFF, PWM	2500-6500K	Ra≥80 (Ra≥90)	24VDC	3.2W	345LM	/	IP67
B6FP0703M-TW	ON/OFF, PWM	2700K+6500K	Ra≥80 (Ra≥90)	24VDC	3.2W	383LM	/	IP67
B6FP0703M-RGB-DMX	DMX	RGB	/	24VDC	3.2W	/	1pixel/module	IP67

Note: Specifications are subjected to change without notice.

Product Drawing:

product drawing for IP67 Mini LED wall Wash String Lights

Average Light Distribution:

Average Light Distribution for mini wall washer module string lights

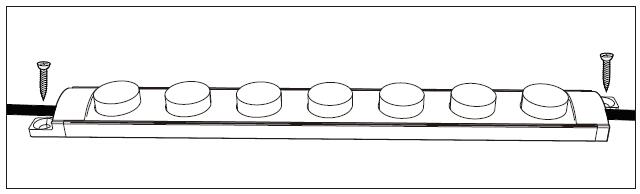

Installation Method:

Installation method for mini wall washer module string lights
