Flexible PVC Or Silicone LED Neon Strip Light PWM DMX512 Control
17W/meter IP68 Waterproof For Underwater Lighting, facade lighting,
outline lighting, Contour profile Lighting
F18 is IP68 3-side emitting flexible neon LED flex line with a
W16.5×H16.5mm cross section. Opal polyurethane encapsulation
offering a premium water proof sealing, UV resistance, chemical
stability against urban gases and protection against abrasion.
Vertical bending only, with radius of 8mm excellent solution for
indoor / outdoor organic facade accent lighting or decorative
applications requiring IP67 even IP68 ingress. Fully dimmable with
PWM,0/1-10V,DALI, DMX512.
Features and Benefits:
▪ 3 sides emitting with Uniform and even light output.
▪ 260 degree beam angle.
▪ Flat Shape Ivory White diffused PVC or silicone luminous surface.
▪ Continuous and uniform illumination, no LED dot or dark spot.
▪ Vertical(upward-to-downward) bending only with radius of 8mm.
▪ Optional input Voltage 12VDC, 24VDC or 36VDC
▪ Working with Dali, 0/1-10, DMX,PWM, Triac for options.
▪ Constant Current IC built in optional.
▪ Can be cuttable at regular intervals without damage the rest of
neon strip.

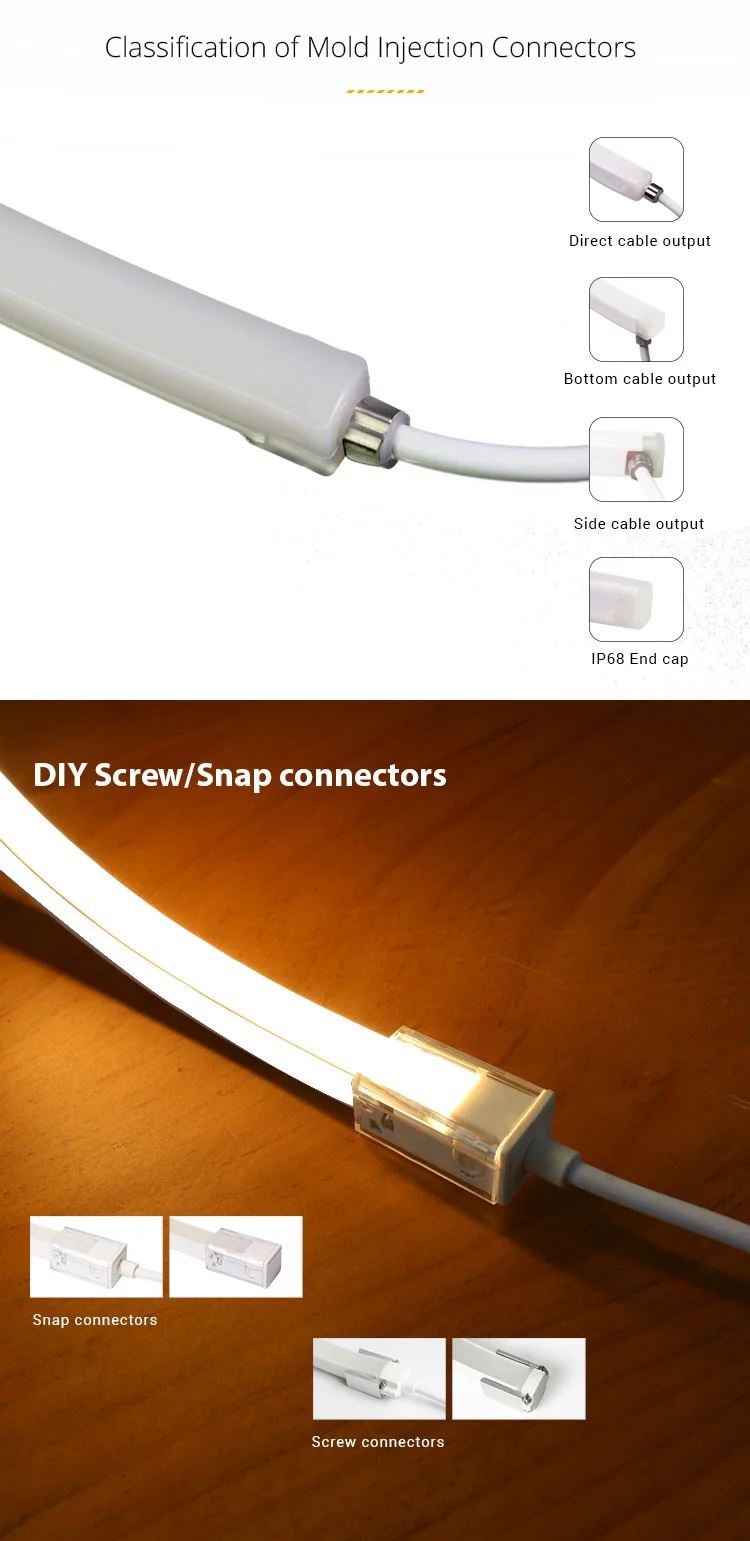

▪ Optional IP67 DIY Screws type and IP68 mould injection type
connectors.
▪ Optional Single end or dual ends power cable for neon LED flex.
Cable output sides available: (1) Direct end, (2) bottom, or (3)
side cable output.
▪ Continuous run length Up to 30meters(for constant current IC
driving only).
▪ Provides various smart accessories for mounting and installation.
▪ Full encapsulated with IP68 Level and rating IK08.
▪ Ambient temperature:-25°C to +55°C
▪ Standard 3 years warranty (5 years is available).
Important Notes for neon LED flex when underwater use:
1. Please select mould injection connector and the depth of
underwater is <2Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in
sea water.
Techincal Parameters for neon LED Strip Lights
Note: The below is for single color only, For tunable white, RGB,
RGBW color, or SPI, DMX function, please inquire us separately.
| Model: | F18-24V-2835-120-CC | F18-24V-3528-144 | F18-24V-3528-120 |
| Working Voltage: | 24V DC | 24V DC | 24V DC |
| Power per Meter: | 10W | 10W | 9W |
| Working Mode: | CC | CV | CV |
| LED Type: | SMD 2835 | SMD 3528 | SMD 3528 |
| LED Qty / meter: | 120pcs | 144pcs | 120pcs |
| Available CCT: | 2200K-6500K | 2200K-6500K | 2200K-6500K |
| Min. Cutting Unit: | 6LEDs | 12LEDs | 12LEDs |
| Min. Cutting Length: | 5cm | 8.33cm | 10cm |
| Max Length Single Feed: | 98.42'/30m | 32.8'/10m | 32.8'/10m |
| Lumen Maintenance: | 70,000 Hours L70@ 25°C, 50,000 Hours L70@ 50°C |
| Material: | Eco PVC or silicone |
| Min. Bending: | Dia 12cm |
| Beam Angle: | 120 Degree |
| Bending Direction: | Vertically |
| Installation Temp.: | 0°C to +55°C |
| Ambient Temp.: | -25°C to +55°C |
| Warranty: | 3 or 5 Years |
