D2ULB-series IP67 protected opal encapsulated linear LED luminaire with High quality and homogeneous light over entire emission surface made of PMMA and aluminum for indoor and outdoor recessed mount , surface mount or mounted with adjustable bracket. Consisting of LED linear luminaire and mounting aluminum profile, can be lined up optically and mechanically.Also suitable for installation into roads and parking lots.

Features and Benefits:
▪ High quality and homogeneous light over entire emission surface and dots free.
▪ PMMA one-time extrusion LED profile, length up to 3meters max.
▪ Low voltage 24VDC working voltage.
▪ Color: single color, tuntable white, RGB, or RGBW.
▪ Can be seamless connection: lined up optically and mechanically.
▪ The inner strip light or light bar can be customized made, advised max 15W/meter.
▪ Basic CRI80+ (CRI90 or CRI95+ are available).
▪ Recessed installation by aluminum mounting profile.
▪ Bottom or direct end entry ( to Open wires, or IP67 connectors)
▪ Fully PWM dimming, SPI or DMX control are available upon request.
▪ IP67 suitable for indoor or outdoor.
▪ 2 Years warranty.

Technology Parameters(The below is for single color only, please inquire tunable white, RGB, RGBW, SPI, DMX type IP67 Linear lighting fixture separately):

Notes:
1. Length available: 300mm, 500mm, 600mm, 1000mm, 1200mm, 1500mm, 2000mm and etc. max 3000mm.
2. Color available: single color, tunabie white, RGB, RGBW.
3. Optional function: DMX or SPI.
4. Specifications are subjected to change without notice.
5. Customize made is available, please inquire seperately.

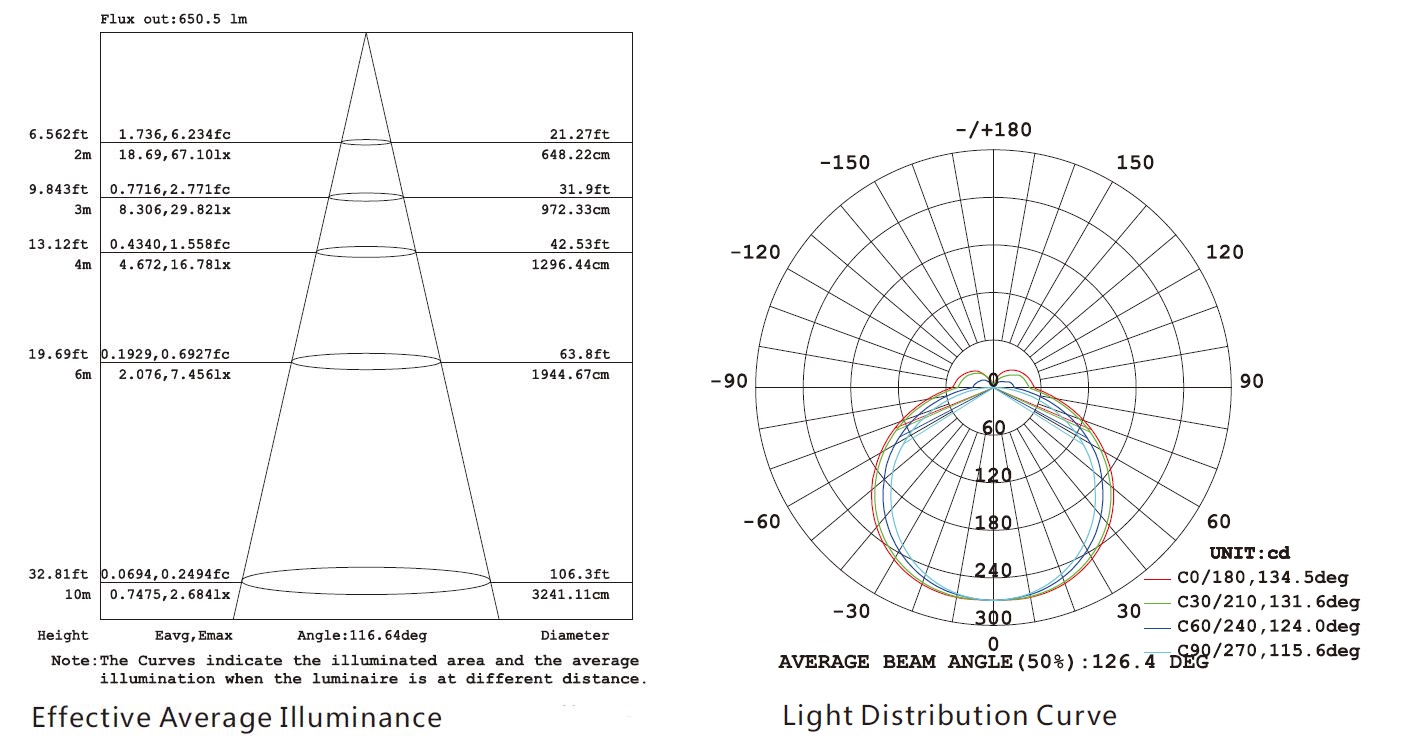

Effective Average Illuminance and Light Distribution Curve:

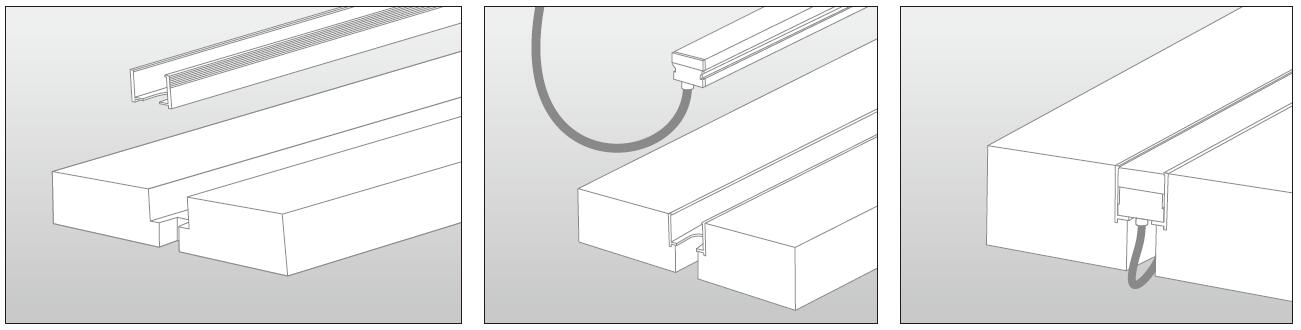

Installation Method.

The below is recessed type installation. And surface mount, or mount with bracket are avaialble. Not only can be used for LED Inground light, but also used for wall recessed mount, ceiling recessed mount and etc.
