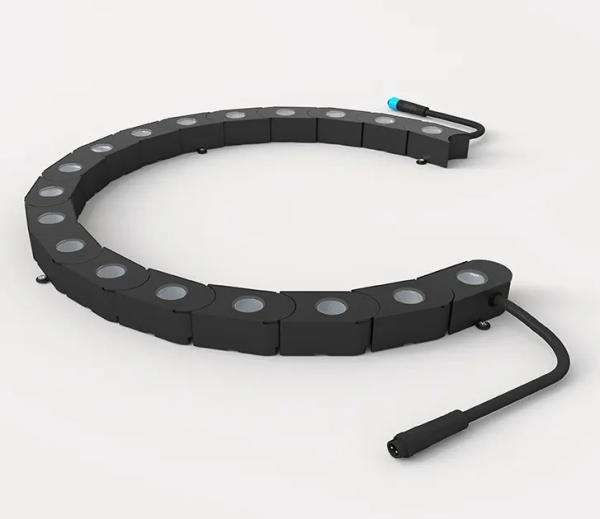

COMI Landscape lighting's AW01 is a low voltage 24VDC input flexible LED grazer and designed to provide high quality illumination for columns and curved architectural and landscape surfaces, it is flexible bending in horizontal way. Equipped with 18 pcs rotatable and waterproof high-power module per meter, provides single color and RGBW DMX for options. IP67 design and with a variety of lens and beam angle for options enables it be widely used for flood lighting, wall grazing, wall washing and accent lighting.

Features and Benefits:
▪ Flexible and horizontal bending.
▪ Modular design: min. unit length 333mm (6 pcs LEDs/unit).
▪ Input voltage: 24VDC
▪ Power: 36W/meter.
▪ Light Efficiency: 70~90LM/W
▪ Beam angle: 15°, 24°, 30°, 40°, 60°, 10°x15°, 15°x30° 15°x45°, 15°x60°.
▪ Color and control mothod:single color, RGBW DMX512.
▪ Multiple lens or light window type for options :
(1) Standard: clear optical lens;
(2) Optical honeycomb louver;
(3) half moon light window.
▪ Max. Length when Single Feed: 4Meters.
▪ Length available: 333mm(12W), 666mm(24W), 1000mm(36W), 1333.3mm(48W), 1666.6mm(60W), 2000mm(72W) and max 5meters per run.
▪ Uniform brightness for entire run length 5meters.
▪ Materials: Aluminum +Tempered Glass Cover.
▪ Installation way: Surface mounted.
▪ Fixed bracket and Angle adjustable bracket for option (order separately).
▪ Control support:
(1) Single color: ON/OFF, PWM, working with 0-10V/DALI/DMX512 dimming driver;
(2) RGBW:DMX512 (RS485).
▪ Lumen Maintenance: 70.000 Hours L70@25°C, 50.000 Hours L70@50°C
▪ IP67 and IK06, suitable for outdoor lighting.
▪ Operation Temperature: -25°C to +50°C.
▪ Compliance with CE, RoHs.
▪ 3 Years Warranty.

Technical Parameter for IP67 Outdoor Flexible LED Wall Washer in Single or DMX512 RGBW Color:

Notes:

1. "XX" in item No. stands for different light color, Light color for this Outdoor IP67 horizontal bending flexible LED Grazer:
(1) Single color available:2200K, 2700K,3000K,3500K,4000K,4500K,5000K,6500K,Green(520-530nm),Blue (455-465nm);
(2) RGBW( Optional W=2700K/3000K/4000K/5000K)
2. Light efficiency is around 68~90LM/W, and the above luminous flux is for beam angle 15°x45° and white color only.
3. Luminous flux output of this IP67 outdoor flexible modular LED linear wall washer is vary from different CRI, light color, beam angle and optical lens&light window type.
4. Standard CRI80+, and CRI90+ are available upon request.
5. Specificiation and availabity are subjected to change without notice.
