    IP68 High Brightness Neon LED Strip Lights 32mm Width10W/m 800lm/M

    Ask Lasest Price
    Brand Name : COMI Landscape lighting
    Model Number : SF32-24V-3528-144-XX
    Certification : CE ROHS
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100,000Meters/month
    Delivery Time : 10~20days
    • Product Details
    • Company Profile

    IP68 High Brightness Neon LED Strip Lights 32mm Width10W/m 800lm/M

    IP68 High Brightness Neon LED Strip Lights 32mm Width10W/m 800lm/M


    Descriptions:

    The 32mm Width High Brightness Top View Neon LED Flex is a cutting-edge lighting solution designed for diverse applications. This neon LED strip boasts a distinctive 32mm width tube design with customizable length, providing soft, uniform light output through a large domed opal white diffuser. Notably, it offers high brightness, producing up to 800LM/meter in cool white (6000K) and is available in various color temperatures.


    Its top view and vertical bendable design, with a minimum bending diameter of 150mm, allows for versatile installation. This neon flexib LED strip supports dimming through PWM, DALI, 0-10V, or DMX dimming drivers. Moreover, it is exceptionally durable, resistant to UV, flames, saltwater, solvents, and dirt. It can be cut at regular intervals without compromising the integrity of the strip.

    For ease of installation, a range of smart accessories is available. This LED strip is waterproof (IP68 rated), making it suitable for both indoor and outdoor use. It also possesses an IK08 rating for impact resistance and is CE and ROHS certified, ensuring quality and safety. The product comes with a standard 3-year warranty, with an optional 5-year warranty for added assurance.

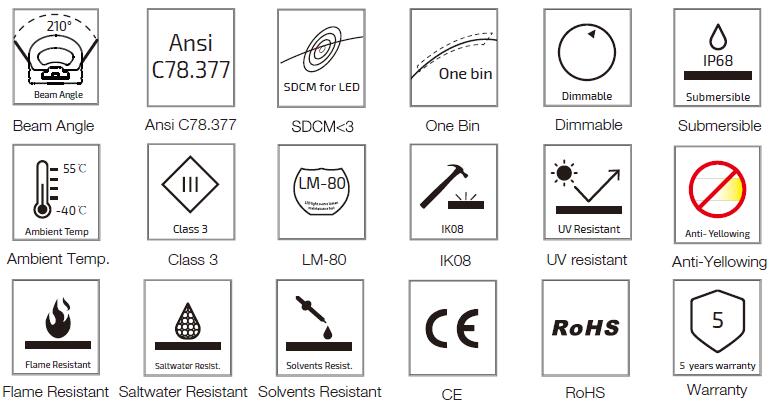

    Features:

    ▪ Width tube design: W32*T27mm, length can be customized made.
    ▪ Large Domed Opal white diffuser for comfort and massive soft light output.
    ▪ Uniform light output for entire run length, dot free.
    ▪ Top view and vertical bendable design, min diameter 150mm bending.
    ▪ High brightness output up to 800LM/meter for cool white 6000K.
    ▪ Color or CCT(K):2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 6000K, 6500K.
    ▪ Input voltage:24VDC
    ▪ Light source:3528 SMD LED, 144pcs/meter
    ▪ CRI:Ra>80 or CRI90.
    ▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
    ▪ UV/ flame/saltwater/solvent/dirt resistant.
    ▪ Can be cuttable at regular intervals without damage the rest of neon strip.
    ▪ Provides various smart accessories for mounting and installation.
    ▪ Beam angle:210°.
    ▪ Operation temperature: -25°C~+50°C.
    ▪ Rated IP68, submersible into water, suitable for both indoor or outdoor applications.
    ▪ IK rate: IK08.
    ▪ CE, ROHS certificate.
    ▪ Standard 3 years warranty (5 years warranty is available).


    Important Notes for neon LED flex when underwater use:
    1. Please select injection moulded connector and the depth under water is <2 Meters.
    2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.



    Techincal Parameters:

    Item NumberSF32-24-3528-144-XX
    Input voltage24VDC
    Power10W/meter
    Light Source144LEDs/meter, SMD3528 LED
    CRIRa>80 or Ra>90
    Luminous Flux800LM/meter (@6000K)
    Light Color2200K, 2700K, 3000K, 3500K, 4000K. 5000K, 6000K
    Bending directionVercial bending, min bending diameter 150mm
    Beam angle210°
    Mini cutting unit
    8.33cm (3.28inch) (12LEDs)
    Max Continuous Length

    10meters when one end power feed

    20meters when two ends power feed

    IP RateIP68
    IK rate08
    MaterialsSilicone
    Entry cablebottom entry power cable connector
    Operating temperature-40~+50℃
    Warranty3 years or 5 years

    Notes:
    1.About light color:
    (1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
    (2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
    (3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
    (4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
    2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
    3. Specifications are subjected to change without prior to notice.
