Cool White 10W Super Bright Led Flood Lights with Integrated
Intelligent IC Driver
CL-TG005-10W AC85-265V Input 10Watt 20pcs Epistar SMD5730 LED
Garden Floodlights with Integrated Intelligent IC Driver CRI＞80 1100LM PF＞0.55, IP66 Waterproof LED Flood Lamps 3 Years Warranty
Features:
1.The version form 10w to 150w are available.
2. By using epistar SMD5730 LED as a light source to ensure 50,000 hours long operating life.
3. No RF interference, No flicker, No noise.
4. The brightness is uniform and soft, and the brightness is high.
5. The product uses constant current power supply has the advantages
of high efficiency.
6. IP Rating: IP66, excellent waterproof and dustproof performance, suitable for
outdoor environment, work well under harsh weather conditions.
Specifications:
Part Number | CL-TG005-10W | Power Factor | >0.55 |

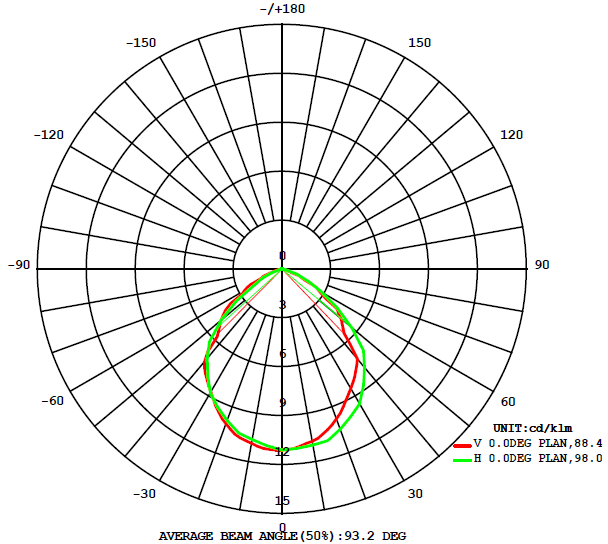

Power | 10W | Beam Angle | 120° |
Luminous Flux | 1100LM | IP Rating | IP66 |
Input Voltage | AC 85-265V 50~60Hz | Lifespan | 30000Hrs |
LED | 20pcs Epistar SMD5730 | Warranty | 3 years |
Driver | Isolation Constant Current Dirver | Certification | TUV CE/ RoHS/FCC/ SAA/ UL |
CRI | >80 | CCT | 3000K-6500K |
Light Effect | 100LM/W(±5%) | Product Size | 129*99*44MM |
Series Items:
| No | Part number | Power | Lumen | PF | Light Source | Driver | Warranty |
|---|
| 1 | CL-TG005-10W | 10W | 1100LM | 0.55 | 20pcs Epistar SMD5730 | Isolation constant current driver | 3 years |
|---|
| 2 | CL-TG005-20W | 20W | 2200LM | 0.55 | 40pcs Epistar SMD5730 | Isolation constant current driver | 3 years |
|---|
| 3 | CL-TG005-30W | 30W | 3300LM | 0.95 | 60pcs Epistar SMD5730 | Isolation constant current driver | 3 years |
|---|
| 4 | CL-TG005-50W | 50W | 5500LM | 0.95 | 100pcs Epistar SMD5730 | Isolation constant current driver | 3 years |
|---|
| 5 | CL-TG005-100W | 100W | 11000LM | 0.95 | 200pcs Epistar SMD5730 | Isolation constant current driver | 3 years |
|---|
| 6 | CL-TG005-150W | 150W | 16500LM | 0.95 | 300pcs Epistar SMD5730 | Isolation constant current driver | 3 years |
|---|
Note:
1. Color options: Warm White(2900-3200K), Neutral
White(4000-4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without
notice.
2. For more detail specification in PDF, please contact us
separately.
Product Details:
Test Reports:
Packing Details:
N.W: 0.55KGs/piece G.W.: 17.5KGs/30pcs/Canton
Outer box(Carton): L560*W370*H170mm
Applications Place:
Widely used in garden, building outside Billboard, stadium, sculpture, church,
shop, supermarket, shopping malls, exhibition halls, parking lots, stadiums,
billboards, parks, sculptures.
