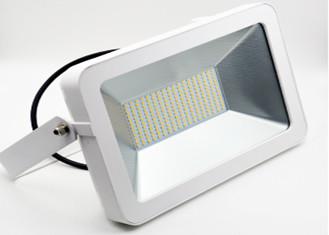

150 Watts IP65 Outside Led Flood Lights Waterproof No Driver 120
Degree Wide Beam
CL-TGD-150WA AC180-260V 150 Watts LED Flood Lights CRI＞80 11000LM PF＞0.9 , 3 Years
Warranty IP65 Waterproof No Driver LED Floodlights
Features:
1. Energy saving of more than 60%.
2. A variety of color options, to meet the needs of different
environments.
3. Available in black and white apperance.
4. Using high efficiency constant current driver, wide voltage
input, can work in unstable voltage place.
5. The product adopts lead-free and mercury free process.
6. 3 Years warranty.
Specifications:
| Model Number | CL-TGD-150WA | Power Factor | >0.9 |
| Power | 150W | Beam Angle | 120° |
| Luminous Flux | 11000lm | IP Rating | IP65 |
| Input Voltage | AC 180-260V 50-60Hz | Lifespan | 30000H |
| LED | 300Pcs Epistar 2835 | Warranty | 3 years |
| Driver | No driver | Certification | CE/ RoHS/ SAA/ TUV/ SGS |
CCT | 2700K-6500K | Dimension | 360*237*75 MM |
| No | Part Number | Power | Input Votagle | LED Light Source | Lumen | CRI | Driver |
|---|
| 1 | CL-TGD-10WA | 10W | AC180-260V | 20Pcs Epistar 5730 | 700LM | 80 | No Driver |
|---|
| 2 | CL-TGD-30WA | 30W | AC180-260V | 60Pcs Epistar 5730 | 2100LM | 80 | No Driver |
|---|
| 3 | CL-TGD-50WA | 50W | AC180-260V | 100Pcs Epistar 5730 | 3500LM | 80 | No Driver |
|---|
| 4 | CL-TGD-100WA | 100W | AC180-260V | 200Pcs Epistar 5730 | 7000LM | 80 | No Driver |
|---|
| 5 | CL-TGD-150WA | 150W | AC180-260V | 300Pcs Epistar 5730 | 11000LM | 80 | No Driver |
|---|
Note:
1. Color options: Warm White, Neutral White, Cool White;
2. Specification and availability are subjected to change without
notice.
2. For more detail specification in PDF, please contact us
separately.
Packing Details:
G.W.:4KGs/piece material: K=K
Outer box(Carton): L430*W400*H290mm, 4pcs/canton, 16KGs
Installation:
Important Notes:
1. Please do not use or corrosive material to clear lamp, use dry
rag.
2. Please do not turn on the light when install.
3. Before maintenance, please cut off electricity
4. In order to keep good illumination, please clear lamp lens
regularly.
5. Please clear lamp heat sink dust to keep good heat dissipation
performance.
Applications:
Widely used in shopping center , exhibition hall, parking lot,
stadium,billboard, park, statue, government lighting decoration
project, landmark or building, public square and passage, green
landscape lighting, building connecting passage, and other indoor
or outdoor light applications.
Sitting installation Wall mounted Ceiling mounted
