HS2835XX84-C1 110-120VAC Power Supply Free Type 84pcs CRI80+ 2835 LED per Meter High Voltage LED Strip Light with 600LM / M Output and Consumption 6W / Meter Only

Features and Benefts:

● High voltage range 110~120V input;
● AC power direct input design,without additional power supply unit;
● Light Source: 1Chip-in-1 2835 SMD LED, CRI80+,
● LED Quantity Per meter:84LEDs/m;
● Every 50cm can be cuttable at regular intervals without damage the rest of strip;
● The cut lengths can be re-connected by pin connector and end caps;
● Constant current working design makes the LED strip with uniform light output in the entire run length of AC LED strip
● With over voltage/current/temperature protection Not only prolong lifespan of LED strip But also be safe to use.
● Patented structure design to protect light source
● Continuous run length max 50meters and standard 50m/reel;
● IP67 Rating suitable for indoor or outdoor lighting
● Simplified installation by U-type plastic straps and screws
● PVC insulated casing with excellent weather/aging/Yellowing/fire resistance
● Using lower conduct resistance multi-strand copper wires as principal line
● CE,RoHs, UL Certificates
● 2 Years Warranty

Over voltage protection
Adaptable to wide input voltage as180-264Vac;
When input voltage is larger than protective voltage, the strips will lower the current automatically to protect LED;
When input voltage comes to normal, the current of strips will also automatically return to normal level.

Over temperature protection
When the temperature is abnormally high,the strips will automatically reduce the voltage to reduce the working current so that the working temperature can be reduced.
When the temperature resume normal, the strips can automatically resume and keep in the best working state.

Over Curent Protection
The LED current keep rated when the peak current is larger than rated current. The limited current circuit does not work and no power consumption, when current is smaller than rated current.

Protective structure
Cambered surface as the light-limiting surface,the cambered space between the light-limiting surface and LED strip can protect LED when the strips suffer from external force (As shown in figure 2).
The regular one in the market is shown in figure 1, when the strips suffer from external force, the LED is easy to destroy.

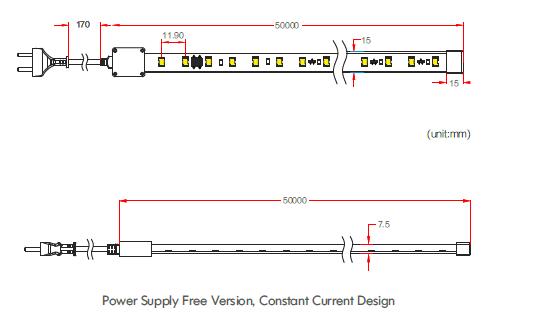

Dimension:

General Information:

Notes:
1."XX" in part number stands for the LED emitting color,Kelvin or Wave length for above LED emitting color:
(1) Warm white (WW, 3000~3500K[standard] or 2500~3000K), Neutral White (NW, 4000~4500K), Cool White (CW, 6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm), Yellow (YL, 588~592nm);
2.Standard CRI80+ or high CRI90+ are available;
3.Specification and availability are subjected to change without notice；
4. For rating IP65,IP67,IP68 versions , please inquire us separately.(what is name methods for difference IP rating LED Strip in COMI Lighting?

Product Size(mm):

Accessories:

Packing:
