24Vdc 75W Output 0 ~ 100% PWM Digital Dimming DMX LED Driver 100-240Vac Input

Ask Lasest Price
Brand Name :	LTSYS-Series
Model Number :	DMX-36-24-F1P1
Certification :	CE, ROHS, ISO 9001: 2008
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	10000 pcs per month
Delivery Time :	3 ~12 Days

Add to Cart

Product Details
Company Profile

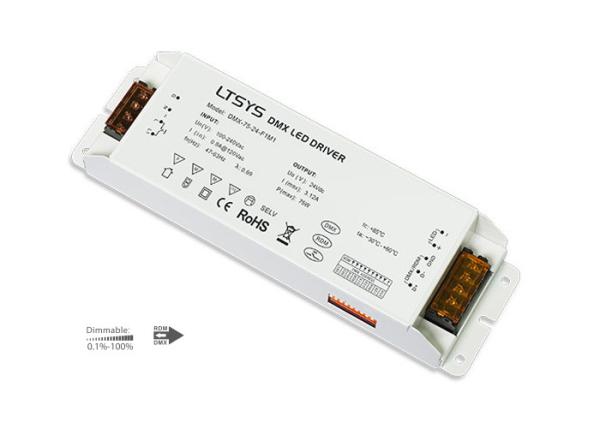

24Vdc 75W Output 0 ~ 100% PWM Digital Dimming DMX LED Driver 100-240Vac Input

DMX-75-24-F1M1 24Vdc 75W Output 0 ~ 100% PWM Digital Dimming DMX LED Driver 100-240Vac Input

Features and Benefits:

1. Dimming interface: MX512/RDM push DIM
2. With the RDM remote device management protocol.
3. Supports remote management of reading or writing DMX address.
4. PWM digital dimming, no alter LED color rendering index.
5. Dimming, range: 0~100%, LED start at 0.1% possible.
6. Power factor > 0.99, Efficiency > 87%.
7. Short circuit / Over-temperature / Over load / Over voltage protection.
8. Compliant with Safety Extra Low Voltage standard.
9. Suitable for indoor environments.

Technical Specification:

Dimming Interface	DMX512/RDM, Push DIM
Input Voltage Range	100-240Vac ±10%
Frequency	50/60Hz
Input Current	120Vac≤0.9A, 230Vac≤0.45A
Power Factor	PF>0.99/115Vac , PF>0.95/230Vac, at full load
THD	≤6% at 115Vac, ≤12% at 230Vac (full load)
Efficiency	>87%
Inrush Current(typ.)	Cold start 60A at 230Vac
Leakage Current	I/P-O/P: <0.5mA/230Vac, I/P-GND: <0.75mA/230Vac
Control Surge Capability	L-N: 1kV L/N-G: 2kV
Output Current	Max. 3.12A
Output Voltage	24Vdc
Output Voltage Range	24Vdc ±0.5Vdc
Ripple & Noise	≤200mV
Output Power	1~75W
Overload Power Limitation	≥102-125%
Dimming Range	0~100%, LED start at 0.1% possible.
Working Temperature	0°C ta: -30°C ~ 55°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40 ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C(0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Dimension	204×62×34mm(L×W×H)
Packing	206×64×39mm(L×W×H)
G.W.	500g
Protection
Over Temp. Protection	Shut down the output when PCB temp.≥110°C, auto recovers when temp. back to normal
Over Voltage Protection	No Load Voltage≥26~38V, re-power on to recover after fault condition is removed
Over Load Protection	Current Load≥102%~125%, recovers automatically after fault condition is removed
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers after faulty condition is removed
Safety & EMC
Withstand Voltage	I/P-O/P: 3750Vac I/P-GND: 1800Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
EMC Emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN61547

Product Size(Units:mm):

Typical Wiring Diagram:
