24Vdc 185W MEAN WELL IP67 Waterproof LED Single Output Switching Power Supply

HLG- 185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and current output. HLG-185H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features:

1. Universal AC input / Full range (up to 305V AC)

2. Built-in active PFC function

3. High efficiency up to 94%

4. Protections: short circuit / over current / over voltage/ over temperature

5. Cooling by free air convection

7. Function options: Ouput adjustable through potentiometer;

8. IP67 / IP65 design for inddor or outdoor installatons

9. three in one dimming function (0~10Vdc or PWM signal or resistance)

10. suitable for lED lighting adn stret lighting applications

11. 7 Years warranty (Note 10)

Applications:

1. LED Street lighting

2. LED High bay lighting

3. parking space lighting

4. LED fishing lamp

5. LED greenhouse lighting

6. Type "HL" for use in class I, division 2 hazardous (Classified) location.

Technical Specificaiton:

MODEL		HLG-185H-12□	HLG-185H-15□	HLG-185H-24□	HLG-185H-36□
OUTPUT	DC VOLTAGE	12V	15V	24V	36V
	Constant Current Region (Note 4)	6~12V	7.5~15V	12~24V	18~36V
	RATED CURRENT	13A	11.5A	7.8A	5.2A
	RATED POWER	156W	172.5W	187.2W	187.2W
	RIPPLE&NOISE(max.) Note.2	150mVp-p	150mVp-p	150mVp-p	200mVp-p
	VOLTAGE ADJ. RANGE (Adjustable for A-Type only (via built-in potentiometer))	10.8 ~ 13.5V	13.5 ~ 17V	22 ~ 27V	33 ~ 40V
	CURRENT ADJ. RANGE (Adjustable for A-Type only (via built-in potentiometer))	6.5 ~ 13A	5.75 ~ 11.5A	3.9 ~ 7.8A	2.6 ~ 5.2A
	VOLTAGE TOLERANCE	±2.5%	±2.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±2.0%	±1.0%	±0.5%	±0.5%
	SETUP,RISE TIME Note. 6	1000ms,200ms/115VAC 500ms,200ms/230VAC
	HOLD UP TIME(Typ.)	16ms / 115VAC, 230VAC
INPUT	VOLTAGE RANGE	90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR(Typ.)	PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	EFFICIENCY (Typ.)	91.5%	92%	93.5%	94%
	AC CURRENT (Typ.)	12V: 1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC 15V~54V: 2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 65A(twidth=445μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT	95 ~ 108%
		Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	14 ~ 17V	18 ~ 21V	28 ~ 34V	41 ~ 46V
		Shut down o/p voltage with auto-recovery or re-power on to recovery
	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	Tcase= -40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP	Tcase= +90℃
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85℃, 10~95% RH
	TEMP. COEFFICIENT	±0.03% / ℃ (0~50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY	SAFTY STANDARDS	UL8750(type”HL”), CSA C22.2 No. 250.0-08; TUV EN61347-1, EN61347-2-13 independent;gb19510, GB19510.14 IP65 or IP67; J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3. GB17743, and GB17625.1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
OTHERS	MTBF	192.2K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	228*68*38.8mm (L*W*H)
	PACKING	1.15Kg; 12pcs/14.8Kg/0.8CUFT

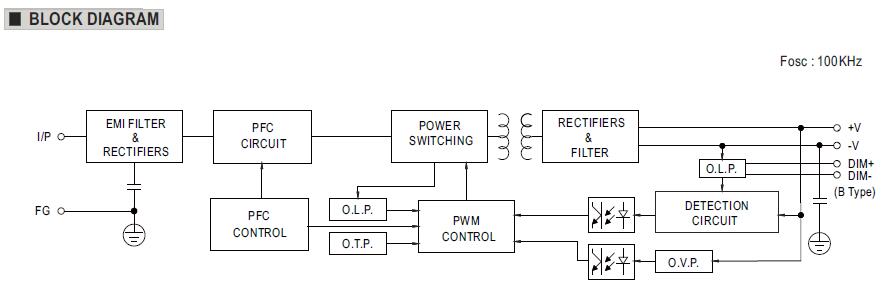

NOTE

For more detail specification, please contact us to get the specification in PDF file.Thanks!
