    12V or 24V 20W Fully Encapsulated IP67 Mini LED Power Supply with Slim Profile

    Ask Lasest Price
    Brand Name : COMI LIGHTING
    Model Number : HV-12020A2, HV-24020A2
    Certification : CE, ROHS, SAA, ISO9001:2008
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100000 pcs per month
    Delivery Time : 3~15days
    • Product Details
    • Company Profile

    12V or 24V 20W Fully Encapsulated IP67 Mini LED Power Supply with Slim Profile

    HV-12020A2, HV-24020A2 12V or 24VDC 20W Fully Encapsulated IP67 Waterproof Slim Profile Mini LED Power Supply 170~250VAC Input


    Features:

    1. Short Circuit/Over load/Overheat Protection;
    2.Fully encapsulated with IP67 level;
    3. 100% full load burn-in test;
    4. Cooling by free air convection
    5. Suitable for LED Lighting and moving sign applications
    6. 3Years warranty


    SPECIFICATION:

    Items ModelHV-12020A2HV-24020A2
    OUTPUTDC Voltage12±0.5V24±0.5V
    Rated Current1.67A0.83A
    Rated Power20W20W
    Ripple & Noise≤200mVp-p≤600mVp-p
    Hold up time≤2s
    INPUTVoltage Range170~250VAC
    Frequency Range50/60Hz
    Input current≤0.28A≤0.27A
    Power Factor/
    Efficiency84%85%
    Inrush currentCold Start:30A/230VAC
    Leakage Current≤0.75mA/240VAC
    ProtectionOver Loading120~150%
    Short CircuitProtection type: Hiccup mode, recovers automatically after fault condition is removed.
    EnvironmentWorking Temp.-25℃~+40℃
    Working Humidity10-90% RH non-condensing
    Storage Temp.-40℃~+60℃,10~95% RH
    Voltage
    Resistance
    Input-OutputAC 1.5KV/5mA 60s
    Input-HousingAC 1.5KV/5mA 60s
    CablesInputVDE H03VV-F 3*0.75mm2 Black*230mm
    OutputVDE H03VV-F 2*0.75mm2 White *230mm
    OthersHousing MaterialAluminum Housing
    IP RatingIP67
    DimensionL157*W29*H20mm
    Packing8.8kg/50pcs/ Carton

    DIMENSIONAL DRAWING(UNITS:MM):

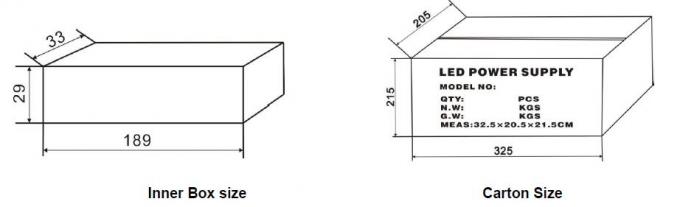

    PACKING INFORMATION:

    1. 1piece/inner box;

    2. 50pcs/carton
