    12vdc Switching Power Supply 2 Pin Connector For 3 Distribution Connector

    Ask Lasest Price
    Model Number : CL-60-12VP-C and CL-60-24VP-C
    Certification : UL, CE, ROHS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Delivery Time : 10~25days
    • Product Details
    • Company Profile

    12vdc Switching Power Supply 2 Pin Connector For 3 Distribution Connector

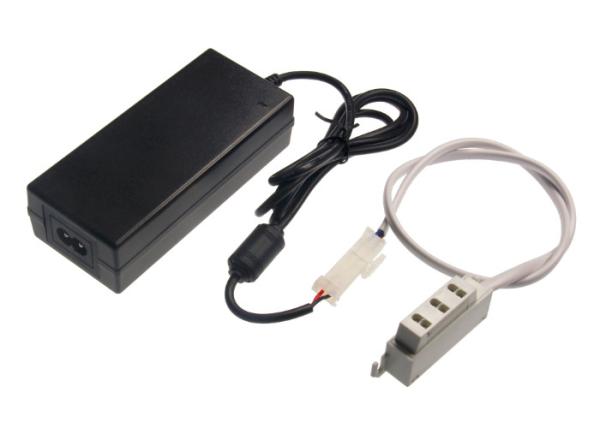

    CL-60-12VP-C and CL-60-24VP-C 110 - 240V LED Power Supply with 5.5mm DC jack or 2-pin Connector for 3 distribution connector


    Features and Benefits:
    ● Non-PFC, complete protections
    ● Economical medium to high power models with safety certificate;
    ● Protections: Short circuit/Overload/over voltage/over temperature
    ● Cooling by free air convection
    ● 100% full load burn-in test
    ● LED indicator for power on
    ● Low cost, high reliability
    ● Suitable for dry locations only
    ● Output Voltage 12V and 24VDC are usually used for linear strip or linear bar;
    ● Pass CE,ROHS,UL
    ● 2 Years warranty


    Technical Specification:

    Oupt power range24V2.5A (also have those models for selection)
    size(Small Size)114*50*30mm,(Big Size)120*53*32mm
    Input Rated Voltage100Vac~240Vac,50Hz~60Hz
    Input Currentless than 0.5A
    Input Inrush Currentless than 50A
    Efficiency80%(MIN)at Rated Voltage
    DC Output Voltage24V± 5% (option)
    DC Output Current2.5A (option)
    DC Output Power60W (optional)
    Leakage Currentless than 5mA
    Standby powerless than 0.5w
    DC connector5.5*2.1*10mm (optional)
    DC cable1.5m 2464UL 22AWG cable (optional)
    Ripple and NoiseLess than 120Mv at full road with 20MHz bandwidth
    Turn On Delay Timeless than 3S (AC:110V and full load)
    CertificatesCE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS1
    SafetyUL, cUL, FCC, GS, CE, EMC, CB , ErP, SAA, C-tick, MEPSKC,SPE,NOM
    Dielectric VoltageA IEC320 three pin input---output(FG)3000Vac one minute
    Safety protection

    output voltage protection (150%-180% rated output current),

    output current protection (150%-180% rated output current),

    short current protection

    Operating Temperature-10°C - +45°C
    Storage Temperature-20°C - +40°C
    Safety StandardEN60950-1 UL60950-1 ESD (EN61000 3-3)
    CAS (60950 ITE/TE) FCC Part 15 subpart B Class B, ISO 9001: 2008
