85 - 264VAC Input Mean Well SE-100 series 100W Switching Power Supply UL Listed

Ask Lasest Price
Brand Name :	Meanwell
Model Number :	SE-100
Certification :	CE, ROHS, UL Listed
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100000 pcs per month
Delivery Time :	3 ~ 20 Days

Add to Cart

Product Details
Company Profile

85 - 264VAC Input Mean Well SE-100 series 100W Switching Power Supply UL Listed

85 - 264VAC Input Mean Well SE-100 series 100W Switching Power Supply UL Listed

● Non-PFC, complete protections
● Economical medium to high power models with safety certificate;
● AC input range selectable by switch
● Protections: Short circuit/Overload/over voltage/over temperature
● Cooling by free air convection
● Withstand 300VAC surge input for 5 second
● Buit-in constant current limiting circuit
● 100% full load burn-in test
● LED indicator for power on
● Fixed switching frequency at 90KHz
● Low cost, high reliability
● Output Voltage 12V and 24VDC are usually used for linear strip or linear bar;
● Compliants: CE,ROHS,UL,CB,CCC
● 2 Years warranty

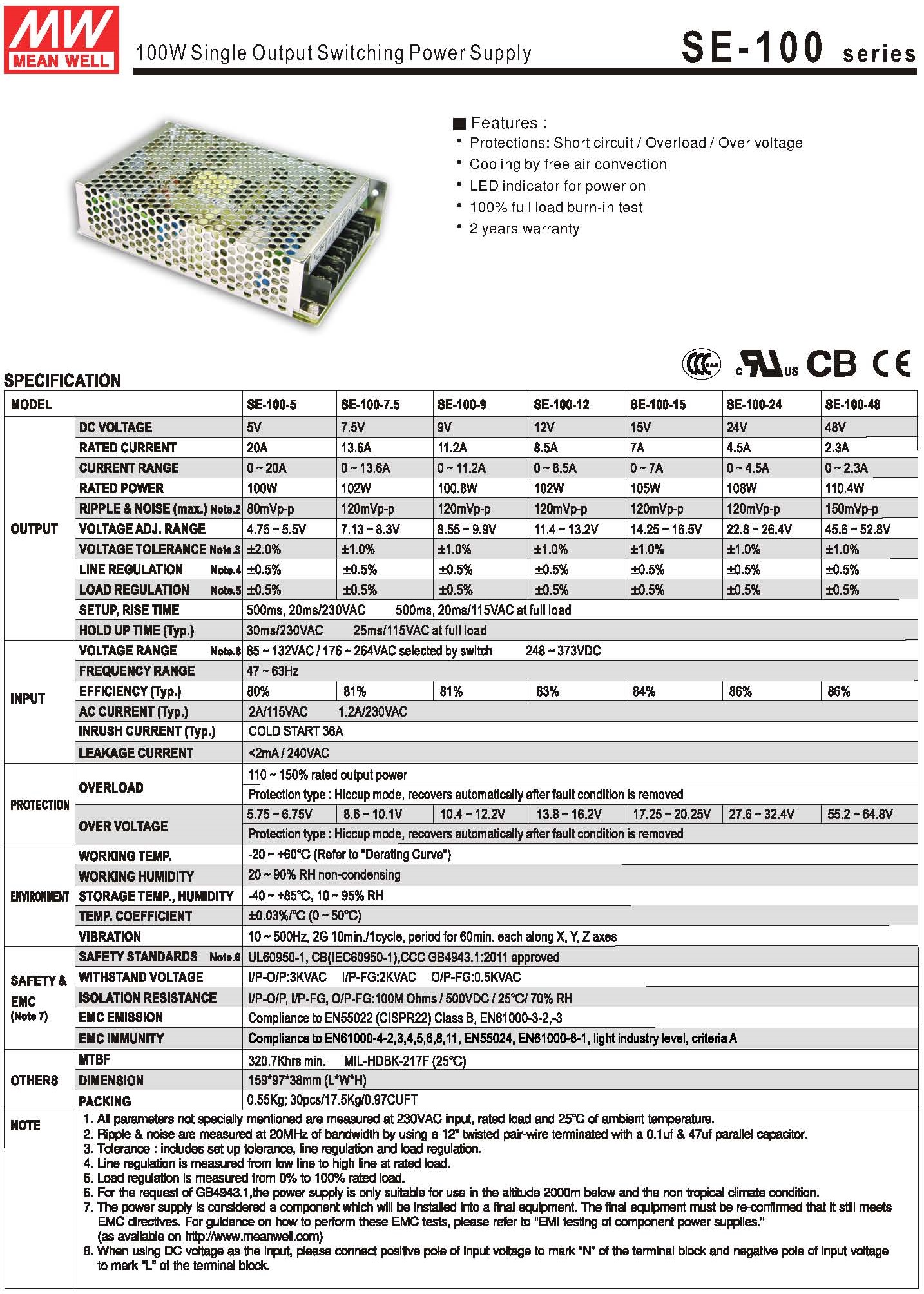

MODEL		SE-100-5	SE-100-12	SE-100-15	SE-100-24	SE-100-48
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	48V
	RATED CURRENT	20A	13.6A	7A	4.5A	2.3A
	CURRENT RANGE	0~20A	0~8.5A	0~7A	0~4.5A	0~2.3A
	RATED POWER	100W	102W	105W	108W	110.4W
	RIPPLE&NOISE(max.) Note.2	80mVp-p	120mVp-p	120mVp-p	120mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	4.75~5.5V	11.4~13.2V	14.25~16.5V	22.8~26.4V	45.6~52.8V
	VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%	±1.0%	±1.%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP,RISE TIME	500ms, 20ms/230VAC ,500ms, 20ms/115VAC at full load
	HOLD UP TIME(Typ.)	30ms/230VAC 25ms/115VAC at full load
INPUT	VOLTAGE RANGE	85~132VAC/176~264VAC selected by SW 248~373VDC
	FREQUENCY RANGE	47~63Hz
	EFFICIENCY (Typ.)	80%	83%	84%	86%	86%
	AC CURRENT (Typ.)	2A/115VAC ,1.2A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVERLOAD	11~150% rated output power
	OVERLOAD	Protection type:shut down o/p voltage, re-power on to recovery
	OVER VOLTAGE	5.75~6.75V	13.8~16.2V	17.25~20.25V	27.4~32.4V	55.2~64.8V
	OVER VOLTAGE	Protection type:shut down o/p voltage, re-power on to recovery
	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-10~+60℃ (Refer to "Derating Curve")
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85℃, 10~95% RH
	TEMP. COEFFICIENT	±0.05% / ℃ (0~50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY	SAFTY STANDARDS	UL60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC /25℃ / 70% RH
OTHERS	MTBF	200K hrs min. MIL-HDBK-217 (25℃)
	DIMENSION	1599738MM (LWH)
	PACKING	0.55Kg: 30PCS/17.5Kg/0.95CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation.
