B4TA1257 B4TA1218 12 * 2 W Modern Design LED Fountain Ring Light , LED Waterproof Lights For Fountain

Ask Lasest Price
Brand Name :	COMI Lighting
Model Number :	B4TA1257(Single Color), B4TA1218(RGB)
Certification :	CE, RoHs, SAA, PSE, ETL
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	10000pcs per month
Delivery Time :	3~14 working days (Very large order, please inquire separately)

Add to Cart

Product Details
Company Profile

B4TA1257 B4TA1218 12 * 2 W Modern Design LED Fountain Ring Light , LED Waterproof Lights For Fountain

B4TA1257(Single Color) and B4TA1218(RGB) 12pcs 2W or 3W IP68 Central Ejective Dry Land LED Fountain Lights with Dia. Φ200mm Front Cover

Completely stainless steel SUS 316# housing & accessory

The COMI Lighting FOUNTAIN RING B4TA Or B4TB is conceived for underwater illumination of fountains and water gardens.

● Dimmable, automatic colour change, DMX 512, DALI, 1-10 V controllable
● Completely stainless steel SUS 316# housing & accessory
● This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).And install underwater less than 1 meter depth.

Material specifications:

Housing	Stainless Steel 316# Housing
Front Cover	Stainless steel 316#
Waterproof seal	EPDM gasket
Glass	Tempered glass. T=10mm

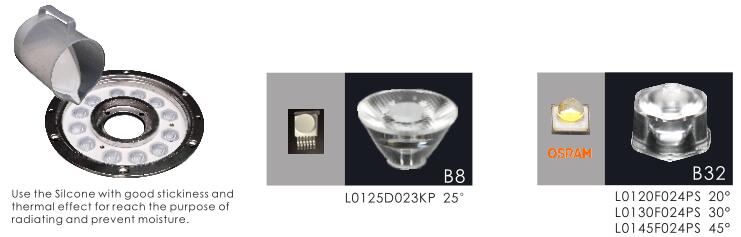

Lens	Optical lens efficiency≥85%
Cable gland	IP-68 PG-11 copper and nickel coated
Gasket	Glass and housing are silicone sealed
LED	Single color LED, Multi RGB color power LED
PCB	Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
Driver	Constant current output Single color LED=1-circuit output RGB 3in1 LED=4-circuit output
Application environment	Temperature of water between -20℃~40℃ less than 1 meter depth.
Power cable	H07RN-F 2X1.0mm^2 L=3m (for Single color) H07RN-F 4X1.0mm^2 L=3m(for RGB)

General Information:

Item No.

Light source

Degree

(Θ 1 / 2 )

Input

voltage

(V)

Typical

operating

current (mA)

Typical

consumption

(w)

Typical

luminance

(lm)

rate

B4TA1257

12×2W

Single Color

24VDC

1200

28.8

Cool white=2067

Warm white=1610

B4TA1218

12×3W

RGB Color

24VDC

R=400

G=500

B=500

33.6

726

Note:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately.

Dimensional Drawing(Units:mm)

Dimensional Drawing(mm):

Application:
