C4SL0616 C4SL0618 6 * 2 W Asymmetrical LED Underwater Linear Lighting with Mounting Sleeve , Recessed LED Pool Lights

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	C4SL0616, C4SL0618
Certification :	CE, ROHS
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	3 ~18days

Add to Cart

Product Details
Company Profile

C4SL0616 C4SL0618 6 * 2 W Asymmetrical LED Underwater Linear Lighting with Mounting Sleeve , Recessed LED Pool Lights

[C4SL0616, C4SL0618] 24V 6 * 2W 45°|30° Asymmetrical Light Output Wall Recessed LED Linear Underwater Fountain Pool Lights Made of SUS316 Stainless Steel IP 68 Waterproof

The COMI Lighting Underwater LINEAR series is designed for underwater integration and offers various design possibilities in architectural illumination. it is dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by power supplies+controllers. It is simplified install by PVC plastic mounting sleeve(included).

Features and Benefits:

1. Linear underwater light: Rectangle 316 stainless steel front cover and lamp housing;

2. Working voltage: low voltage 24VDC safe to use;

3. 6pcs 2W or 3W high power LED with high lumen output

4. High voltage version is with internal driver (old version is external driver)

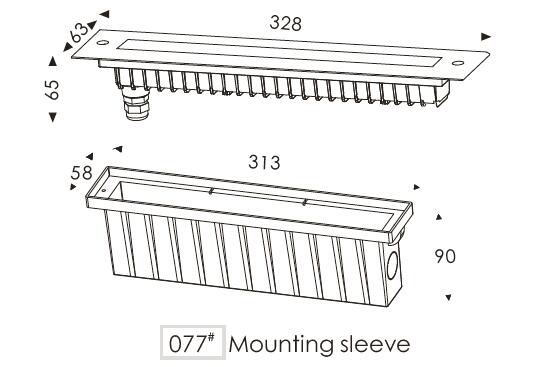

5. PVC mounting sleeve and easy install

7. Asymmetrical light distribution output

Material specifications:

Housing:	Molding shaped SUS316 stainless steel housing
Front Plate:	Stainless steel SUS 316L#

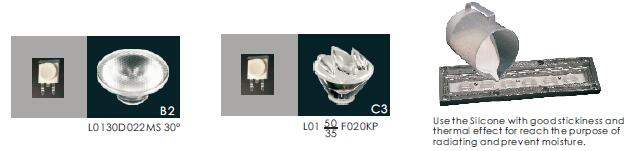

Lens	Symmetrical optical lens, efficiency≥85%
Glass	Step tempered glass. T=9mm
Cable gland:	IP-68 PG-9 PVC
Gasket:	EPDM Gasket
PCB	Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk
LED:	Osram or Cree High Power LED
Driver:	Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output
Operating temperature:	-20℃~40℃
Application environment	Temperature of water between -20℃~40℃, less than 1 meter depth.
Power cable:	H05RN-F 2X1.0mm² L=0.5m(low voltage) H05RN-F 4X0.75mm² L=0.5m(for 24VDC RGB)
Mounting sleeve:	PVC

Technical Information:

Item No.

Light source

Lens Type

Beam

Angle

(°)

Input

voltage

(V)

Typical operating

current (mA)

Typical

consumption

(w)

Typical

Luminance

(lm)

IK
rate

C4SL0616

6×2W

Osram LED

45°|30°

24VDC

470

11.3

Cool white=605
Warm white=520

C4SL0618

6×3W

3-in-1 RGB

LED

45°|30°

24VDC

R=120
G=250
B=250

288

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
