6W or 9W Asymmetrical Outdoor LED Inground Lighting , IP67 LED Wooden Floor Lamp

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	FC2XBS0357, FC2XBS0318 (RGB)
Certification :	CE, ROHS, ETL, ISO9001: 2008
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000 pcs per month

Add to Cart

Product Details
Company Profile

6W or 9W Asymmetrical Outdoor LED Inground Lighting , IP67 LED Wooden Floor Lamp

FC2XBS0357, FC2XBS0318 (RGB) 24VDC or 110 - 240VAC 6W 9W ( 3 * 2W or 3W ) Asymmetrical Square Embeded LED Wooden Underground Light Outdoor Rated IP67 Waterproof

Features and Benenfits:

1. Square 116mm*116mm front cover made of SUS316 stainless steel;

2. Full area Glass pressure capacity 3370KGs;

3. Low voltage 24V or high voltage 110 - 240VAC input for options;

4. 3370KGs full area Glass pressure capacity

5. Included remote IP67 waterproof LED Driver (Internal driver can be customized made)

6. Outdoor rated IP67 waterproof level and IK08

Material specifications:

Housing:	12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B.
Front Plate:	Stainless steel SUS 316L#
Glass pressure capacity	Full area=3370kgs
Lens	Optical lens, efficiency≥85%
Glass	Step tempered glass. T=8mm
Cable gland:	IP-67 PG-9 PVC
Gasket:	Tooling shaped silicone seal
PCB	Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk
LED:	Osram or Cree High Power LED
Driver:	Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output
Operating temperature:	-20℃~40℃
Power cable:	H05RN-F 2X1.0mm² ,L=0.5m(low voltage) H05RN-F 3X1. 0mm² ,L=0.5m(high voltage) H05RN-F 4X0.75mm² ,L=0.5m(for 24VDC RGB)
Mounting sleeve	No mounting Sleeve

Technical Information:

Item No.	Light source	Degree (Θ 1 / 2 )	Input voltage (V)	Typical operating current (mA)	Typical consumption (w)	Typical luminance (lm)	IK rate
FC2XBS0357	3×2W	45°\|35°	24VDC Or 120 /240	24V=220 240V=46	24V=5.3 240V=5.9	Cool white=452 Warm white=388	08
FC2XBS0318	3×2W RGB 3IN1 Full color	45°\|35°	24VDC	R=100 G=135 B=133	8.8	197	08

Notes:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately.

Dimensional Drawing (Units:mm):

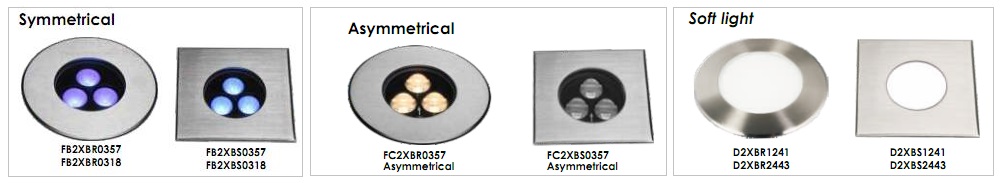

Relative Family Products:

Item No.	Light source	Degree (Θ 1 / 2 )	Input voltage (V)	Typical operating current (mA)	Typical consumption (w)	Typical luminance (lm)	IK rate
FB2XBR0357 FB2XBS0357	3×2W	20	24VDC Or 120 /240	24V=220 240V=46	24V=5.3 240V=5.9	Cool white=452 Warm white=388	08
FB2XBR0318 FB2XBS0318	3×2W RGB 3IN1 Full color	30	24VDC	R=100 G=135 B=133	8.8	197	08
FC2XBR0357 FC2XBS0357	3×2W	45°\|35°	24VDC Or 120 /240	24V=220 240V=46	24V=5.3 240V=5.9	Cool white=327 Warm white=287	08
D2XBR1241 D2XBS1241	12×Single Color	-	24VDC 240	24V=34 240V=17	24V=0.8 240V=1.2	CCool white=20 Warm white=13	08
D2XBR2443 D2XBS2443	24×RGBW (6R 6G 3B 6W)	-	24VDC 120/240	R=17 G=18 B=17 W=17	1.7	6.6	08
