D2XAS0657, D2XAS0618(RGB)​ 24V 110 - 240V 1 * 2W 3W LED Square Cover Underground Wooden Floor Lights with Frosted Lens and External Driver


COMI Lighting D2XA Series LED recessed wooden light is a decorative point of light equiped print white or frosted glass with smooth soft beam light output and suitable for integration in floors, ceilings,walls or stairs indoors and outdoors.DC 12-24V version can be dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by power supplies or controller. Very low mounting depth and very simplied install by clips into cut wooden floor hole directly.



Features and Benefits:
1. Remote linked External cylinder-shaped IP67 Waterproof LED driver,120V/240V/24V&RGB 24V input;
2. Minimum space for external driver is diameter 48mm
3. SUS316 Stainless steel square front cover
4. Aluminum lamp housing helps heat dissipation
5. Easy to install by spring and mount under wooden floor perfectly
6. IP67 waterproof and IK08
7. Cut out: dia. 42mm

8. Print white or frosted glass with 120° smooth soft beam light output



Material specifications:

Techinical specifications:

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.

Dimensional Drawing (Units:mm)

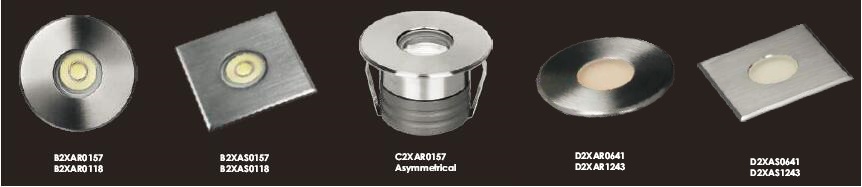

Family Products:

Notes:
1. Single color: Warm White(3000~3500K), Neutral White(4000~4500K), Cool White (6000~6500K), Red, Green, Blue and etc;
2. Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
3. Specification and availability are subjected to change without notice.
