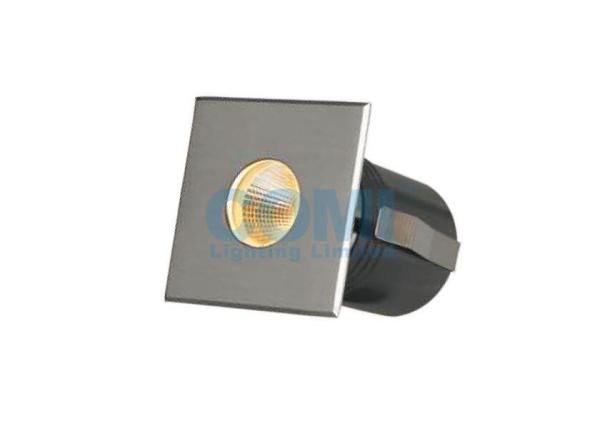

R2IS0125 ​ 24VDC or 110 -240VAC 1 * 5W IP67 Small Type COB LED Inground Light Square Front Ring 500LM

Features and Benefits:

1. COB LED as its light source

2. Small size lamp body dia. 70(Front Ring)*H82mm*Dia52mm(housing), or Square 66*66mm (Front ring) *H82mm*Dia52mm(housing);

3. Install by Spring and PVC mounting sleeve(included)

4. Square or round front ring made of Stainless steel SUS 316L# and lamp housing made of Die-casting aluminum;

5. 7mm thickness Step tempered glass Light Window, Full area=633kgs Glass pressure capacity.

Material Specification:

Housing: 12# Die-casting grey powder coated aluminum.

T=60-80µm Adhesion of ISO class 1/ASTM class 4B
Front ring: Stainless steel SUS 316L#
Light Window: Step tempered glass.T=7mm
Glass pressure capacity: Full area=633kgs
Reflector: Optical Reflector efficiency≥90%
Cable gland: IP-68 PG-9 PVC
LED: Multi chip on board LED
PCB: Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w /mk
Driver: Constant current output
Operating temperature: -20℃~40℃
Power cable: H05RN-F 2×1.0mm² L=0.5M (low voltage)
H05RN-F 3×1.0mm² L=0.5M (high voltage)
Mounting sleeve: 065# PVC
