IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output

    Buy cheap IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output from wholesalers

    Buy cheap IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output from wholesalers
    • Buy cheap IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output from wholesalers
    • Buy cheap IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output from wholesalers
    • Buy cheap IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output from wholesalers

    IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output

    Ask Lasest Price
    Brand Name : COMI LIGHTING
    Model Number : FD2XCR3607,FD2XCR3615 (RGB)
    Certification : CE, ROHS, ETL , PSE, ISO9001: 2008
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000pcs per month
    Delivery Time : 5 ~ 15 Working Days
    • Product Details
    • Company Profile

    IP67 Design Dimmable In Ground Landscape Lighting Soft Light 120 Degree Output

    FD2XCS3607,FD2XCS3615 (RGB) 24VDC or 110 - 240VAC 2835 or 5050 LED Frosted / Milky Lens Square Inground Wooden Floor Light


    Features and Benefits:

    1. SMD2835 or 5050 3-in-1 RGB LED as light source;

    2. Soft Beam Light 120degree output

    3. Front plate made of 316 stainless steel and housing made of aluminum;

    4. With remote external IP67 LED Driver (Internal LED driver can be available)

    5. Outdoor rated IP67 design

    6. Full area Glass pressure capacity 1687KGs;

    7. Cut hole diameter 156mm and install by spring;


    Material specifications:

    Housing:12# Die-casting aluminum grey powder coated T=60-80µm.
    Adhesion of ISO class 1/ASTM class 4B.
    Front Plate:Stainless steel SUS 316L#
    Glass pressure capacityFull area=1687kgs
    GlassStep tempered glass. T=8mm
    Cable gland:IP-67 PG-9 PVC
    Gasket:Moding shaped silicone seal
    PCBExcellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk
    LED:Osram or Cree SMD Low Power LED
    Operating temperature:-20℃~40℃
    Power cable
    H05RN-F 2X1.0mm² L=0.5m(low voltage)
    H05RN-F 3X1. 0mm² L=0.5m(high voltage)
    H05RN-F 5X0.5mm² L=0.5m(for 24VDC RGBW)
    With Waterproof Connector
    Mounting sleeveNo

    Technical Information:

    Item No.Light source
    Degree
    (Θ 1 / 2 )
    Input
    voltage
    (V)
    Typical
    operating
    current (mA)
    Typical
    consumption
    (w)
    Typical
    luminance
    (lm)

    IK

    rate

    FD2XCS0657

    36pcs×2835

    SMD LED

    -
    24VDC Or
    120 /240
    24V=100
    240V=29
    24V=2.4
    240V=3.1
    Cool white=51
    Warm white=42
    08
    FD2XCS0618

    12pcs×5050

    SMD 3-in-1

    LED

    -24VDC
    R=35
    G=35
    B=36
    3.12408
    Notes:
    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
    2. Specification and availability are subjected to change without notice.
    3. For more detail specification in PDF, please contact us separately.
    Dimensional Drawing (mm):
    6 * 2W LED 45° | 35° Asymmetrical Inground Light Diameter 173 mm Front Cover
    6 * 2W LED 45° | 35° Asymmetrical Inground Light Diameter 173 mm Front Cover
    6 * 2W LED 45° | 35° Asymmetrical Inground Light Diameter 173 mm Front Cover 6 * 2W LED 45° | 35° Asymmetrical Inground Light Diameter 173 mm Front Cover
    6 * 2W LED 45° | 35° Asymmetrical Inground Light Diameter 173 mm Front Cover

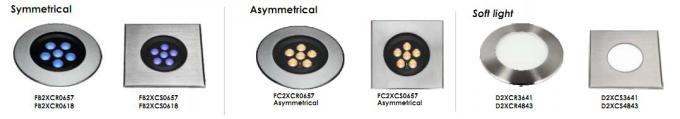

    Relative Family Products:
    6 * 2W LED 45° | 35° Asymmetrical Inground Light Diameter 173 mm Front Cover

    Item No.Light source
    Degree
    (Θ 1 / 2 )
    Input
    voltage(V)
    Typical operating
    current (mA)
    Typical
    consumption(w)
    Typical
    luminance (lm)
    IK rate
    FB2XCR0657
    FB2XCS0657
    6×2W20
    24VDC Or
    120 /240
    24V=541
    120V=111
    240V=64
    24V=13
    1 20V=13.5
    240V=13.7
    Cool white=956
    Warm white=783
    08
    FB2XCR0618
    FB2XCS0618
    6×2W
    RGB 3IN1
    Full color
    3024VDC
    R=221
    G=257
    B=253
    17.550708
    FC2XCR0657
    FC2XCS0657
    6×2W45/35
    24VDC Or
    120 /240
    24V=541
    1 20V=111
    240V=64
    24V=13
    1 20V=13.5
    240V=13.7
    Cool white=757
    Warm white=613
    08
    D2XCR3641
    D2XCS3641
    36×Single Color-
    24VDC
    240
    24V=100
    240V=29
    24V=2.4
    240V=3.1
    CCool white=51
    Warm white=42
    08
    D2XCR4843
    D2XCS4843
    48×RGBW
    (12R 12G 12B 12W)
    -
    24VDC
    120/240
    R=35 G=35
    B=36 W=35
    3.42408
    Note:
    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
    2. Specification and availability are subjected to change without notice.
    3. For more detail specification in PDF, please contact us separately.
