    24V Cree / Sharp COB LED Landscape Spot Lights Cool White With Hood Low Voltage

    Ask Lasest Price
    Brand Name : COMI LIGHTING
    Model Number : R3BQB0128SH, R3BQM0128SH
    Certification : CE, ROHS, ETL, ISO9001: 2008
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000 pcs per month
    Delivery Time : 3 - 15 Working Days
    • Product Details
    • Company Profile

    24V Cree / Sharp COB LED Landscape Spot Lights Cool White With Hood Low Voltage

    R3BQB0128SH, R3BQM0128SH​ 24V or 110 - 240V 1 * 10 W COB LED Landscape Flood Spot Lights Spike Mounting


    Features and Benefits:
    1. Vertical and horizontal direction angle adjustable;
    2. Cree or BRIDGELUX COB type power LED as light source with high lumen output
    3. IP65 design for outdoor lighting
    4. Dimming control by DALI, PWM, 0 -10V

    5. Optional accessories hood


    Material specifications:

    Housing
    12 Die-casting grey powder coated aluminum .
    T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
    GlassTempered glass. T=4mm
    ReflectorOptical Reflector efficiency≥90%
    Cable glandIP-68 PG-9 copper and nickel coated
    GasketMolding shaped silicone double seal

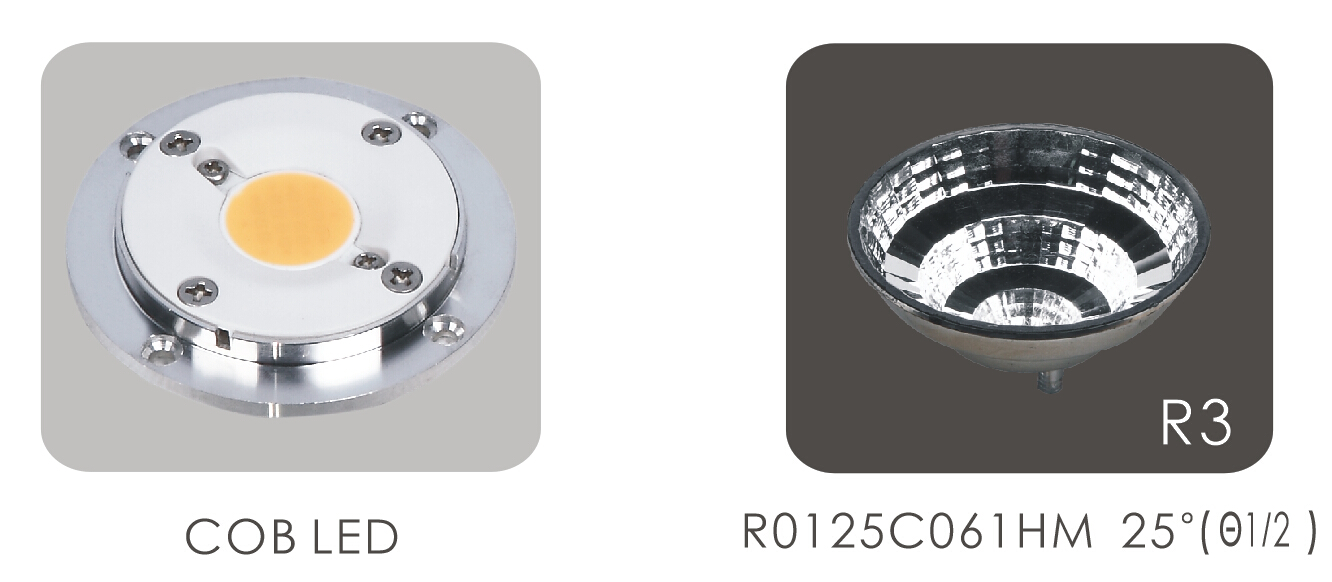

    LEDSHARP COB 10W
    PCBExcellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
    Driver
    Constant current output
    Single color LED=1-circuit output
    Operating temperature-20℃~40℃
    Power cable
    H05RN-F 2X1.0mm^2 L=2m (low voltage)
    H05RN-F 3X1.0mm^2 L=2m (high voltage)
    SpikePVC
    Mounting basePowder coated die-casting aluminum

    Technical Information:

    Item No.Light source
    Degree
    (Θ 1 / 2 )
    Input
    voltage
    (V)
    Typical operating
    current (mA)
    Typical
    consumption
    (w)
    Typical
    luminance
    (lm)

    IK

    rate

    R3BQM0128SH

    (Round Base)

    1×10W
    SHARP COB
    25
    24VDC Or
    120 /240
    24V=411
    120V=88
    240V=48
    24V=9.8
    120V=10.5
    240V=10.5
    Cool white=685
    Warm white=674
    05

    R3BQB0128SH

    (Spike)

    1×10W
    SHARP COB
    25
    24VDC
    120/240
    24V=411
    120V=88
    240V=48
    24V=9.8
    120V=10.5
    240V=10.5
    Cool white=685
    Warm white=674
    05
    Note:
    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
    2. Specification and availability are subjected to change without notice.
    3. For more detail specification in PDF, please contact us separately.
