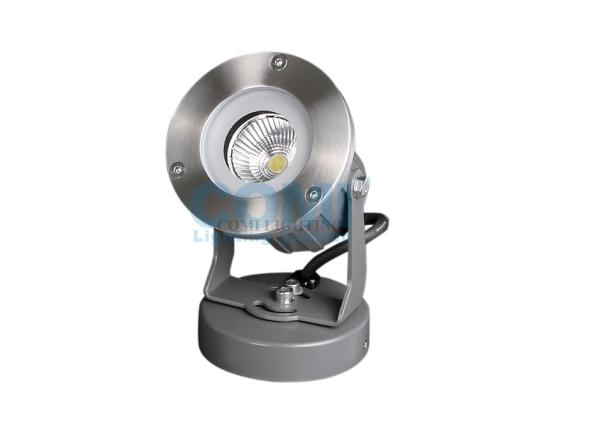

10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance

    Buy cheap 10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance from wholesalers

    Buy cheap 10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance from wholesalers
    • Buy cheap 10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance from wholesalers
    • Buy cheap 10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance from wholesalers
    • Buy cheap 10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance from wholesalers

    10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance

    Ask Lasest Price
    Brand Name : COMI LIGHTING
    Model Number : R3FUM0126
    Certification : CE, RoHS, ETL
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000 pcs per month
    Delivery Time : 3 - 15 Working Days
    • Product Details
    • Company Profile

    10W COB High Luminance LED Landscape Flood Spot Lights Long Shooting Distance

    R3FUM0126 24VDC or 110 - 240VAC 1 * 6W or 10W COB LED High Luminance Landscape Spotlights Install by Round Base Rated IP65 Waterproof



    Features and Benefits:
    1. Vertical and horizontal direction angle adjustable;
    2. Cree or BRIDGELUX COB type power LED as light source with high lumen output
    3. IP65 design for outdoor lighting
    4. Dimming control by DALI, PWM, 0 -10V


    Material specifications:

    Housing
    12 Die-casting grey powder coated aluminum .
    T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
    Front CoverStainless steel (SUS 304 , 316 optional)
    BracketPowder coated aluminum
    GlassTempered glass. T=4mm
    ReflectorOptical Reflector efficiency≥90%
    Cable glandIP-68 PG-9 PVC
    GasketTooling shaped seal
    LEDCree or BRIDGELUX COB type power LED
    PCBExcellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
    DriverConstant current output
    Operating temperature-20℃~40℃
    Power cable
    24V:L=2.0M H05RN-F 2×1.0mm^2
    100/240V: L=2.0M H05RN-F 3×1.0mm^2
    SpikePVC
    Mounting base12 Die-casting grey powder coated aluminum




    General Information:

    Item No.Light source
    Degree
    (Θ 1 / 2 )
    Input
    voltage(V)
    Typical operating
    current (mA)
    Typical
    consumption(w)
    Typical
    luminance (lm)
    IK rate
    R3FUB0126
    (Ground Spike)
    1×6W
    BRIDGELUX COB
    40
    24VDC Or
    120 /240
    24V=270
    120V=110
    240V=60
    24V=6.5
    120V=7.6
    240V=7.6
    Cool white=409
    Warm white=349
    04
    R3FUM0126
    (Round Base)
    1×6W
    BRIDGELUX COB
    40
    24VDC
    120/240
    24V=270
    120V=110
    240V=60
    24V=6.5
    120V=7.6
    240V=7.6
    Cool white=409
    Warm white=349
    04
    Note:
    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
    2. Specification and availability are subjected to change without notice.
    3. For more detail specification in PDF, please contact us separately.
    Dimensional Drawing (Units:mm)
