3 * 1 W LED Inground Light High humidity , Acid , Alkali Site Dedicated Outdoor Rated IP67

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	B2XDR0356, B2XDR0305(RGB)
Certification :	CE, RoHs
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000 pcs per month
Delivery Time :	5 - 15 Working Days

Add to Cart

Product Details
Company Profile

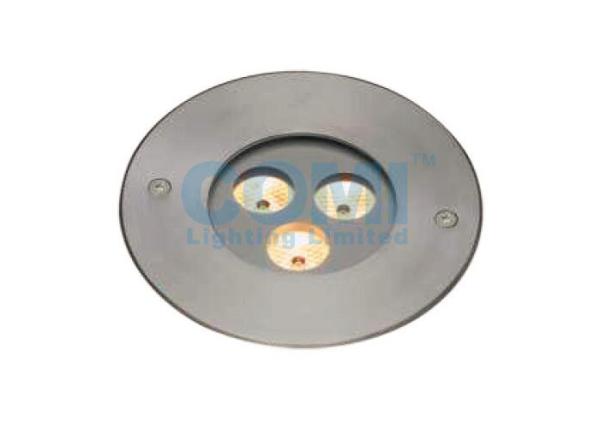

3 * 1 W LED Inground Light High humidity , Acid , Alkali Site Dedicated Outdoor Rated IP67

B2XDR0356, B2XDR0305(RGB) 24VDC or 110 - 240VAC 3 * 1 W LED Symmetrical High humidity, Acid, Alkali Site Dedicated Inground Lights Outdoor Rated IP67

Features and Benefits:

1. Molding shaped SUS 316L housing&front cover, High humidity, Acid, Alkali Site Dedicated Inground Lights;

2. Symmetrical Light Distribution

Material Specificaiton:

Front cover&Housing: Molding shaped sus 316L stainless steel
Gasket: EPDM gasket
Glass: Step tempered glass. T=8mm
Glass pressure capacity: Full area=2612kgs
Cable gland: IP-68 PG-11 PVC
Waterproof seal: Molding shaped silicone seal
PCB: Excellent heat conductivity aluminum,coefficient of Heat Conductivity≥2.0w/mk
Driver: Constant current output ,Single color LED=1-circuit output
Application environment: Between -20℃~40℃
Power cable: H05RN-F 2X1.0mm2 L=0.5m (for single color)
H05RN-F 4X0.75mm2 L=0.5m (for RGB)
Mounting sleeve: PVC 058#

Technical Information:

Item No.

Light

source

Lens

Degree

(Θ 1 / 2 )

Input

voltage

(V)

Typical

operating

current (mA)

Typical

consumption

(w)

Typical

luminance

(lm)

rate

B2XDR0356

3×1W

B32

20°

24VDC

150

3.6

Cool white=322
Warm white=250

B2XDR0305

3×1.5W
RGB 3in1
Full color

25°

24VDC

R=50
G=72
B=72

4.6

118

Notes:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately.

Dimensional Drawing (Units:mm)

Family Products:

Item No.	Light source	Lens	Degree (Θ 1 / 2 )	Input voltage (V)	Typical operating current (mA)	Typical consumption (w)	Typical luminance (lm)	IK rate
B2XDR0356	3×1W	B32	20°	24VDC	150	3.6	Cool white=322 Warm white=250	08
B2XDR0305	3×1.5W RGB 3in1 Full color	B8	25°	24VDC	R=50 G=72 B=72	4.6	118	08
C2XDR0356	3×1W	C8	45°\|45°	24VDC	150	3.6	Cool white=322 Warm white=250	08

Notes:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately.
