    B4SL0616 B4SL0618 C4SL0616 24V 6 * 2W IP68 LED Linear Underwater Swimming Pool Wall Washer Lights

    Ask Lasest Price
    Brand Name : COMI Lighting
    Model Number : B4SL0616, B4SL0618, C4SL0616
    Certification : CE, RoHs
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Delivery Time : 3-15 Working Days
    • Product Details
    • Company Profile

    B4SL0616 B4SL0618 C4SL0616 24V 6 * 2W IP68 LED Linear Underwater Swimming Pool Wall Washer Lights

    B4SL0616, B4SL0618, C4SL0616 24VDC 6 * 2 W LED IP68 Wall Recessed LED Linear Underwater Wall Washer Pool Lights

    Completely stainless steel SUS 316# housing & Front Plate and PVC mounting Sleeve


    The Underwater Light 4SL06 is a swimming pool-rated linear type wall washer luminaire, and one of COMI Lighting’s most popular luminaires. It is constructed entirely of 316 marine grade stainless steel, and the use of Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture ,and makes the lamp with IP68 Waterproof rating and can be submersable into water less than 1meter in depth. The use of LED allows for the creative introduction of color and improved energy efficiency. It is easy to install into the pre-installed PVC Mounting Sleeve.


    Features and Benefits:

    1. Linear type swimming pool-rated underwater wall washer luminaire;

    2. Wall recessed/ embedded installation type;

    3. Easy to be installed into the PVC mounting sleeve;

    4. The use of Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture;

    5. Constructed entirely of 316 marine grade stainless steel for lamp body and front plate;

    6. IP 68 waterproof and submersion depth less than 1meter;


    Material specifications:

    HousingMolding Shape Stainless Steel Housing 316#
    Front PlateStainless Steel Housing 316#
    Waterproof sealEPDM gasket
    GlassTempered glass. T=9mm
    Lenssymmetrical or asymmetrical Optical Lens, efficiency≥85%
    Cable glandIP-68 PG-11 copper and nickel coated
    GasketGlass and housing are silicone sealed
    LEDSingle color LED, Multi RGB color power LED
    PCBExcellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
    Driver
    Constant current output
    Single color LED=1-circuit output
    RGB 3in1 LED=3-circuit output
    Application environment

    Temperature of water between -20℃~40℃;

    Installed Less than 1 meter depth in the water.

    Mounting SleevePVC Mounting Sleeve
    Power cable
    H07RN-F 2X1.0mm² L=3m (for Single color)
    H07RN-F 4X1.0mm² L=3m(for RGB)

    Technical Specification:

    Item No.Light source
    Degree
    (Θ 1 / 2)
    Input
    voltage
    (V)
    Typical operating
    current
    (mA)
    Typical
    consumption
    (w)
    Typical
    luminance
    (lm)
    IK rate

    B4SL0616

    (Symmetrical

    Light)

    1×2W
    Single Color
    25°24VDC55013.2
    Cool white=760
    Warm white=660
    08

    B4SL0618

    (Symmetrical

    Light)

    1×3W
    RGB
    3-in-1 Color
    30°24VDC
    R=84
    G=128
    B=128
    18.515208

    C4SL0616

    (Asymmetrical

    Light)

    1×2W
    Single Color
    45°|35°24VDC55013.2
    Cool white=760
    Warm white=660
    08
    Note:
    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
    2. Specification and availability are subjected to change without notice.
    3. For more detail specification in PDF, please contact us separately

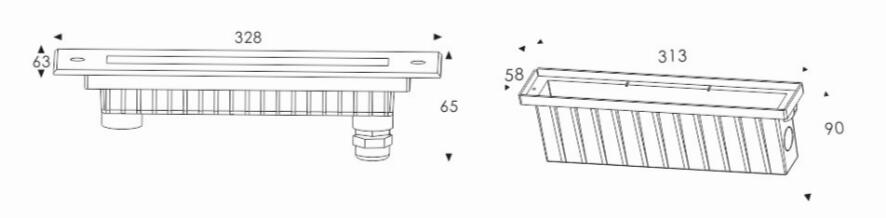

    Dimensional Drawing(mm):
    12V or 24V 3W RGB Small Size LED Underwater Pool Lights Asymmetrical Light Distribution
