24V ( or 12V) 9W High Power LED Underwater Pool Lights Mono or Multi Color with Asymmetrical Light Output

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	C4X0302, C4X0306 (RGB)
Certification :	CE, ROHS
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100,000pcs per month
Delivery Time :	3~15 working days

Add to Cart

Product Details
Company Profile

24V ( or 12V) 9W High Power LED Underwater Pool Lights Mono or Multi Color with Asymmetrical Light Output

C4X0302, C4X0306 (RGB) 3 * 2W 7W or 9W ( RGB ) Asymmetrical High Power LED Recessed Underwater Pool Lights

Warning:
This high-power LED housing is all stainless steel, must be installed underwater staying cold to prevent from burning too hot.

Features and Benefits:
1. Asymmetrical light distribution: adopts 45°|35° Asymmetrical optic lens ;
2. Uses 3pcs 2W Osram/Cree/citizen brand LED or 3W 3-in-1 RGB LED as light source;
3. Loading capacity: Exert force area of ø10 =770kgs,Ø30=1600kgs ø60=1860kgs;
4. This LED underwater pool lighting fixture is made of Molding shaped SUS 316 stainless steel, and Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
5. IP68 total Waterproof and can be submersable into water less than 1meter in depth;
6. It is convenient to install by pre-installation PVC mounting sleeve(included).

Material specifications

Front cover&Housing	Molding shaped sus 316L# stainless steel housing
Gasket	EPDM gasket
Glass	Step tempered glass. T=8mm
Loading Capacity	Exert force area of ø10 =770kgs Ø30=1600kgs ø60=1860kgs
Lens	Optical lens, efficiency≥85%
LED	TO Type power LED
Cable gland	IP-68 PG-11 copper with nickel-coated
Waterproof Seal	Molding shaped silicone seal
PCB	Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk
Driver	Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output
Application environment:	Temperature of water between -20℃~40℃, less than 1 meter depth.
Power cable	H07RN-F 2X1.0mm^2 L=3m (for Single color) H07RN-F 4X1.0mm^2 L=3m (for RGB)
Mounting sleeve	PVC with IP68 cable & conduit gland

Technical Information:

Item No.

Light Source

Lens

Beam

Angle

Input

Voltage

(V)

Typical

Operating

Current(mA)

Typical

Power

(W)

Typical

Luminance

(lm)

IK
Rate

C4X0302

3*2W Osram

45°|35°

24VDC

300

7.2

Cool White=310

Warm White=270

C4X0306

3*3W 3-in-1

RGB Full Color

45°|35°

24VDC

R=87

G=142

B=145

R=71
G=108
B=30

3 * 2W 9W RGB High Power LED Recessed Underwater Light for Swimming Pool

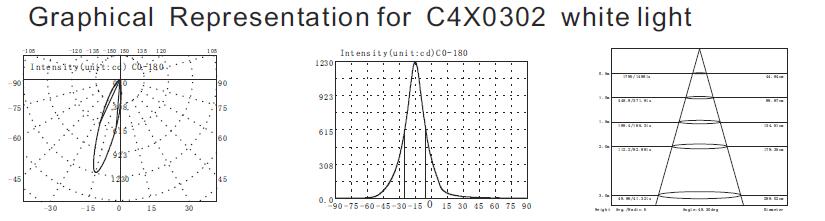

Dimensional Drawing(mm):
