B4X0302 B4X0306 3 * 2W or 3W LED Underwater Swimming Pool Lights 7W or 9W and 10Degree Beam Angle

Ask Lasest Price
Brand Name :	COMI LIGHTING
Model Number :	B4X0302, B4X0306(RGB)
Certification :	CE, ROHS
Payment Terms :	T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability :	100,000 pcs per month
Delivery Time :	5~15 working days

Add to Cart

Product Details
Company Profile

B4X0302 B4X0306 3 * 2W or 3W LED Underwater Swimming Pool Lights 7W or 9W and 10Degree Beam Angle

B4X0302, B4X0306(RGB) 3 * 2W 9W RGB High Power LED Recessed Underwater Light for Swimming Pool

Features and Benefits:
1. 24VDC working voltage, safe to use;
2. Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture;
3. Built-in Radiator helps prolong lifespan of LEDs;
4. Made of molding 316 Stainless Steel resistant to corrosio;
5. IP68 Waterproof, can be submersed and installed into water, depth less than 1meter;

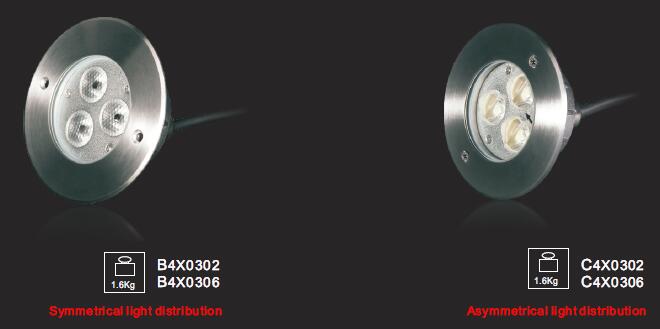

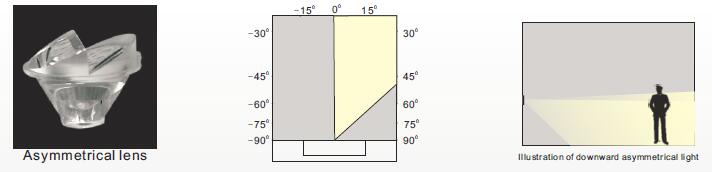

6. Optional lens: Symmetrical or asymmetrical lens;
7. Easy to install by Recessed PVC mounting Sleeve (included).

Warning:
Must be installed underwater to prevent the light from burning up because of over-heating.

Material specifications

Front cover&Housing	Molding shaped sus 316L# stainless steel housing
Gasket	EPDM gasket
Glass	Step tempered glass. T=8mm
Loading Capacity	Exert force area of ø10 =770kgs Ø30=1600kgs ø60=1860kgs
Lens	Optical lens, efficiency≥85%
Cable gland	IP-68 PG-11 copper with nickel-coated
Waterproof Seal	Molding shaped silicone seal
PCB	Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk
Driver	Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output
Application environment:	Temperature of water between -20℃~40℃, less than 1 meter depth.
Power cable	H07RN-F 2X1.0mm^2 L=3m (for Single color) H07RN-F 4X1.0mm^2 L=3m (for RGB)
Mounting sleeve	PVC with IP68 cable & conduit gland

Technical Information:

Item No.

Light Source

Lens

Beam

Angle

Input

Voltage

(V)

Typical

Operating

Current(mA)

Typical

Power

(W)

Typical

Luminance

(lm)

IK
Rate

B4X0302

3*2W Osram

B32

24VDC

300

7.2

Cool White=310

Warm White=270

B4X0306

3*3W 3-in-1

RGB Full Color

24VDC

R=87

G=142

B=145

R=71
G=108
B=30

Dimensional Drawing(mm):
