    6 * 2W Decorative Recessed Mount Linear Step Light , LED Stair Lights CE / RoHs Approved

    Ask Lasest Price
    Brand Name : COMI Lighting
    Model Number : C1DL0657, C1DL0618 (RGB)
    Certification : CE, RoHs
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000PCS per month
    Delivery Time : 3 - 15 Working Days
    • Product Details
    • Company Profile

    6 * 2W Decorative Recessed Mount Linear Step Light , LED Stair Lights CE / RoHs Approved

    C1DL0657, C1DL0618 (RGB) 24V 110 - 240V 6*2W Outdoor Rated IP65 or IP67 Asymmetrical Recessed LED Linear Step / Stair / Wall Washer Light with Mounting Sleeve


    The COMI Lighting WALL LIGHT D1FL-Series is designed for wall or step integration and offers various design possibilities in architectural illumination.With 24VDC or 110-240VAC input, and the low voltage 24VDC versions can be dimmable or DMX 512, DALI, 1-10 V controllable by power supplies,drivers or controllers. C1FL06 is with Asymmetrical light output which is Simplified install by PVC plastic mounting sleeve(included).


    Material Specification:

    Housing:12'' Die-casting aluminum, T=20-25μm.
    Adhesion of ISO class 1/ ASTM class 4B high temperature painting
    Front CoverStainless steel SUS 316#
    Light Source:6pcs Osram/ Cree/ Citizen/ Edison High Power LED
    Glass:Step temper glass .T=8mm.
    Cable gland:IP-67 PG-9 PVC
    Gasket:Tooling shaped seal
    Operating temperature:-20℃~40℃
    Driver:Low & High Input-Voltage,Constant current output
    Operating Temperature:20℃-40℃
    Power Cable:H05RN-F 3X1.0mm²L=0.5m (High Voltage)
    H05RN-F 2X0.75mm² L=0.5m (Low Voltage)
    H05RN-F 4X0.75mm² L=0.5m (RGB,low voltage)
    Mounting Sleeve:PVC 077# Plastic Mounting Sleeve
    Input voltage:24VDC or 110~240VAC,50/60Hz
    IP Rating:IP65 or IP67 options
    Certificates:CE, RoHs

    General Information

    Item Number

    Light

    Source

    Lens
    Degree
    (°)θ1/2

    Lens

    Type

    Input

    Voltage
    (V)

    Typical
    Operating

    Current
    (mA)

    		Typical
    Consumption
    (W)    		Typical
    Luminance
    (lm)

    IK

    Rate

    C1FL06576×2W45°|35°C1124V DC
    120/240
    24V=110
    120V=40
    240V=26
    		24V=10.5
    120V=11.8
    240V=12.1    		Cool white=875
    Warm white=570    		08
    C1FL06186×2
    3-in-1 RGB
    Full Color    		45°|35°C1124V DCR=200
    G=250
    B=250
    17
    340
    		08

    Notes:
    1. Single color: Warm White(3000~3500K), Neutral White(4000~4500K), Cool White (6000~6500K), Red, Green, Blue and etc;
    2. Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
    3. Specification and availability are subjected to change without notice.


    Please View Test Report here>> C1FL0357 IP65 Asymmetrical Recessed LED Stair and Wall Lamp Test Report


    Dimensional Drawing(Units:mm):





    Family Related Products:

    Part

    Number

    		Light SourceColorLensLens Degree
    (Θ1/2)    		Input Voltage

    Typical Operating Current

    (mA)

    		Typical Consumption
    (W)    		Typical luminance
    (lm)

    IK

    Rating

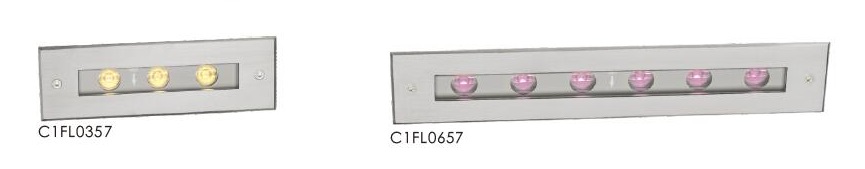

    C1FL03573×2W
    Osram or Cree LED    		Single ColorC1145°|35°24VDC
    120/240    		24V=400
    120V=100
    240V=58    		24V=5.6
    120V=6.3
    240V=6.7    		Cool white=400
    Warm white=285    		08
    C1FL03183×3W
    RGB 3in1
    Full color    		RGBC1145°|35°24V DCR=70
    G=150
    B=150    		7.218008
    C1FL06576×2W
    Osram or Cree LED    		Single ColorC1145°|35°24VDC
    120/240    		24V=110
    120V=40
    240V=26    		24V=10.5
    120V=11.8
    240V=12.1    		Cool white=875
    Warm white=570    		08
    C1FL06186×2W
    RGB 3in1
    Full color    		RGBC1145°|35°24V DCR=200
    G=250
    B=250    		1734008

    Note:
    1. Single color: Warm White(3000~3500K), Neutral White(4000~4500K), Cool White (6000~6500K), Red, Green, Blue and etc;
    2. Specification and availability are subjected to change without notice.
