3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights

    Buy cheap 3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights from wholesalers

    Buy cheap 3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights from wholesalers
    • Buy cheap 3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights from wholesalers
    • Buy cheap 3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights from wholesalers
    • Buy cheap 3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights from wholesalers

    3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights

    Ask Lasest Price
    Brand Name : COMI Lighting
    Model Number : B1QS0102, B1QS0106 (RGB)
    Certification : CE, ROHS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100,000 pcs per month
    Delivery Time : 5 ~ 15 working days
    • Product Details
    • Company Profile

    3W IP65 Waterproof Wall / Ceiling RecessedLED Step Lights , LED Outdoor Stair Lights

    B1QS0102, B1QS0106 (RGB)​ 24VDC or 110-240VAC IP65 Asymmetrical Recessed LED Step Lights Square Front Plate Install by clips and PVC Mounting Sleeve (Included)


    Features and Benefits:

    1. Light downward ellipse Asymmetrical Light distribution

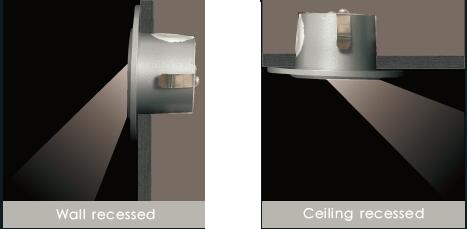

    2. Installation with clips and recessed into wooden hole directly

    3. Installation clips embedded into PVC mounting sleeve(included) and fix on the concrete wall

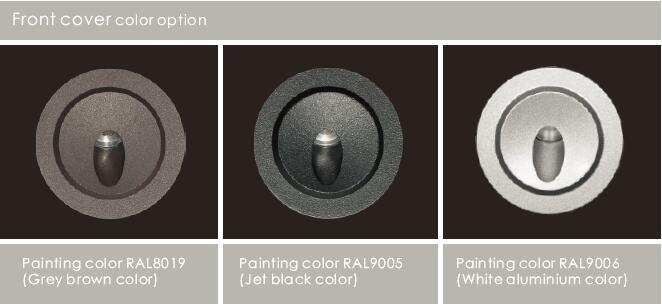

    4. Various color for options for front cover , standard color White aluminium , the other colors are available based on reasonable order quantities.

    5. Emitting color: Single color or RGB multipul Full color

    6. IP65 waterproof


    Material specifications:

    Housing
    12 Die-casting aluminum T=20-25μm.
    Adhesion of ISO class 1/ ASTM class 4B high temperature painting
    Light SourceEmitter type power LED
    DriverConstant current output
    Operating temperature-20℃~40℃
    Power cable
    H05RN-F 3X1. 0mm² L=0.3m(high voltage)
    H05RN-F 2X1. 0mm² L=0.3m(low voltage)
    InstallationPVC Mounting Sleeve included

    Technical Information:

    Item No.Light source
    Degree
    (Θ 1 / 2 )
    Input
    voltage
    (V)
    Typical operating
    current
    (mA)
    Typical
    consumption
    (w)
    Typical
    luminance (lm)
    		IK rate
    B1QS0102
    		1×3W80
    24VDC
    120/ 240
    24V=110
    120V=48
    240V=28
    24V=2.6
    120V=3.3
    240V=3.3
    Cool white=75
    Warm white=66
    		10

    B1QS0106

    1×3W

    RGB

    3-in-1

    		80
    24VDC
    		R=38
    G=53
    B=54
    24V=3.5
    50
    		10

    Note:
    1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue and etc;
    2. Specification and availability are subjected to change without notice.



    Outder Dimension (mm):





    Family Products:

    Item No.Light source
    Degree
    (Θ 1 / 2 )
    Input
    voltage
    (V)
    Typical operating
    current
    (mA)
    Typical
    consumption
    (w)
    Typical
    luminance (lm)
    		IK rate

    B1QR0102

    (Round)

    		1×3W80
    24VDC
    120/ 240
    24V=110
    120V=48
    240V=28
    24V=2.6
    120V=3.3
    240V=3.3
    Cool white=75
    Warm white=66
    		10

    B1QS0102

    (Square)

    1×3W

    		80
    24VDC
    120/ 240
    24V=110
    120V=48
    240V=28
    24V=2.6
    120V=3.3
    240V=3.3
    Cool white=75
    Warm white=66
    		10
